RN30R-KRSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )RHD

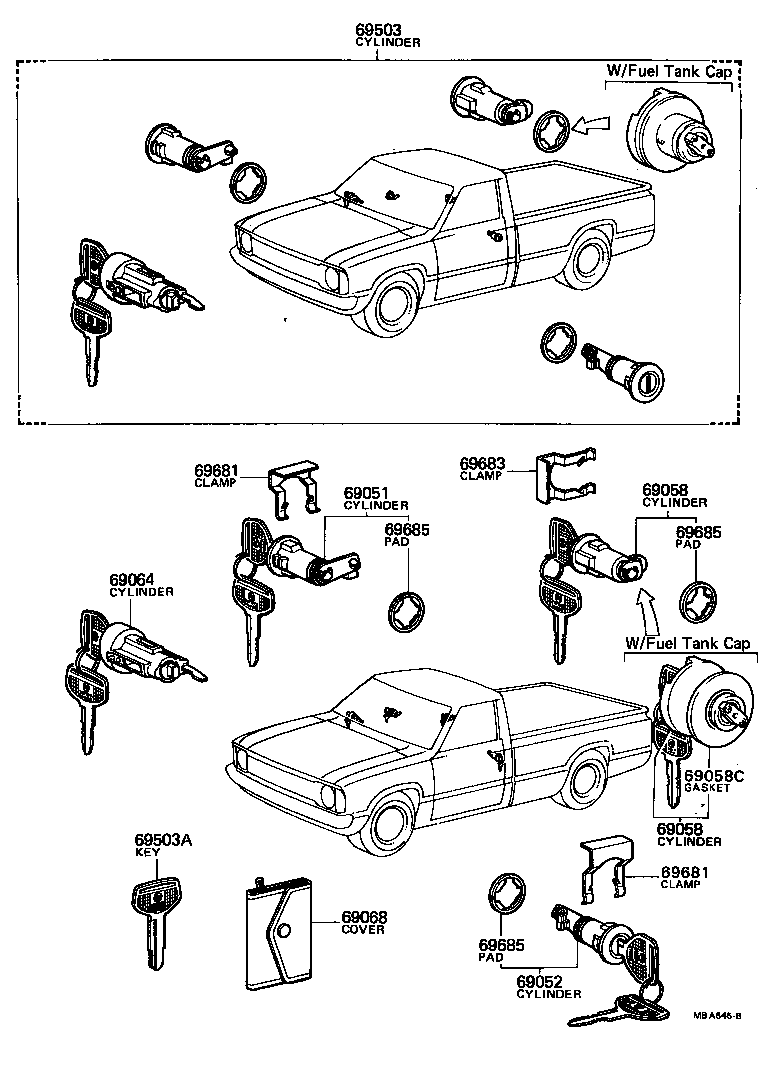

Click highlighted areas on diagram

diagram 69051 69052 69058 69058 69058C 69064 69068 69503 69503A 69681 69681 69683 69685 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-89106

LN3#,4#,RN3#,4#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-89106

LN3#,4#,RN3#,4#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-12011

LN3#,4#,RN3#,4#..ARL,EUR,GEN,SA

W/*STL

 1
69057-89101

LN3#,4#,RN3#,4#..STD

W/O *STL

 1
69068 - COVER SUB-ASSY, KEY
84041-89102

LN3#,4#,RN3#,4#

 1
69503 - CYLINDER SET, LOCK
69005-89111

LN30,40,RN30,40..SA

W/O *STL,W/FUEL TANK CAP

 1
69005-89108

LN30,4#,RN3#,4#..IV

W/*STL,W/O FUEL TANK CAP

 1
69005-89107

LN30,4#,RN3#,4#..STD..IV

W/O *STL & FUEL TANK CAP

 1
69005-89112

RN30,40..SA

W/*STL & FUEL TANK CAP

 1
69005-89111

RN30,40..SA

W/O *STL,W/FUEL TANK CAP

 1
69005-89112

LN30,40,RN30,40..SA

W/*STL & FUEL TANK CAP

 1
69503A - KEY, BLANK
90999-00066

LN3#,4#,RN3#,4#

MASTER KEY

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

 2
69681-20040

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

 2
69681-20040

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 2
69685 - PAD, LOCK CYLINDER
69685-12010

LN3#,4#,RN3#,4#

DOOR LOCK

 2
69685 - PAD, LOCK CYLINDER
69685-12010

LN3#,4#,RN3#,4#

DOOR LOCK

 2
69685 - PAD, LOCK CYLINDER
69685-12010

LN3#,4#,RN3#,4#

DOOR LOCK

 2
