RN30R-JRSN3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )T1

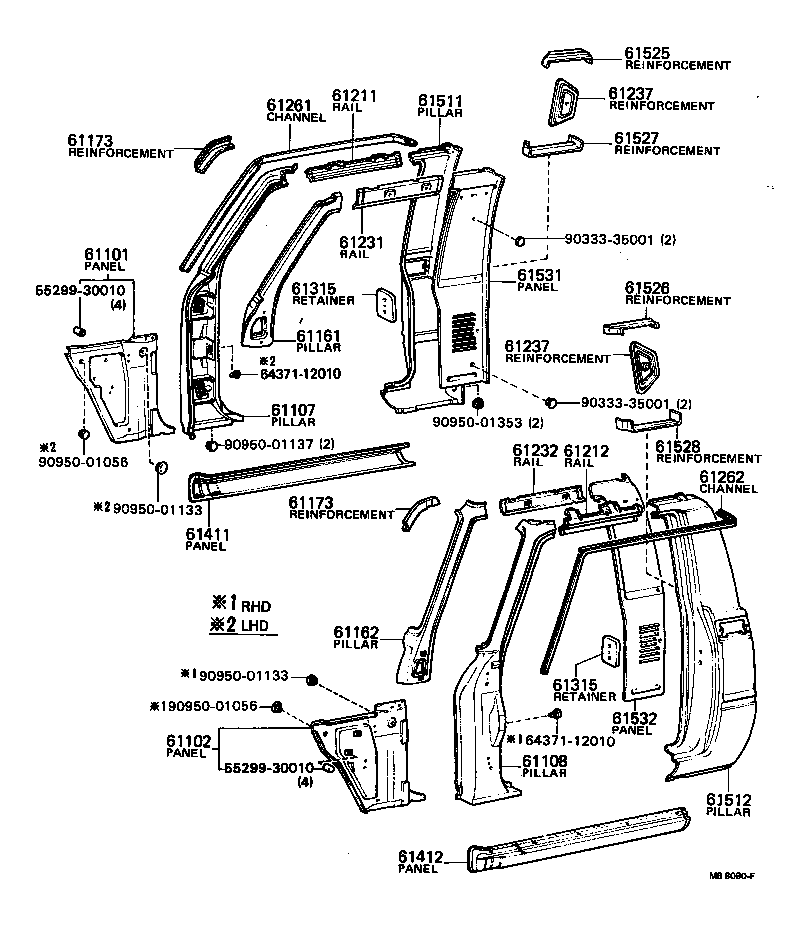

Click highlighted areas on diagram

diagram 5529930010 5529930010 61101 61102 61107 61108 61161 61162 61173 61173 61211 61212 61231 61232 61237 61237 61261 61262 61315 61315 61411 61412 61511 61512 61525 61526 61527 61528 61531 61532 6437112010 6437112010 9033335001 9033335001 9095001056 9095001056 9095001133 9095001133 9095001137 9095001353
Part # Description Qty Price
61101 - PANEL SUB-ASSY, COWL SIDE, RH
61101-89116

RN3#,4#..RHD..(EUR,GEN,SA)

 1
61101-89122

LN3#,4#..RHD;RN46..ARL..CBU

 1
61102 - PANEL SUB-ASSY, COWL SIDE, LH
61102-89113

RN30,31,40,41..RHD

 1
61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH
61027-89101

LN3#,4#,RN3#,4#..EUR,GEN,PHL,SA

 1
61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH
61028-89101

LN3#,4#,RN3#,4#..EUR,GEN,PHL,SA

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-89105

LN3#,4#,RN3#,4#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-89105

LN3#,4#,RN3#,4#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-89103

LN3#,4#,RN3#,4#..T1

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-89103

LN3#,4#,RN3#,4#..T1

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-89107

LN30,40,RN30,31,40,41..T1

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-89107

LN30,40,RN30,31,40,41..T1

 1
61237 - REINFORCEMENT, SAFETY BAND ANCHORAGE
61766-89101

LN30,40,RN30,31,40,41..RCB

 2
61237 - REINFORCEMENT, SAFETY BAND ANCHORAGE
61766-89101

LN30,40,RN30,31,40,41..RCB

 2
61261 - CHANNEL, ROOF DRIP, RH
61261-89102

LN30,40,RN30,31,40,41..RCB

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-89102

LN30,40,RN30,31,40,41..RCB

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-89101

LN3#,4#,RN3#,4#

 2
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61309-89101

LN3#,4#,RN3#,4#

 2
61411 - PANEL, ROCKER, OUTER RH
61411-89104

LN3#,4#,RN3#,4#

 1
61412 - PANEL, ROCKER, OUTER LH
61412-89104

LN3#,4#,RN3#,4#

 1
61511 - PILLAR, QUARTER LOCK, RH
61511-89106

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

 1
61512 - PILLAR, QUARTER LOCK, LH
61512-89110

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

 1
61531 - PANEL, BACK CORNER, INNER RH
61531-89107

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

 1
61532 - PANEL, BACK CORNER, INNER LH
61532-89107

LN4#,RN40,46..TW;LN30,40,RN30,31,40,41..RCB

 1
Common parts
55299-30010
64371-12010
90333-35001
90950-01056
90950-01133
90950-01137
90950-01353
