RN30R-JRS3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LN30,40,RN3#,4# ; (8103-8307)LN36,46..RHD

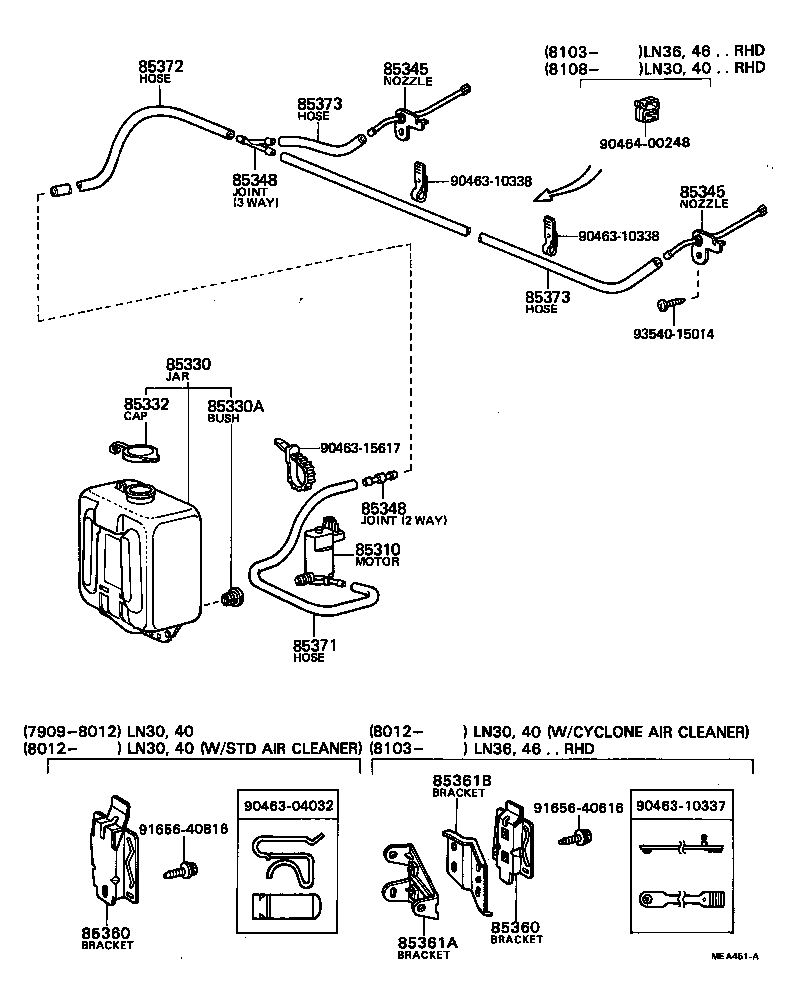

Click highlighted areas on diagram

diagram 85310 85330 85330A 85332 85345 85345 85348 85348 85360 85360 85361A 85361B 85371 85372 85373 85373 9046304032 9046310337 9046310338 9046310338 9046315617 9046400248 9165640616 9165640816 9354015014
Part # Description Qty Price
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-20100

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-89104

RN46..ARL..IV3;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41;RN46..EUR,GEN,ME,SA

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

RN46..ARL..IV3;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41;RN46..EUR,GEN,ME,SA

 1
85332 - CAP, WINDSHIELD WASHER JAR
85332-30050

RN46..ARL..IV3;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41;RN46..EUR,GEN,ME,SA

 1
85345 - NOZZLE, WINDSHIELD WASHER
85341-89104

LN3#,4#,RN3#,4#

 2
85345 - NOZZLE, WINDSHIELD WASHER
85341-89104

LN3#,4#,RN3#,4#

 2
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

RN46..ARL..IV3;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41;RN46..EUR,GEN,ME,SA

2 WAY

 2
85355-14010

LN3#,4#,RN3#,4#

3 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

RN46..ARL..IV3;LN46..T1..ARL..CBU;LN30,40,RN3#,40,41;RN46..EUR,GEN,ME,SA

2 WAY

 2
85355-14010

LN3#,4#,RN3#,4#

3 WAY

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90446-06013

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

L=450

 1
90446-06013

RN3#,40,41;RN46..EUR,GEN;RN46..ARL..IV3

*H,L=410

 1
90446-06013

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

*H,L=410

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-06013

RN46..EUR,GEN;RN46..ARL..IV3;LN30,40,RN3#,40,41

*H,L=700

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LN3#,4#,RN3#,4#

*H,L=100

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LN3#,4#,RN3#,4#

*H,L=100

 1
Common parts
90463-04032
90463-10337
90463-10338
90463-15617
90464-00248
91656-40616
91656-40816
93540-15014
