RN30R-JRS3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

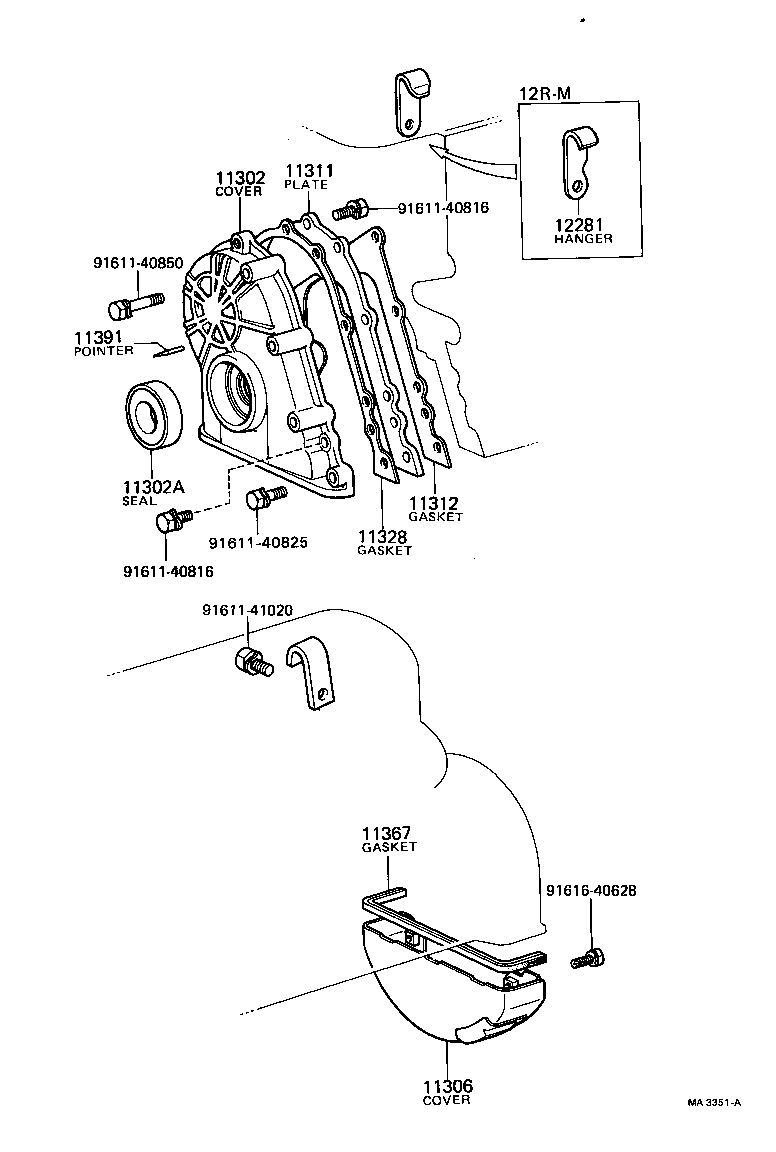

Click highlighted areas on diagram

diagram 11302 11302A 11306 11311 11312 11328 11367 11391 12281 9161140816 9161140816 9161140825 9161140850 9161141020 9161640628
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-31040

12R#..RN30,40

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

12R#..RN30,40

HTC 38.5 58 11

 1
11306 - COVER SUB-ASSY, FLYWHEEL HOUSING UNDER
11306-31030

12R#..RN30,40

 1
11311 - PLATE, FRONT END
11311-31010

12R#..RN30,40

 1
11312 - GASKET, FRONT END PLATE
11312-31010

12R#..RN30,40

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31010

12R#..RN30,40

 1
11367 - GASKET, FLYWHEEL HOUSING UNDER
11367-31020

12R#..RN30,40

 1
11391 - POINTER, TIMING
11391-31021

12R#..RN30,40

 1
12281 - HANGER, ENGINE, NO.1
12281-42010

12R..RN30,40

 1
Common parts
91611-40816
91611-40825
91611-40850
91611-41020
91616-40628
