RN30R-JRS (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

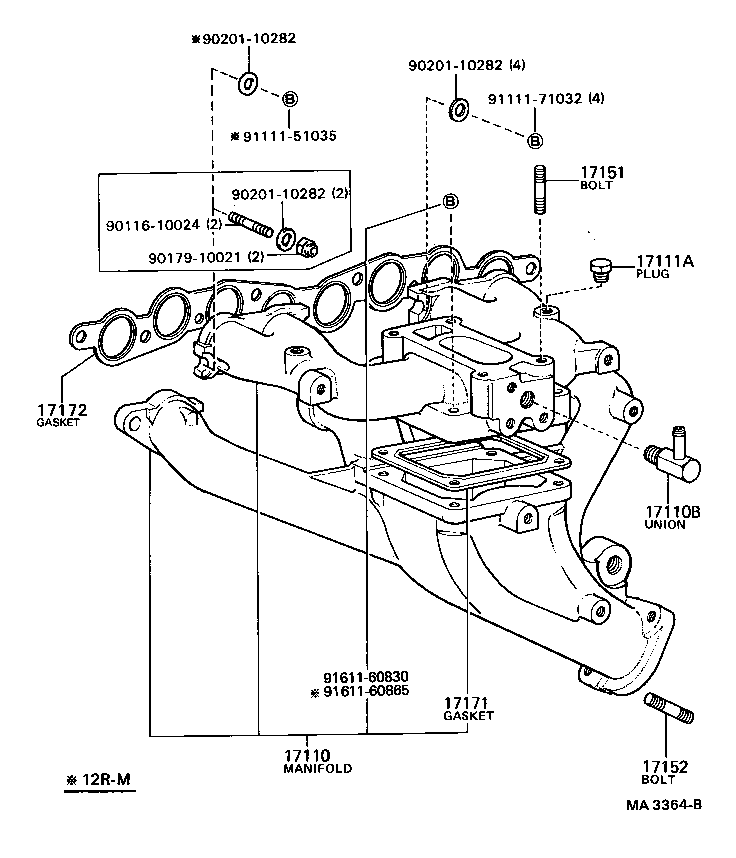

Click highlighted areas on diagram

diagram 17110 17110B 17111A 17151 17152 17171 17172 9011610024 9017910021 9020110282 9020110282 9020110282 9111151035 9111171032 9161160830 9161160865
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-31090

12R..RN30,40

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90407-09002

12R#..RN30,40

EXCL/NEW SOUTH WALES

 1
17111A - PLUG, NO.1
90345-51025

12R#..RN30,40

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08320

12R#..RN30,40

L=39,S=13&13

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

12R#..RN30,40

L=37,S=13&20

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-31020

12R..RN30,40

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-31021

12R..RN30,40

 1
Common parts
90116-10024
90179-10021
90201-10282
91111-51035
91111-71032
91611-60830
91611-60865
