RN30L-KRSM (1978)

Toyota Hilux

Production Aug 1978 - Jul 1983
Engine 12RM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

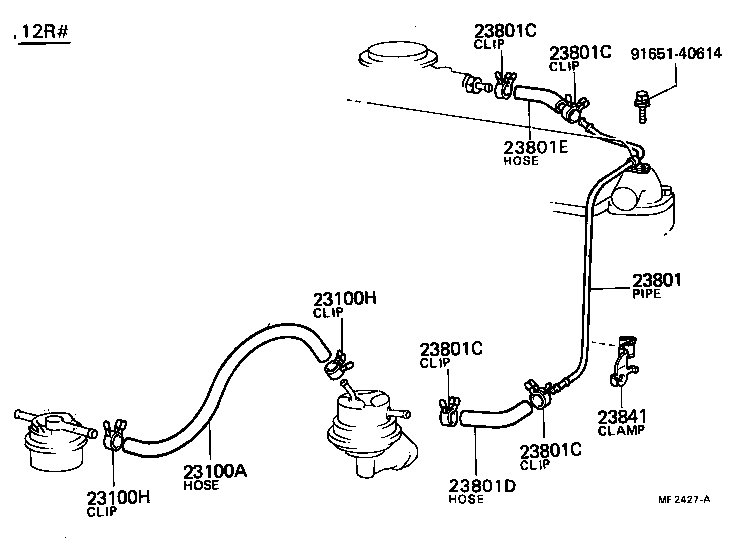

Click highlighted areas on diagram

diagram 23100A 23100H 23100H 23801 23801C 23801C 23801C 23801C 23801D 23801E 23841 9165140614
Part # Description Qty Price
23100A - HOSE, FUEL
95332-06028

12R#..RN30,40

L=280

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R#,18R..RN3#,4#

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

12R#,18R..RN3#,4#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-31061

12R#..RN30,40

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12001

12R#..RN30,40

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12001

12R#..RN30,40

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12001

12R#..RN30,40

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12001

12R#..RN30,40

 4
23801D - HOSE, FUEL PIPE, NO.1
95332-06010

12R#..RN30,40

*H,L=100

 1
23801E - HOSE, FUEL PIPE, NO.2
95332-06010

12R#..RN30,40

L=100

 1
23841 - CLAMP, FUEL PIPE(HOSE), NO.1
23841-31020

12R#..RN30,40

 1
Common parts
91651-40614
