RN30L-KRS3 (1978)

Toyota Hilux

Production Aug 1978 - Aug 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )12R#

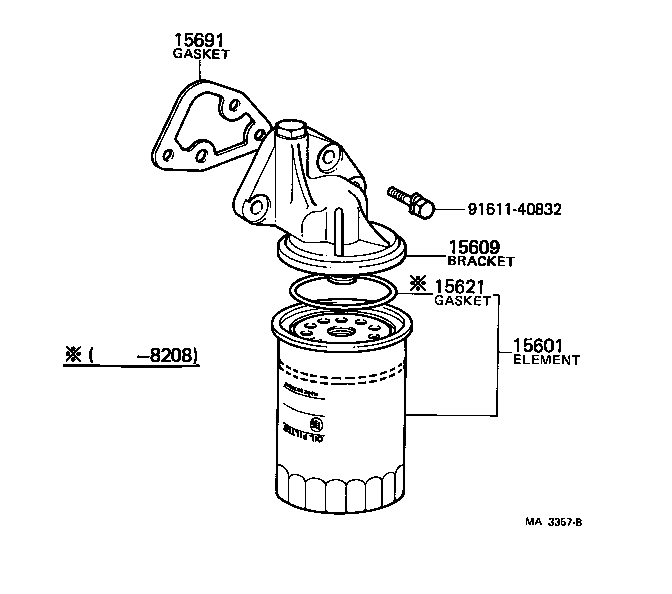

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9161140832
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15601-33020

12R#..RN30,40

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-31030

12R#..RN30,40

 1
15621 - GASKET, OIL FILTER BODY
15621-22010

18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA

 1
15691 - GASKET, OIL FILTER
15691-31010

12R#..RN30,40

 1
Common parts
91611-40832
