RN27-KD (1977)
Toyota Hilux
Production
Oct 1977
-
Jul 1978
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7711-7807)18R

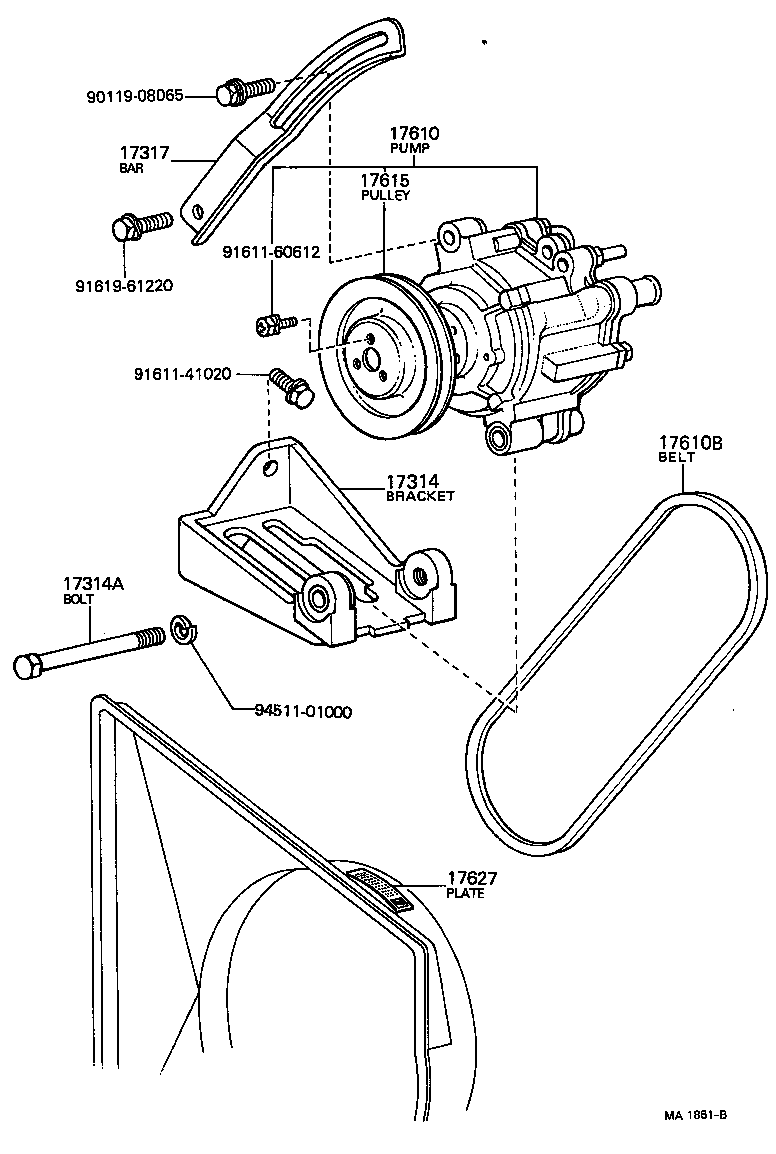

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17314 - BRACKET, AIR PUMP | ||||
| 17314-34020 |
18R..RN27 18RC |
1 | ||
| 17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING) | ||||
| 90101-10080 |
18R..RN27 18RC |
1 | ||
| 17317 - BAR, AIR PUMP ADJUSTING, NO.1 | ||||
| 17317-34020 |
18R..RN27 18RC |
1 | ||
| 17610 - PUMP ASSY, AIR | ||||
| 17610-34020 |
18R..RN27 18RC |
1 | ||
| 17610B - BELT, V(FOR AIR PUMP) | ||||
| 99521-10780 |
18R..RN27 18RC |
1 | ||
| 17615 - PULLEY(FOR AIR PUMP) | ||||
| 17615-34010 |
18R..RN27 18RC |
1 | ||
| 17627 - PLATE, AIR PUMP CAUTION, NO.1 | ||||
| 90917-07066 |
18R..RN27 18RC |
1 | ||
| Common parts | ||||
| 90119-08065 | ||||
| 91611-41020 | ||||
| 91611-60612 | ||||
| 91619-61220 | ||||
| 94511-01000 | ||||
