RN25L-KR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

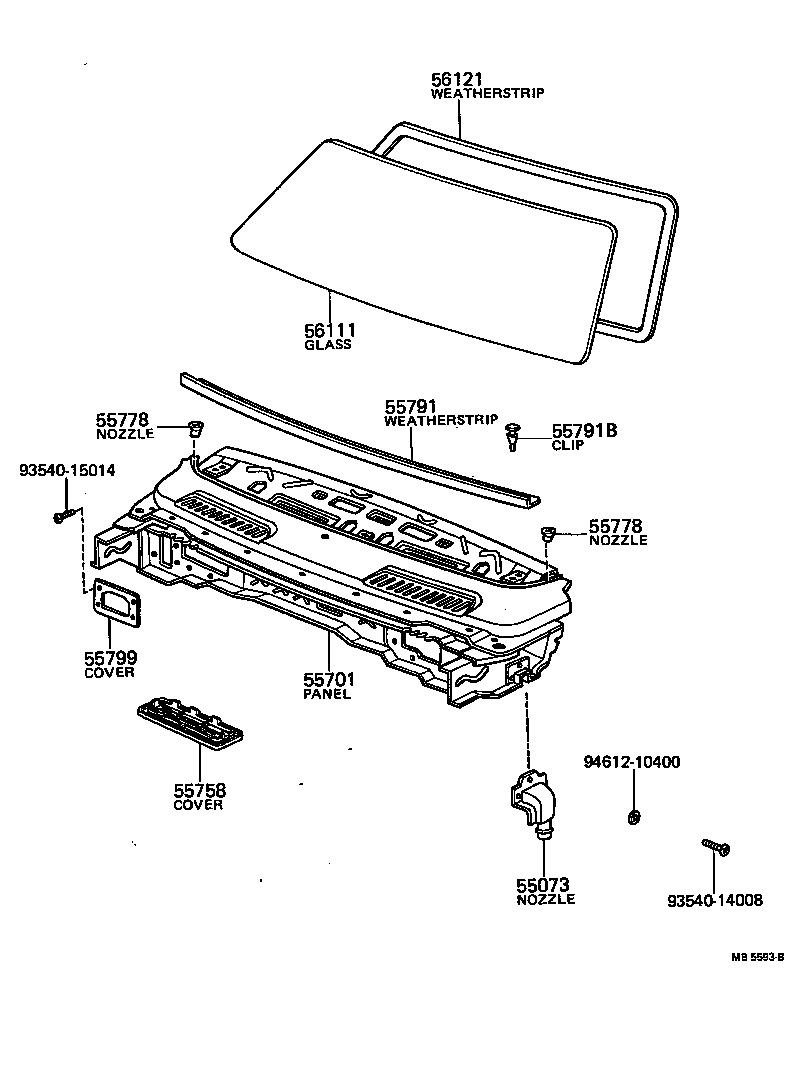

Click highlighted areas on diagram

diagram 55073 55701 55758 55778 55778 55791 55791B 55799 56111 56121 9354014008 9354015014 9461210400
Part # Description Qty Price
55073 - NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55073-20010

RN2#

 2
55701 - PANEL SUB-ASSY, COWL
55701-89102

RN20,25..LHD

 1
55701-89105

RN20,25..LHD

 1
55701-89106

RN20,22,25..LHD

 1
55758 - COVER, HEATER AIR DUCT
55759-89101

RN20,25

 1
55778 - NOZZLE, COWL WATER EXTRACT
55798-89102

RN2#

 2
55778 - NOZZLE, COWL WATER EXTRACT
55798-89102

RN2#

 2
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-89103

RN2#

 1
55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)
90467-07050

RN2#

 8
55799 - COVER, WIPER MOTOR
55071-20010

RN2#

 1
56111 - GLASS, WINDSHIELD
56111-89108

RN20,25

ZN.TP. T=5.0

 1
56111-89108

RN20,25,27

ZN.TP.

 1
56111-89110

RN2#

LM.T=6.7

 1
56111-89112

RN20,25

LM.T=5.7

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-89109

RN20,25

FOR L/MOULDING

 1
56121-89110

RN2#

FOR W/MOULDING

 1
Common parts
93540-14008
93540-15014
94612-10400
