RN25L-KR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

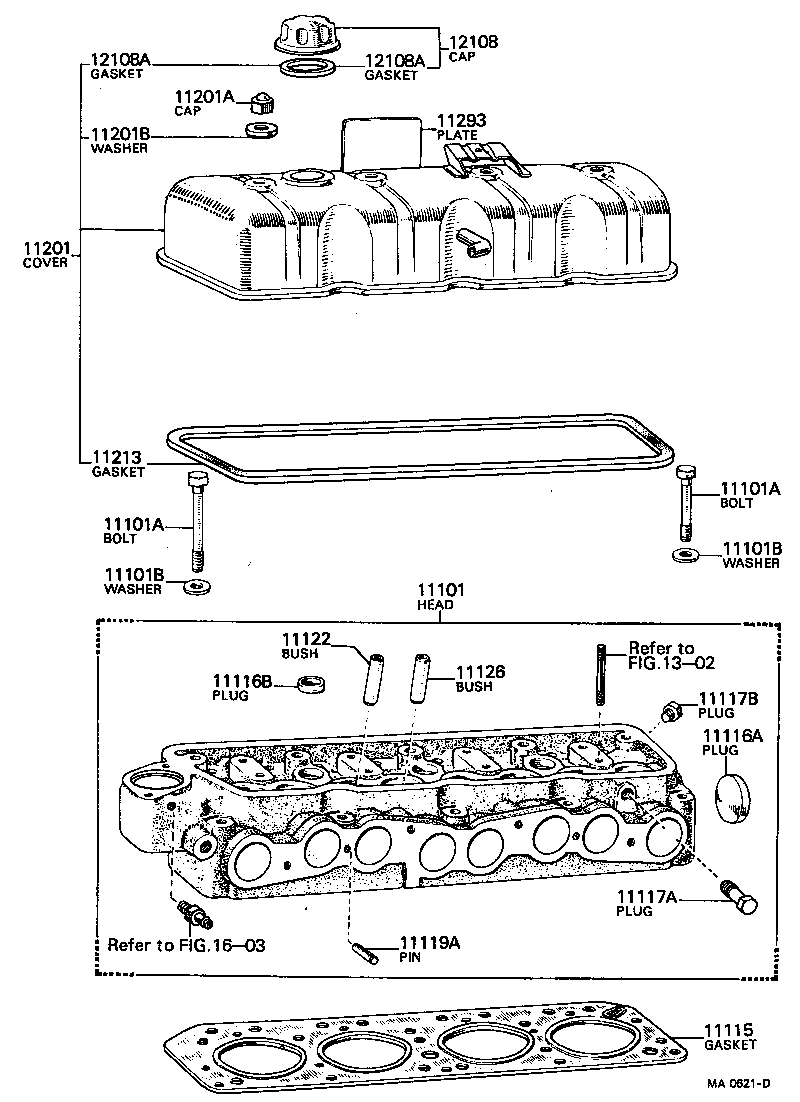

(7205-7208)

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11115 11116A 11116B 11117A 11117B 11119A 11122 11126 11201 11201A 11201B 11213 11293 12108 12108A 12108A 1302 1603
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39176

12R..RN20,25

 1
11101-39107

12R..RN2#

 1
11101-39175

12R..RN20,25

 1
11101-39106

12R..RN2#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02051

12R#..RN20,25

12-1.25PX100-24

 5
90910-02052

12R#..RN20,25

12-1.25PX86.5-24

 5
90910-02034

12R..RN2#

12-1.25PX100-24

 5
90910-02043

12R..RN2#

12-1.25PX86.5-24

 5
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02051

12R#..RN20,25

12-1.25PX100-24

 5
90910-02052

12R#..RN20,25

12-1.25PX86.5-24

 5
90910-02034

12R..RN2#

12-1.25PX100-24

 5
90910-02043

12R..RN2#

12-1.25PX86.5-24

 5
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12118

12R..RN2#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12118

12R..RN2#

 10
11115 - GASKET, CYLINDER HEAD
11115-31020

12R..RN20,25

 1
11115-31022

12R#..RN20,25

 1
11115-31023

12R#..RN20,25

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

12R#..RN20,25

OD=50

 1
90331-50015

12R..RN2#

OD=50

 1
11116B - PLUG, TIGHT, NO.2
96411-42200

12R#..RN20,25

OD=22

 3
90331-22022

12R..RN2#

OD=22

 3
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53028

12R#..RN20,25

L=50,S=15

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51025

12R#..RN20,25

L=9,S=7.5

 1
11119A - PIN, STRAIGHT, NO.1
90250-08054

12R#,18R..RN2#

L=23,OD=8,L=23,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-31020

12R..RN2#

O/S 0.05

 4
11123-23010

12R#..RN20,25

O/S 0.05

 4
11122-23010

12R#..RN20,25

STD

 4
11122-31020

12R..RN2#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-31020

12R..RN2#

STD

 4
11123-31020

12R..RN2#

O/S 0.05

 4
11123-23010

12R#..RN20,25

O/S 0.05

 4
11122-23010

12R#..RN20,25

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39085

12R..RN2#..4F

W/PCV

 1
11201-39095

12R..RN2#..4F

L/PCV

 1
11201-39096

12R..RN20,25..LHD

L/PCV

 1
11201-39087

12R#..RN20,25

W/PCV

 1
11201-39086

12R..RN20,25..LHD

W/PCV

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06014

12R#..RN20,25

 4
90176-08004

12R..RN2#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08007

12R..RN2#

 4
90210-10022

12R#..RN20,25

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-31010

12R..RN20,25

 1
11213-31011

12R#..RN20,25

 1
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11293-31040

12R..RN20,25

 1
11293-31050

12R..RN2#

 1
11293-31041

12R#..RN20,25

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

12R#..RN20,25

 1
12108-31013

12R..RN2#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35095

12R..RN2#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35095

12R..RN2#

 1
Linked diagrams
1302
1603

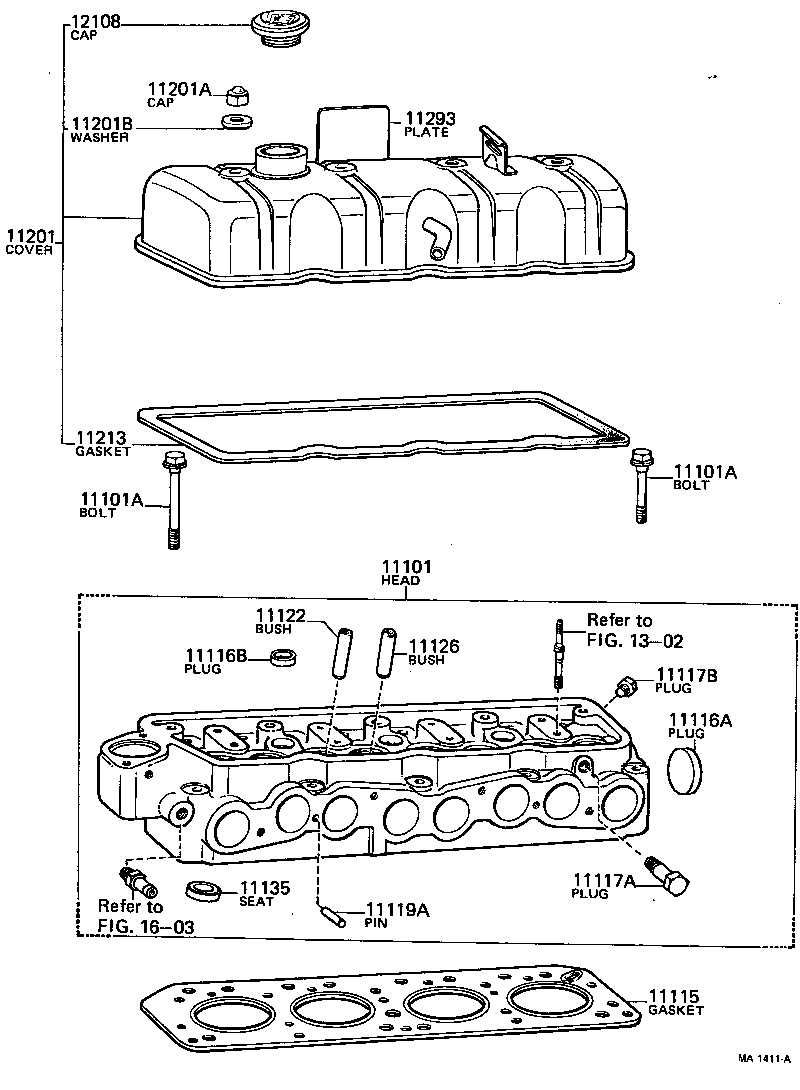

(7208-7511)12R

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11115 11116A 11116B 11117A 11117B 11119A 11122 11126 11135 11201 11201A 11201B 11213 11293 12108 1302 1603
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39176

12R..RN20,25

 1
11101-39107

12R..RN2#

 1
11101-39175

12R..RN20,25

 1
11101-39106

12R..RN2#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02051

12R#..RN20,25

12-1.25PX100-24

 5
90910-02052

12R#..RN20,25

12-1.25PX86.5-24

 5
90910-02034

12R..RN2#

12-1.25PX100-24

 5
90910-02043

12R..RN2#

12-1.25PX86.5-24

 5
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02051

12R#..RN20,25

12-1.25PX100-24

 5
90910-02052

12R#..RN20,25

12-1.25PX86.5-24

 5
90910-02034

12R..RN2#

12-1.25PX100-24

 5
90910-02043

12R..RN2#

12-1.25PX86.5-24

 5
11115 - GASKET, CYLINDER HEAD
11115-31020

12R..RN20,25

 1
11115-31022

12R#..RN20,25

 1
11115-31023

12R#..RN20,25

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

12R#..RN20,25

OD=50

 1
90331-50015

12R..RN2#

OD=50

 1
11116B - PLUG, TIGHT, NO.2
96411-42200

12R#..RN20,25

OD=22

 3
90331-22022

12R..RN2#

OD=22

 3
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53028

12R#..RN20,25

L=50,S=15

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51025

12R#..RN20,25

L=9,S=7.5

 1
11119A - PIN, STRAIGHT, NO.1
90250-08054

12R#,18R..RN2#

L=23,OD=8,L=23,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-31020

12R..RN2#

O/S 0.05

 4
11123-23010

12R#..RN20,25

O/S 0.05

 4
11122-23010

12R#..RN20,25

STD

 4
11122-31020

12R..RN2#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-31020

12R..RN2#

STD

 4
11123-31020

12R..RN2#

O/S 0.05

 4
11123-23010

12R#..RN20,25

O/S 0.05

 4
11122-23010

12R#..RN20,25

STD

 4
11135 - SEAT, EXHAUST VALVE
11136-31020

12R..RN2#

O/S 0.03

 4
11135-31022

12R..RN2#

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39085

12R..RN2#..4F

W/PCV

 1
11201-39095

12R..RN2#..4F

L/PCV

 1
11201-39096

12R..RN20,25..LHD

L/PCV

 1
11201-39087

12R#..RN20,25

W/PCV

 1
11201-39086

12R..RN20,25..LHD

W/PCV

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06014

12R#..RN20,25

 4
90176-08004

12R..RN2#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08007

12R..RN2#

 4
90210-10022

12R#..RN20,25

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-31010

12R..RN20,25

 1
11213-31011

12R#..RN20,25

 1
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11293-31040

12R..RN20,25

 1
11293-31050

12R..RN2#

 1
11293-31041

12R#..RN20,25

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

12R#..RN20,25

 1
12108-31013

12R..RN2#

 1
Linked diagrams
1302
1603

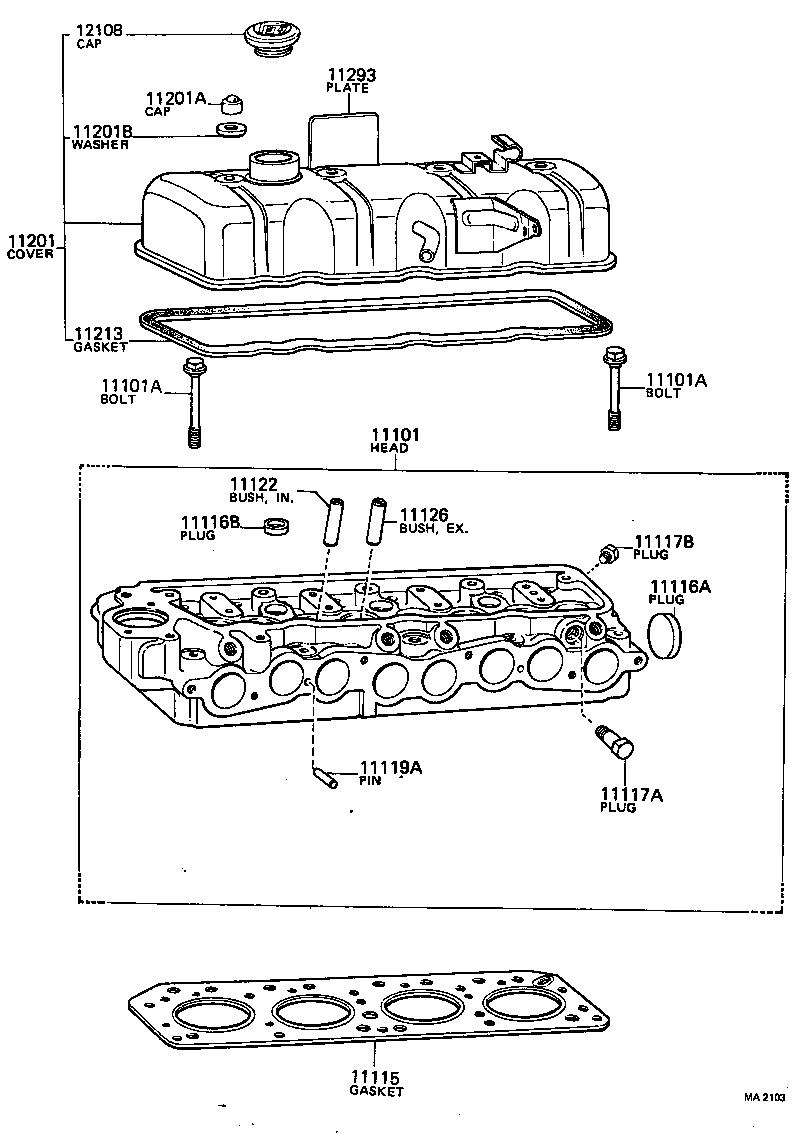

(7511-7807)12R#

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11115 11116A 11116B 11117A 11117B 11119A 11122 11126 11201 11201A 11201B 11213 11293 12108
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39176

12R..RN20,25

 1
11101-39107

12R..RN2#

 1
11101-39175

12R..RN20,25

 1
11101-39106

12R..RN2#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02051

12R#..RN20,25

12-1.25PX100-24

 5
90910-02052

12R#..RN20,25

12-1.25PX86.5-24

 5
90910-02034

12R..RN2#

12-1.25PX100-24

 5
90910-02043

12R..RN2#

12-1.25PX86.5-24

 5
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02051

12R#..RN20,25

12-1.25PX100-24

 5
90910-02052

12R#..RN20,25

12-1.25PX86.5-24

 5
90910-02034

12R..RN2#

12-1.25PX100-24

 5
90910-02043

12R..RN2#

12-1.25PX86.5-24

 5
11115 - GASKET, CYLINDER HEAD
11115-31020

12R..RN20,25

 1
11115-31022

12R#..RN20,25

 1
11115-31023

12R#..RN20,25

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

12R#..RN20,25

OD=50

 1
90331-50015

12R..RN2#

OD=50

 1
11116B - PLUG, TIGHT, NO.2
96411-42200

12R#..RN20,25

OD=22

 3
90331-22022

12R..RN2#

OD=22

 3
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53028

12R#..RN20,25

L=50,S=15

 1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-51025

12R#..RN20,25

L=9,S=7.5

 1
11119A - PIN, STRAIGHT, NO.1
90250-08054

12R#,18R..RN2#

L=23,OD=8,L=23,OD=8

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-31020

12R..RN2#

O/S 0.05

 4
11123-23010

12R#..RN20,25

O/S 0.05

 4
11122-23010

12R#..RN20,25

STD

 4
11122-31020

12R..RN2#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-31020

12R..RN2#

STD

 4
11123-31020

12R..RN2#

O/S 0.05

 4
11123-23010

12R#..RN20,25

O/S 0.05

 4
11122-23010

12R#..RN20,25

STD

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39085

12R..RN2#..4F

W/PCV

 1
11201-39095

12R..RN2#..4F

L/PCV

 1
11201-39096

12R..RN20,25..LHD

L/PCV

 1
11201-39087

12R#..RN20,25

W/PCV

 1
11201-39086

12R..RN20,25..LHD

W/PCV

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06014

12R#..RN20,25

 4
90176-08004

12R..RN2#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08007

12R..RN2#

 4
90210-10022

12R#..RN20,25

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-31010

12R..RN20,25

 1
11213-31011

12R#..RN20,25

 1
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11293-31040

12R..RN20,25

 1
11293-31050

12R..RN2#

 1
11293-31041

12R#..RN20,25

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-31020

12R#..RN20,25

 1
12108-31013

12R..RN2#

 1
