RN25-KR (1972)

Toyota Hilux

Production Nov 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

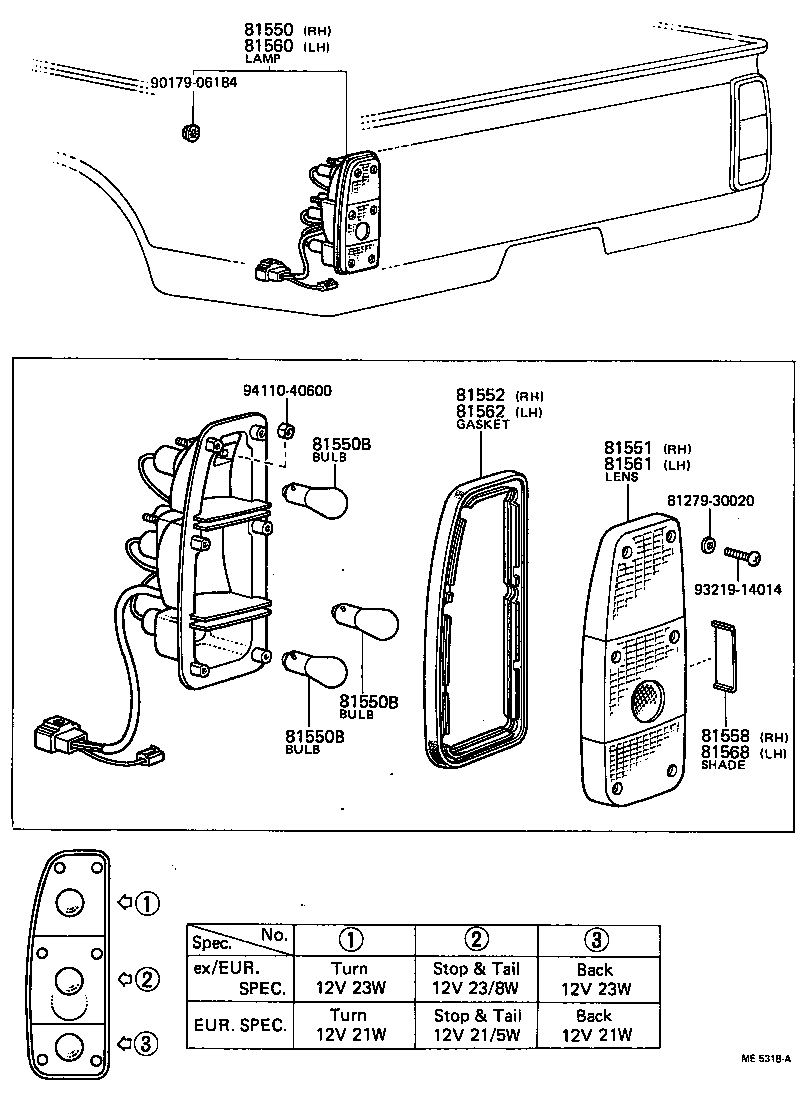

Click highlighted areas on diagram

diagram 8127930020 81550 81550B 81550B 81550B 81551 81552 81558 81560 81561 81562 81568 9017906184 9321914014 9411040600
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-89806

RN2#..RHD

AUSTRALIA SPEC.

 1
81550-89810

RN20,25

EUR.SPEC.

 1
81550-89808

RN2#

 1
81550-89803

RN2#

 1
81550-89813

RN2#

 1
81550-89814

RN20,25

EUR.SPEC.

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RN20,25

12V 21/5W,12V 21/5W EUR.SPEC.

 2
99132-21230

RN2#

12V 23/8W,12V 23/8W

 2
99132-11230

RN2#

12V 23W,12V 23W

 4
99132-11210

RN20,25

12V 21W,12V 21W EUR.SPEC.

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RN20,25

12V 21/5W,12V 21/5W EUR.SPEC.

 2
99132-21230

RN2#

12V 23/8W,12V 23/8W

 2
99132-11230

RN2#

12V 23W,12V 23W

 4
99132-11210

RN20,25

12V 21W,12V 21W EUR.SPEC.

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

RN20,25

12V 21/5W,12V 21/5W EUR.SPEC.

 2
99132-21230

RN2#

12V 23/8W,12V 23/8W

 2
99132-11230

RN2#

12V 23W,12V 23W

 4
99132-11210

RN20,25

12V 21W,12V 21W EUR.SPEC.

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-89105

RN2#

 1
81551-89106

RN20,25

EUR.SPEC.

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-89104

RN2#

 1
81552-89110

RN20,25

EUR.SPEC.

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81557-89110

RN20,25

EUR.SPEC.

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-89806

RN2#..RHD

AUSTRALIA SPEC.

 1
81560-89814

RN20,25

EUR.SPEC.

 1
81560-89808

RN2#

 1
81560-89803

RN2#

 1
81560-89813

RN2#

 1
81560-89810

RN20,25

EUR.SPEC.

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-89106

RN20,25

EUR.SPEC.

 1
81561-89105

RN2#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-89104

RN2#

 1
81562-89110

RN20,25

EUR.SPEC.

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81557-89110

RN20,25

EUR.SPEC.

 1
Common parts
81279-30020
90179-06184
93219-14014
94110-40600
