RN25-KR (1972)

Toyota Hilux

Production Nov 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)RHD..MTM

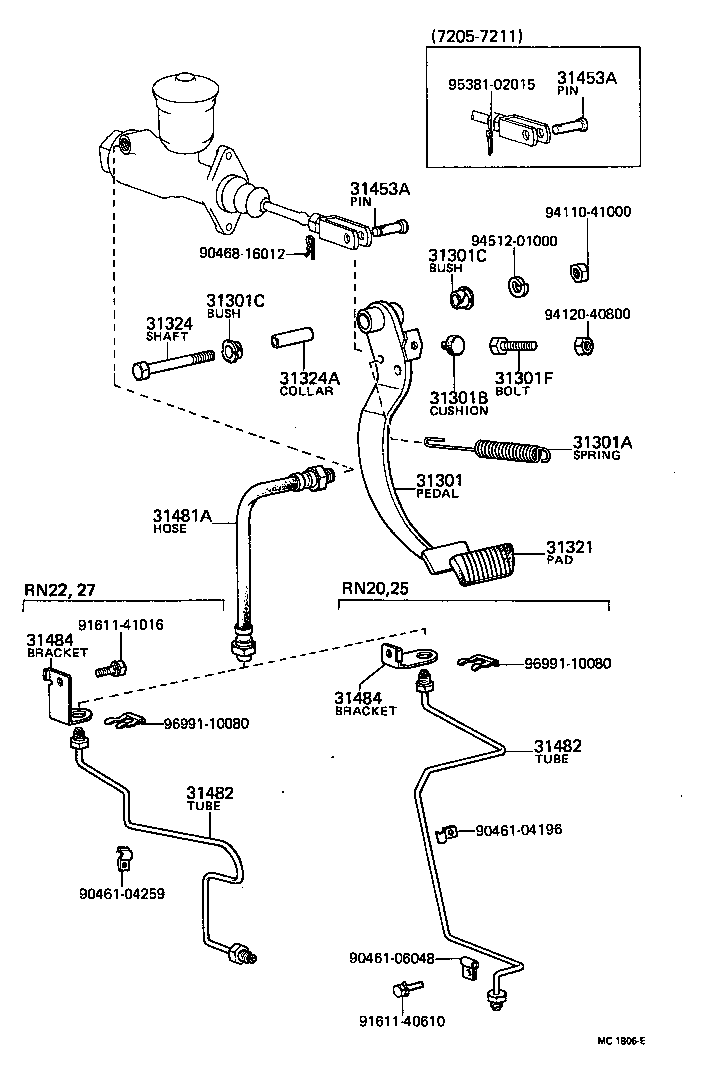

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453A 31481A 31482 31482 31484 31484 9046104196 9046104259 9046106048 9046816012 9161140610 9161141016 9411041000 9412040800 9451201000 9538102015 9699110080 9699110080
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35061

RN2#..RHD..MTM

 1
31301-35070

RN2#..4F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-14429

RN2#..MTM

 1
90506-12424

RN2#

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

RN2#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

RN2#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

RN2#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90109-08001

RN2#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-20020

RN2#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

RN2#..RHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

RN2#..RHD..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08011

RN2#..MTM

 1
90240-08040

RN2#

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08011

RN2#..MTM

 1
90240-08040

RN2#

 1
31481A - HOSE, CLUTCH, NO.1
96910-31263

RN2#..RHD..MTM

L=260

 1
96910-31262

RN2#..RHD..MTM

L=260

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35060

RN20,25

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-35060

RN20,25

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35060

RN20,25

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-35060

RN20,25

 1
Common parts
90461-04196
90461-04259
90461-06048
90468-16012
91611-40610
91611-41016
94110-41000
94120-40800
94512-01000
95381-02015
96991-10080
