RN25-JR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

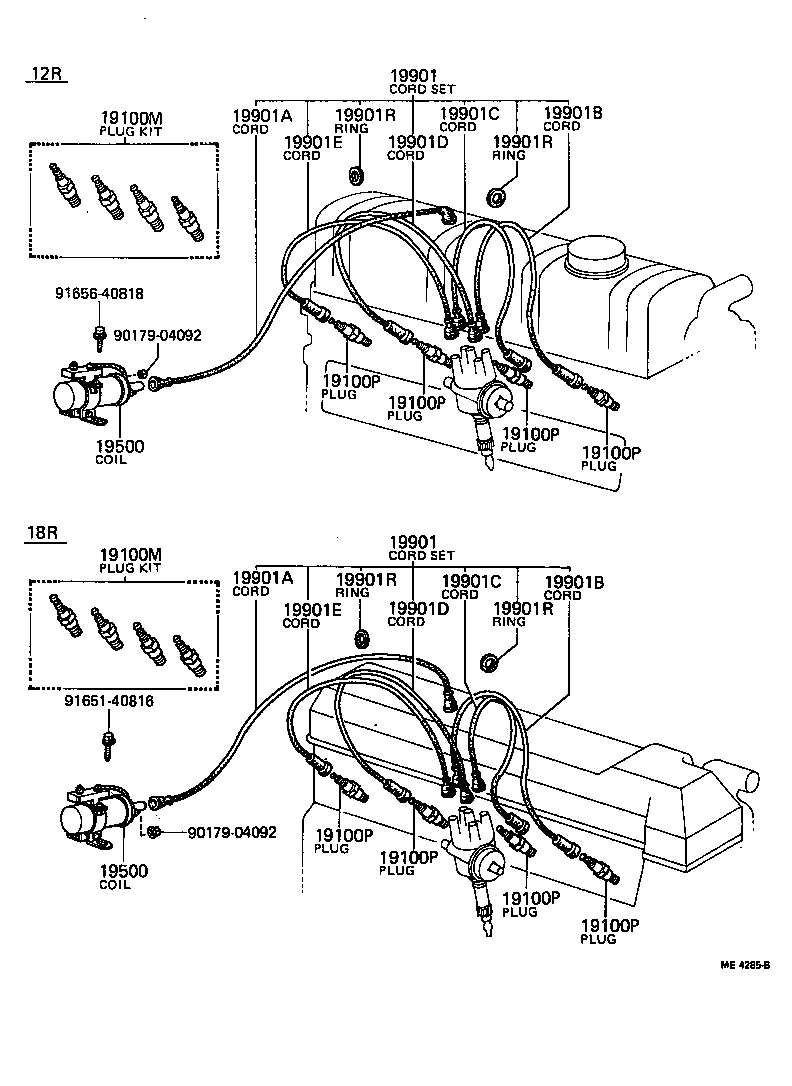

Click highlighted areas on diagram

diagram 19100M 19100M 19100P 19100P 19100P 19100P 19100P 19100P 19100P 19100P 19500 19500 19901 19901 19901A 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19901R 19901R 19901R 19901R 9017904092 9017904092 9165140816 9165640818
Part # Description Qty Price
19100M - PLUG KIT, SPARK
04195-34010

12R,18R..RN2#

W16EP

 1
04195-34010

12R#..RN20,25

W16EP

 1
04195-34020

12R..RN2#

W20EP

 1
19100M - PLUG KIT, SPARK
04195-34010

12R,18R..RN2#

W16EP

 1
04195-34010

12R#..RN20,25

W16EP

 1
04195-34020

12R..RN2#

W20EP

 1
19100P - PLUG, SPARK
90999-09001

12R..RN2#

W20EP

 4
90919-01041

12R..RN20,25

W16EX

 4
90919-01051

12R..RN20,25

W16EPR OR W16EXR-U,W16EPR,E.C.E. NO.10

 4
90919-01027

12R#..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R,18R..RN2#

W16EP OR W16EX-U,W16EP

 4
19100P - PLUG, SPARK
90999-09001

12R..RN2#

W20EP

 4
90919-01041

12R..RN20,25

W16EX

 4
90919-01051

12R..RN20,25

W16EPR OR W16EXR-U,W16EPR,E.C.E. NO.10

 4
90919-01027

12R#..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R,18R..RN2#

W16EP OR W16EX-U,W16EP

 4
19100P - PLUG, SPARK
90999-09001

12R..RN2#

W20EP

 4
90919-01041

12R..RN20,25

W16EX

 4
90919-01051

12R..RN20,25

W16EPR OR W16EXR-U,W16EPR,E.C.E. NO.10

 4
90919-01027

12R#..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R,18R..RN2#

W16EP OR W16EX-U,W16EP

 4
19100P - PLUG, SPARK
90999-09001

12R..RN2#

W20EP

 4
90919-01041

12R..RN20,25

W16EX

 4
90919-01051

12R..RN20,25

W16EPR OR W16EXR-U,W16EPR,E.C.E. NO.10

 4
90919-01027

12R#..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R,18R..RN2#

W16EP OR W16EX-U,W16EP

 4
19100P - PLUG, SPARK
90999-09001

12R..RN2#

W20EP

 4
90919-01041

12R..RN20,25

W16EX

 4
90919-01051

12R..RN20,25

W16EPR OR W16EXR-U,W16EPR,E.C.E. NO.10

 4
90919-01027

12R#..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R,18R..RN2#

W16EP OR W16EX-U,W16EP

 4
19100P - PLUG, SPARK
90999-09001

12R..RN2#

W20EP

 4
90919-01041

12R..RN20,25

W16EX

 4
90919-01051

12R..RN20,25

W16EPR OR W16EXR-U,W16EPR,E.C.E. NO.10

 4
90919-01027

12R#..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R,18R..RN2#

W16EP OR W16EX-U,W16EP

 4
19100P - PLUG, SPARK
90999-09001

12R..RN2#

W20EP

 4
90919-01041

12R..RN20,25

W16EX

 4
90919-01051

12R..RN20,25

W16EPR OR W16EXR-U,W16EPR,E.C.E. NO.10

 4
90919-01027

12R#..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R,18R..RN2#

W16EP OR W16EX-U,W16EP

 4
19100P - PLUG, SPARK
90999-09001

12R..RN2#

W20EP

 4
90919-01041

12R..RN20,25

W16EX

 4
90919-01051

12R..RN20,25

W16EPR OR W16EXR-U,W16EPR,E.C.E. NO.10

 4
90919-01027

12R#..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R..RN20,25

W16EP OR W16EX-U,W16EP

 4
90919-01027

12R,18R..RN2#

W16EP OR W16EX-U,W16EP

 4
19500 - COIL ASSY, IGNITION
90919-02040

12R..RN20,25

 1
90919-02015

12R..RN2#

 1
90919-02053

12R..RN20,25

 1
90919-02067

12R#,18R..RN2#

 1
90919-02067

12R..RN20,25

 1
19500 - COIL ASSY, IGNITION
90919-02040

12R..RN20,25

 1
90919-02015

12R..RN2#

 1
90919-02053

12R..RN20,25

 1
90919-02067

12R#,18R..RN2#

 1
90919-02067

12R..RN20,25

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21015

12R#..RN20,25

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21015

12R#..RN20,25

 1
19901A - CORD, COIL RESISTIVE
90919-13042

12R#..RN20,25

 1
99231-10360

12R..RN20,25

 1
19901A - CORD, COIL RESISTIVE
90919-13042

12R#..RN20,25

 1
99231-10360

12R..RN20,25

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12082

12R#..RN20,25

 1
99221-10290

12R..RN2#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12082

12R#..RN20,25

 1
99221-10290

12R..RN2#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
99221-10240

12R..RN20,25

 1
90919-12145

12R#..RN20,25

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
99221-10240

12R..RN20,25

 1
90919-12145

12R#..RN20,25

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12145

12R#..RN20,25

 1
99221-10240

12R..RN20,25

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12145

12R#..RN20,25

 1
99221-10240

12R..RN20,25

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
99221-10290

12R,18R..RN2#

 1
90919-12146

12R#,18R..RN2#

 1
90919-12146

12R..RN20,25

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
99221-10290

12R,18R..RN2#

 1
90919-12146

12R#,18R..RN2#

 1
90919-12146

12R..RN20,25

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R..RN2#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R..RN2#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R..RN2#

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R..RN2#

 2
Common parts
90179-04092
91651-40816
91656-40818
