RN22L-MD (1977)
Toyota Hilux
Production
Feb 1977
-
Jul 1978
Engine
18R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)

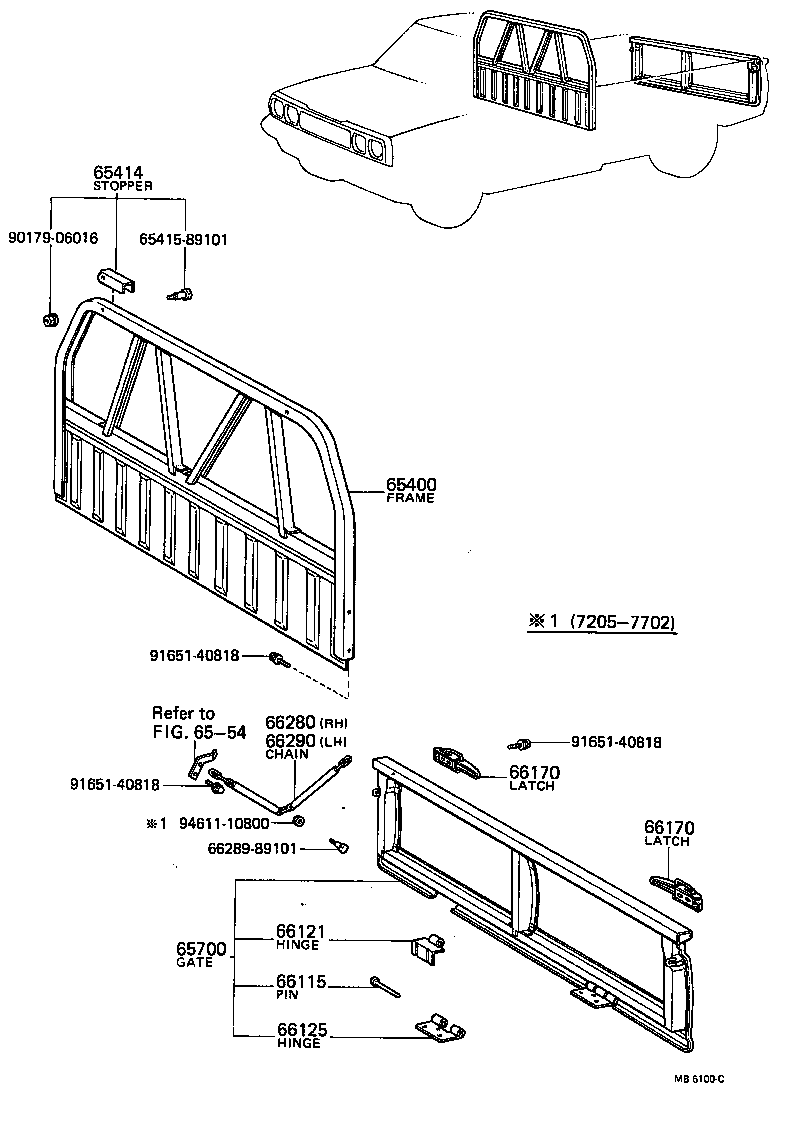

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65400 - FRAME ASSY, REAR BODY GUARD | ||||
| 65400-89103 |
RN22..5F |
1 | ||
| 65414 - STOPPER, GUARD FRAME | ||||
| 65414-89801 |
RN22..5F |
2 | ||
| 65700 - GATE ASSY, REAR BODY TAIL | ||||
| 65700-89112 |
RN22..5F |
1 | ||
| 66121 - HINGE, TAIL GATE, MALE | ||||
| 66111-89103 |
RN22..5F |
2 | ||
| 66125 - HINGE, TAIL GATE, FEMALE | ||||
| 66112-89102 |
RN22..5F |
2 | ||
| 66170 - LATCH ASSY, REAR BODY TAIL GATE | ||||
| 66170-89103 |
RN22..5F |
2 | ||
| 66170 - LATCH ASSY, REAR BODY TAIL GATE | ||||
| 66170-89103 |
RN22..5F |
2 | ||
| 66280 - CHAIN ASSY, TAIL GATE, RH | ||||
| 90583-05007 |
RN22..5F |
1 | ||
| 66290 - CHAIN ASSY, TAIL GATE, LH | ||||
| 90583-05007 |
RN22..5F |
1 | ||
| Common parts | ||||
| 65415-89101 | ||||
| 66289-89101 | ||||
| 90179-06016 | ||||
| 91651-40818 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 6554 | ||||
(0507-0808)KUN25..THDCB,XTR..CBU ; (0507-0808)KUN15..LHD..THDCB,XTR..HDCR..CBU ; (0
Click highlighted areas on diagram
W(FLAME)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 65743-0K010 | ||||
| 90109-06022 | ||||
| 90119-T0118 | ||||
| 90119-T0178 | ||||
| 90119-T0180 | ||||
| 90119-T0253 | ||||
| 90119-T0345 | ||||
| 90149-80020 | ||||
| 90157-T0001 | ||||
| 90159-60535 | ||||
| 90159-T0024 | ||||
| 90189-T0009 | ||||
| 90269-06017 | ||||
| 90389-10042 | ||||
| 94185-60600 | ||||
