RN22L-MD (1977)

Toyota Hilux

Production Feb 1977 - Jul 1978
Engine 18R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

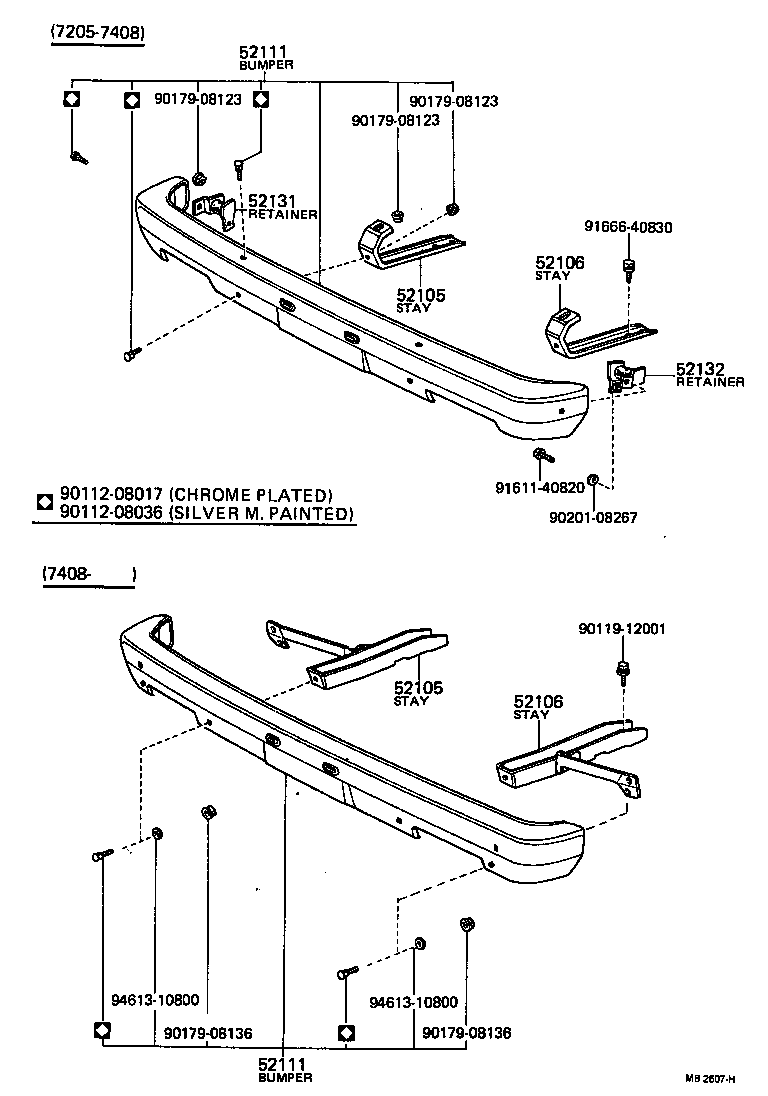

Click highlighted areas on diagram

diagram 52105 52105 52106 52106 52111 52111 52131 52132 9011208017 9011208036 9011912001 9017908123 9017908123 9017908123 9017908136 9017908136 9020108267 9161140820 9166640830 9461310800 9461310800
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52141-89103

RN2#

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52141-89103

RN2#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52141-89103

RN2#

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52141-89103

RN2#

 1
52111 - BUMPER ASSY, FRONT
52111-89804

RN2#

CHROME PLATED

 1
52111 - BUMPER ASSY, FRONT
52111-89804

RN2#

CHROME PLATED

 1
52131 - RETAINER, FRONT BUMPER SIDE, RH
52015-89101

RN2#

 1
52132 - RETAINER, FRONT BUMPER SIDE, LH
52016-89101

RN2#

 1
Common parts
90112-08017
90112-08036
90119-12001
90179-08123
90179-08136
90201-08267
91611-40820
91666-40830
94613-10800
