RN22-KD (1974)

Toyota Hilux

Production Apr 1974 - Jul 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

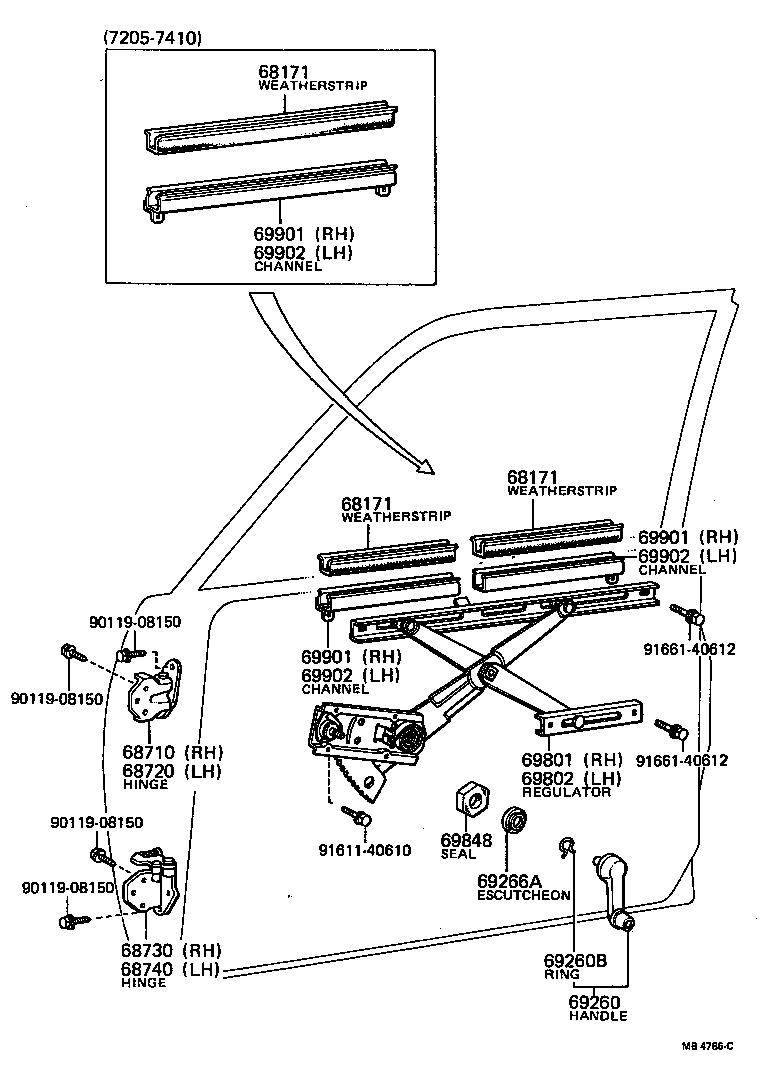

Click highlighted areas on diagram

diagram 68171 68171 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 69848 69901 69901 69901 69902 69902 69902 9011908150 9011908150 9011908150 9011908150 9161140610 9166140612 9166140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-89103

RN2#

FOR VENTILATOR WINDOW

 4
68173-89102

RN22,27..RHD

 4
68171-20030

RN2#

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-89103

RN2#

FOR VENTILATOR WINDOW

 4
68173-89102

RN22,27..RHD

 4
68171-20030

RN2#

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-89103

RN2#

FOR VENTILATOR WINDOW

 4
68173-89102

RN22,27..RHD

 4
68171-20030

RN2#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-12020

RN2#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-12020

RN2#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20031

RN2#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20031

RN2#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004016

RN2#

BROWN,BROWN

 2
69260-1004004

RN2#

BLUE,BLUE

 2
69260-10030

RN2#

 2
69260-1004001

RN2#

BLACK,BLACK

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

RN2#

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69266-2201004

RN2#

BLUE,BLUE

 2
69266-2201001

RN2#

BLACK,BLACK

 2
69266-22010

RN2#

BLACK

 2
69266-2201006

RN2#

BROWN,BROWN

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-89104

RN2#

FOR VENTILATOR WINDOW

 1
69801-89103

RN22,27..RHD

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-89103

RN22,27..RHD

 1
69802-89104

RN2#

FOR VENTILATOR WINDOW

 1
69848 - SEAL, WINDOW REGULATOR HOLE
69848-30010

RN22,27..RHD

 2
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-89103

RN22,27..RHD

FOR FRONT

 1
69902-89102

RN22,27..RHD

FOR REAR

 1
69901-20040

RN2#

 1
69901-89104

RN2#

FOR VENTILATOR WINDOW

 2
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-89103

RN22,27..RHD

FOR FRONT

 1
69902-89102

RN22,27..RHD

FOR REAR

 1
69901-20040

RN2#

 1
69901-89104

RN2#

FOR VENTILATOR WINDOW

 2
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-89103

RN22,27..RHD

FOR FRONT

 1
69902-89102

RN22,27..RHD

FOR REAR

 1
69901-20040

RN2#

 1
69901-89104

RN2#

FOR VENTILATOR WINDOW

 2
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-89103

RN22,27..RHD

FOR REAR

 1
69901-20040

RN2#

 1
69902-89102

RN22,27..RHD

FOR FRONT

 1
69901-89104

RN2#

FOR VENTILATOR WINDOW

 2
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-89103

RN22,27..RHD

FOR REAR

 1
69901-20040

RN2#

 1
69902-89102

RN22,27..RHD

FOR FRONT

 1
69901-89104

RN2#

FOR VENTILATOR WINDOW

 2
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-89103

RN22,27..RHD

FOR REAR

 1
69901-20040

RN2#

 1
69902-89102

RN22,27..RHD

FOR FRONT

 1
69901-89104

RN2#

FOR VENTILATOR WINDOW

 2
Common parts
90119-08150
91611-40610
91661-40612
