RN22-KD (1974)

Toyota Hilux

Production Apr 1974 - Jul 1978
Engine 18R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

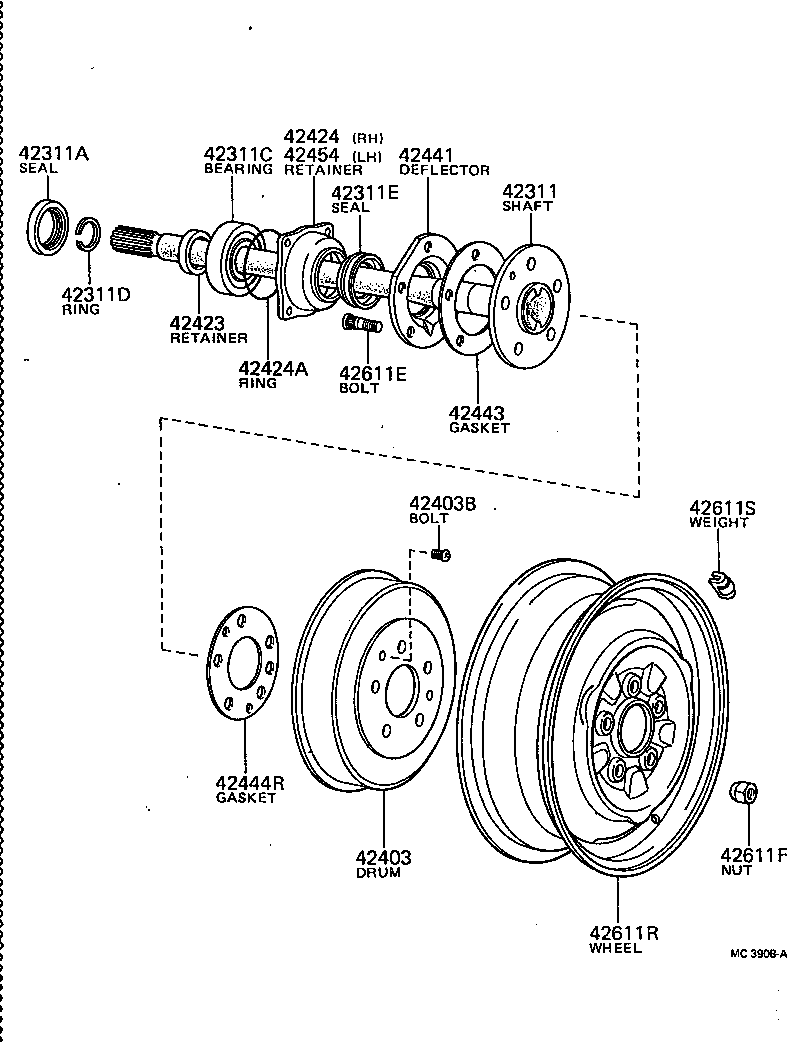

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403B 42423 42424 42424A 42441 42443 42444R 42454 42611E 42611F 42611R 42611S
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-35040

RN2#

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90310-50039

RN2#

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
97144-06308

RN2#

 2
42311D - RING, SNAP (FOR REAR AXLE SHAFT)
90520-36045

RN2#

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-48005

RN2#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-35030

RN2#

 2
42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING)
90113-10035

RN2#

 2
42423 - RETAINER, REAR AXLE BEARING, INNER
42423-20010

RN2#

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42421-35020

RN2#

 1
42424A - RING, O (FOR BEARING RETAINER SET)
90301-88077

RN2#

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-26010

RN2#

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-30010

RN2#

 2
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35020

RN2#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42421-35020

RN2#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02017

RN2#

 10
90942-02037

RN2#

 10
42611F - NUT, HUB (FOR REAR AXLE)
90942-01007

RN2#

 10
42611R - WHEEL, DISC(FOR REAR)
42601-35080

RN2#

4.5J-14

 2
42601-35081

RN20,22,25

4.5J-14

 2
42611S - WEIGHT, BALANCE(FOR REAR DISC WHEEL)
90942-03010

RN2#

40G.

 1
90942-03012

RN2#

80G.

 1
90942-03031

RN2#

80G.

 1
90942-03022

RN2#

40G.

 1
90942-03027

RN2#

60G.

 1
90942-03017

RN2#

20G.

 1
90942-03011

RN2#

60G.

 1

(0507-0808) ; (0808-0810)DCB,SCB
