RN22-KD (1974)
Toyota Hilux
Production
Apr 1974
-
Jul 1978
Engine
18R
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)RN20,22

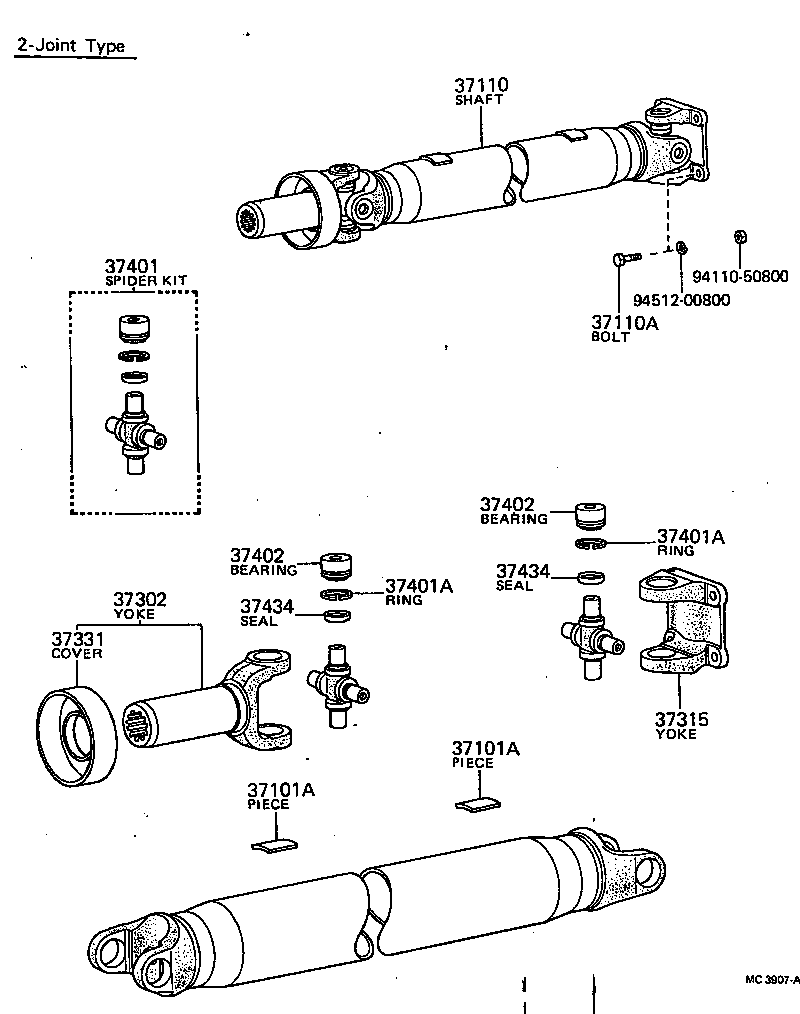

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01003 |
RN20,22,27 8G,T=1.2,10G.SPOT |
1 | ||
| 90937-01029 |
RN20,22,27 5G.SPOT |
1 | ||
| 90937-01005 |
RN20,22,27 30G,T=1.2,30G.SPOT |
1 | ||
| 90937-01004 |
RN20,22,27 20G,T=1.2,20G.SPOT |
1 | ||
| 90937-01030 |
RN20,22,27 15G.SPOT |
1 | ||
| 90937-01031 |
RN20,22,27 25G.SPOT |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01003 |
RN20,22,27 8G,T=1.2,10G.SPOT |
1 | ||
| 90937-01029 |
RN20,22,27 5G.SPOT |
1 | ||
| 90937-01005 |
RN20,22,27 30G,T=1.2,30G.SPOT |
1 | ||
| 90937-01004 |
RN20,22,27 20G,T=1.2,20G.SPOT |
1 | ||
| 90937-01030 |
RN20,22,27 15G.SPOT |
1 | ||
| 90937-01031 |
RN20,22,27 25G.SPOT |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08214 |
RN2# *8-1.25PX25-12 |
12 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-35010 |
RN2# |
1 | ||
| 37302-35010 |
RN20,22 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35021 |
RN2# |
3 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
RN2# |
1 | ||
| 37331-30010 |
RN20,22 |
1 | ||
| 37401 - SPIDER KIT, UNIVERSAL JOINT | ||||
| 04371-30011 |
RN2# |
3 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-27003 |
RN2# T=1.275-1.325 |
12 | ||
| 90521-27001 |
RN2# T=1.175-1.225 |
12 | ||
| 90521-27004 |
RN2# T=1.325-1.375 |
12 | ||
| 90521-27002 |
RN2# T=1.225-1.275 |
12 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90521-27003 |
RN2# T=1.275-1.325 |
12 | ||
| 90521-27001 |
RN2# T=1.175-1.225 |
12 | ||
| 90521-27004 |
RN2# T=1.325-1.375 |
12 | ||
| 90521-27002 |
RN2# T=1.225-1.275 |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-35031 |
RN2# |
12 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-35031 |
RN2# |
12 | ||
| 37434 - SEAL, UNIVERSAL JOINT SPIDER BEARING | ||||
| 37343-25010 |
RN2# |
12 | ||
| 37434 - SEAL, UNIVERSAL JOINT SPIDER BEARING | ||||
| 37343-25010 |
RN2# |
12 | ||
| Common parts | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
