RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708-7807)RN22

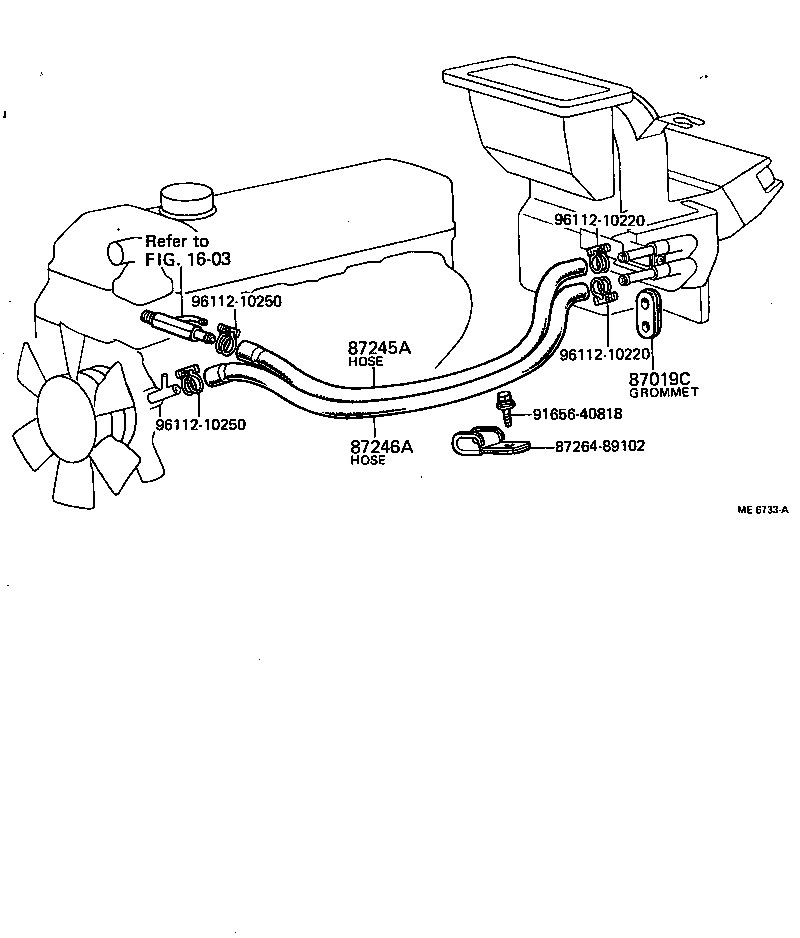

Click highlighted areas on diagram

diagram 1603 87019C 87245A 87246A 8726489102 9165640818 9611210220 9611210220 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01011

RN22,27..RHD

 1
87267-89101

RN2#

 1
87245A - HOSE, HEATER WATER, INLET A
99552-20700

RN22..RHD

L=700

 1
87245-89120

RN22,27..RHD

L=700

 1
87246A - HOSE, HEATER WATER, OUTLET A
99551-21160

RN2#..4H

L=1160

 1
87245-89120

RN22,27..RHD

 1
Common parts
87264-89102
91656-40818
96112-10220
96112-10250
Linked diagrams
1603
