RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

Click highlighted areas on diagram

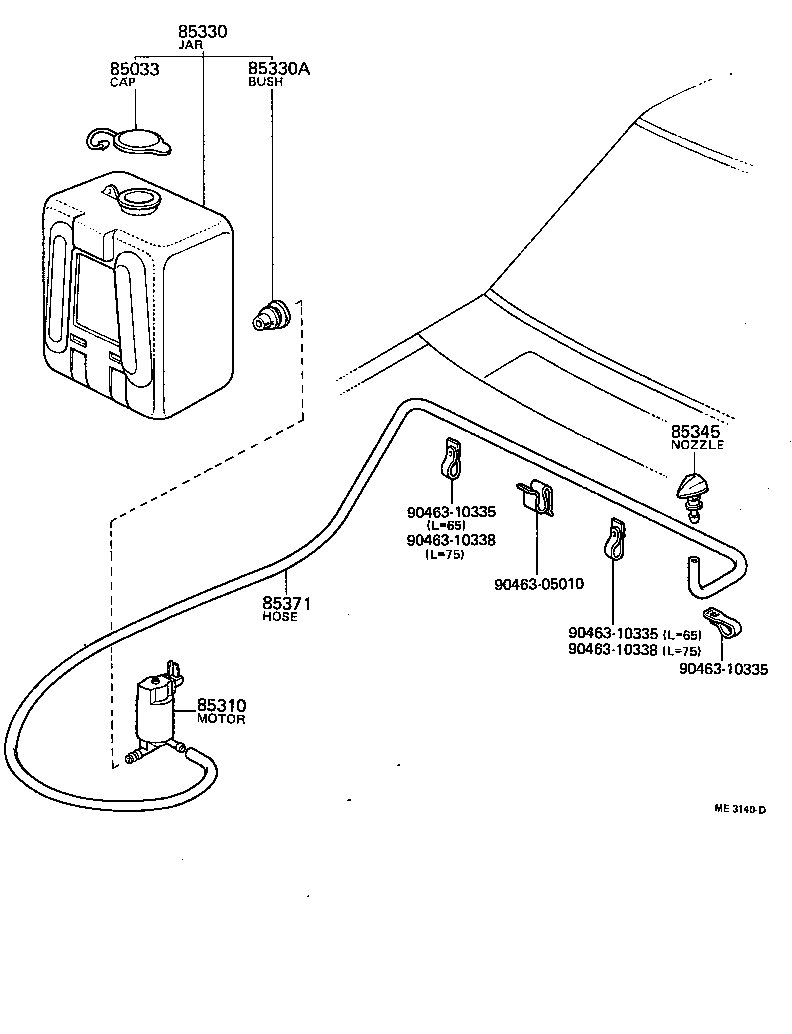

diagram 85033 85310 85330 85330A 85345 85371 9046305010 9046310335 9046310335 9046310335 9046310338 9046310338
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-30050

RN2#

 1
85033-20070

RN2#

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-12020

RN2#

 1
85310-20100

RN2#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-89101

RN2#

 1
85330-89104

RN2#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

RN2#

 1
90099-32057

RN2#

 1
85345 - NOZZLE, WINDSHIELD WASHER
85035-14010

RN2#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33283

RN2#

 1
Common parts
90463-05010
90463-10335
90463-10338
