RN22-JD (1975)
Toyota Hilux
Production
May 1975
-
Jul 1978
Engine
18R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

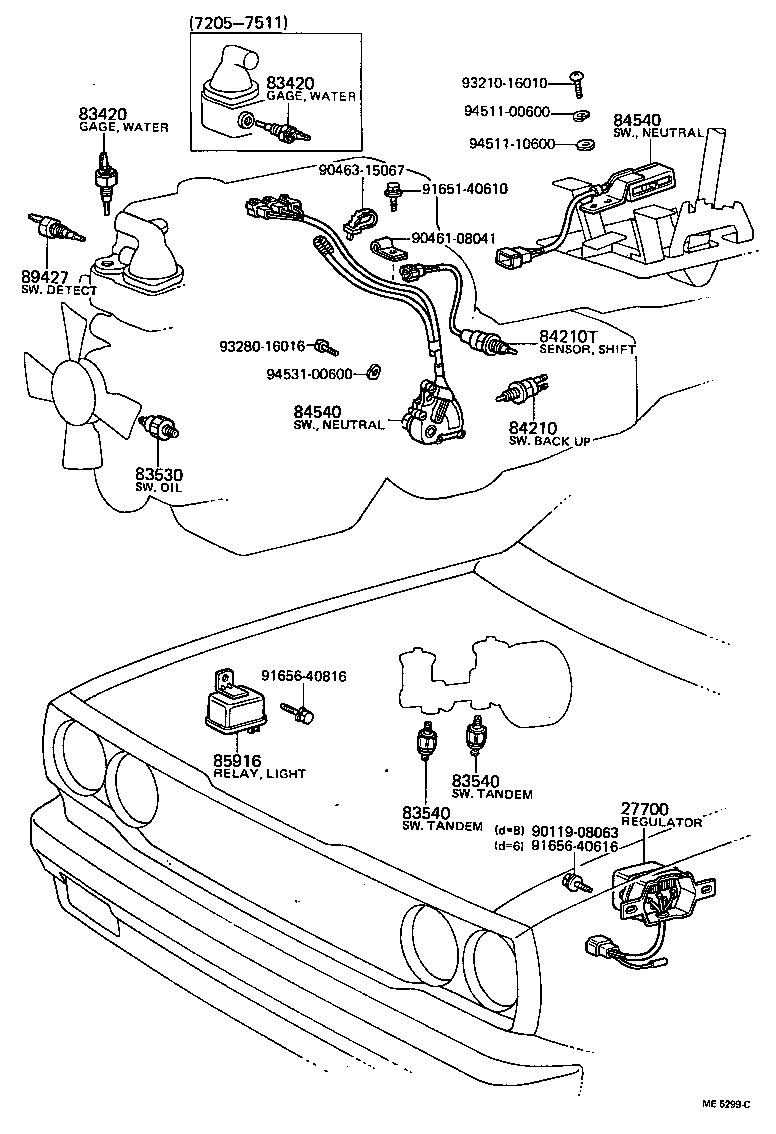

(7205-7807)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-36020 |
12R#,18R..RN2# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83430-89101 |
RN2# |
1 | ||
| 83420-20011 |
RN2# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83430-89101 |
RN2# |
1 | ||
| 83420-20011 |
RN2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-36011 |
RN2# |
1 | ||
| 83540 - SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER) | ||||
| 84390-30011 |
RN2# |
2 | ||
| 83540 - SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER) | ||||
| 84390-30011 |
RN2# |
2 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-26010 |
RN2#..4F,4H |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85916-12010 |
RN2# |
1 | ||
| 85916-20010 |
RN2# |
1 | ||
| 85916-35010 |
RN2# |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90461-08041 | ||||
| 90463-15067 | ||||
| 91651-40610 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 93210-16010 | ||||
| 93280-16016 | ||||
| 94511-00600 | ||||
| 94511-10600 | ||||
| 94531-00600 | ||||

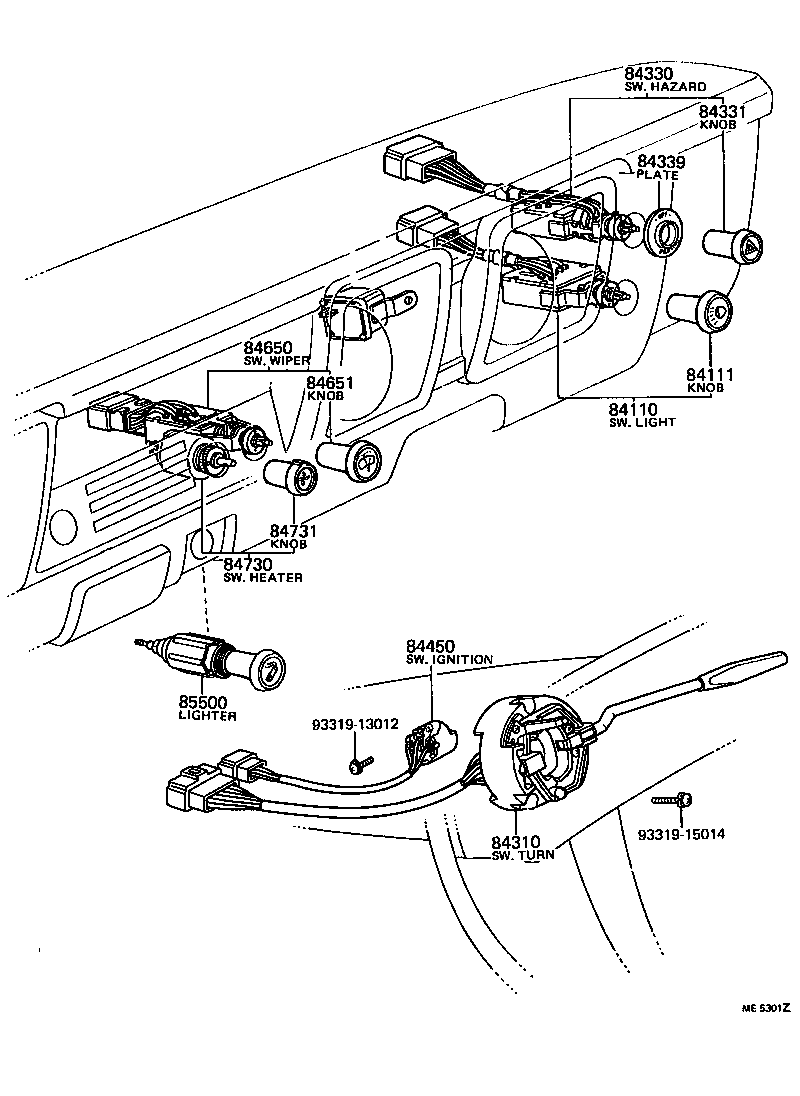

(7205-7511)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84110-89104 |
RN2# |
1 | ||
| 84112-89104 |
RN2# |
1 | ||
| 84111 - KNOB, LIGHT CONTROL SWITCH | ||||
| 84111-89103 |
RN2# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35100 |
RN2#..RHD |
1 | ||
| 84310-89109 |
RN2#..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-89108 |
RN2#..RHD |
1 | ||
| 84332-89113 |
RN2#..RHD |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-89103 |
RN2# |
1 | ||
| 84331-20012 |
RN2# |
1 | ||
| 84339 - PLATE, PARKING LAMP SWITCH CAUTION | ||||
| 55472-89102 |
RN2#..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12021 |
RN2# |
1 | ||
| 84450-12020 |
RN2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-12020 |
RN2# |
1 | ||
| 84652-12010 |
RN2# |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-12020 |
RN2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-89103 |
RN2# |
1 | ||
| 84732-10020 |
RN2# |
1 | ||
| 84732-10020 |
RN22,27..RHD |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-89102 |
RN2# |
1 | ||
| 84731-89102 |
RN22,27..RHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89102 |
RN2# |
1 | ||
| 85500-12020 |
RN2# |
1 | ||
| Common parts | ||||
| 93319-13012 | ||||
| 93319-15014 | ||||

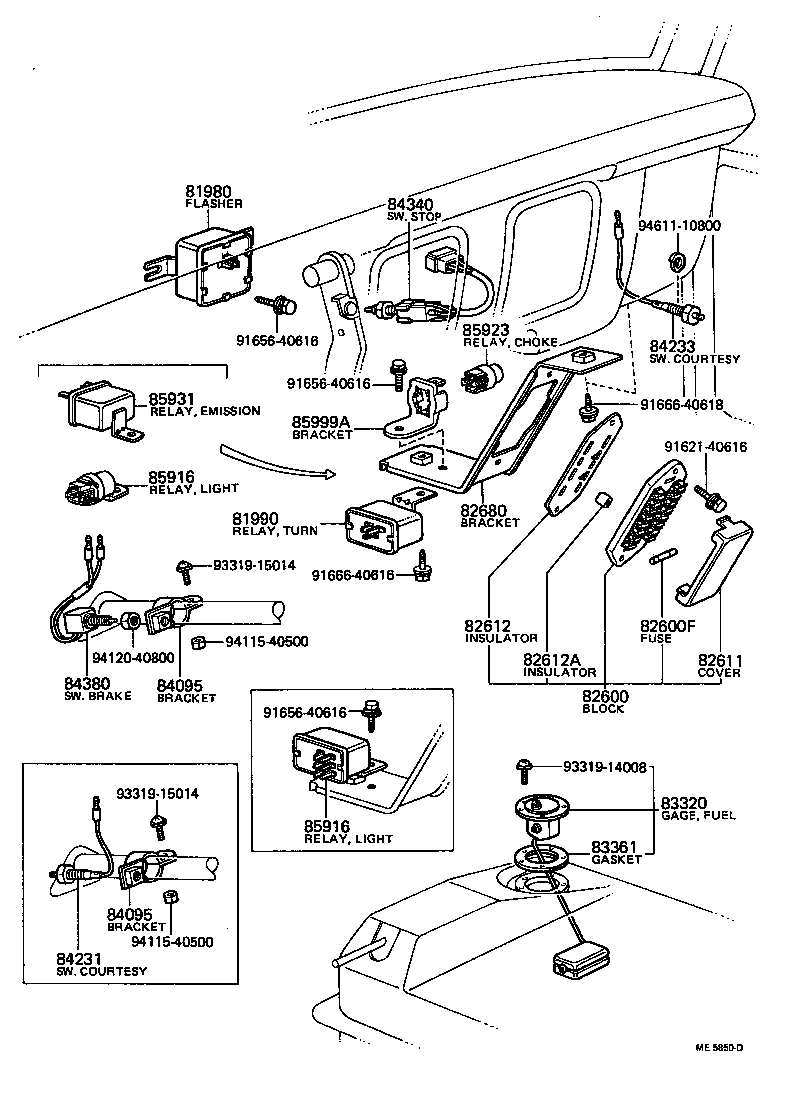

(7205-7807)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30030 |
RN2# |
1 | ||
| 81990 - RELAY ASSY, TURN SIGNAL | ||||
| 81991-25010 |
RN2#..RHD |
1 | ||
| 82600 - BLOCK ASSY, FUSE | ||||
| 82600-20903 |
RN2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62920 |
RN2# 20A,20A |
6 | ||
| 99118-62915 |
RN2# 15A,15A |
4 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-20030 |
RN2# |
1 | ||
| 82612 - INSULATOR, FUSE BLOCK TERMINAL | ||||
| 82612-20020 |
RN2# |
1 | ||
| 82612A - INSULATOR, FUSE BLOCK TERMINAL, B | ||||
| 82612-22020 |
RN2# |
2 | ||
| 82680 - BRACKET ASSY, FUSE BLOCK | ||||
| 82681-89101 |
RN2#..RHD |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RN2# |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-30011 |
RN2# |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-30011 |
RN2# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20010 |
RN2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-12011 |
RN2# FOR TANDEM |
1 | ||
| 84340-30023 |
RN2# FOR TANDEM |
1 | ||
| 84340-30012 |
RN2# |
1 | ||
| 84340-12012 |
RN2# FOR TANDEM |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
RN2# |
1 | ||
| 84380-30010 |
RN2# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85916-12010 |
RN2# |
1 | ||
| 85916-20010 |
RN2# |
1 | ||
| 85916-35010 |
RN2# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85916-12010 |
RN2# |
1 | ||
| 85916-20010 |
RN2# |
1 | ||
| 85916-35010 |
RN2# |
1 | ||
| 85923 - RELAY, CHOKE CONTROL | ||||
| 90987-02001 |
RN22,27 |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-26010 |
RN22,27 |
1 | ||
| Common parts | ||||
| 91621-40616 | ||||
| 91656-40616 | ||||
| 91666-40616 | ||||
| 91666-40618 | ||||
| 93319-14008 | ||||
| 93319-15014 | ||||
| 94115-40500 | ||||
| 94120-40800 | ||||
| 94611-10800 | ||||

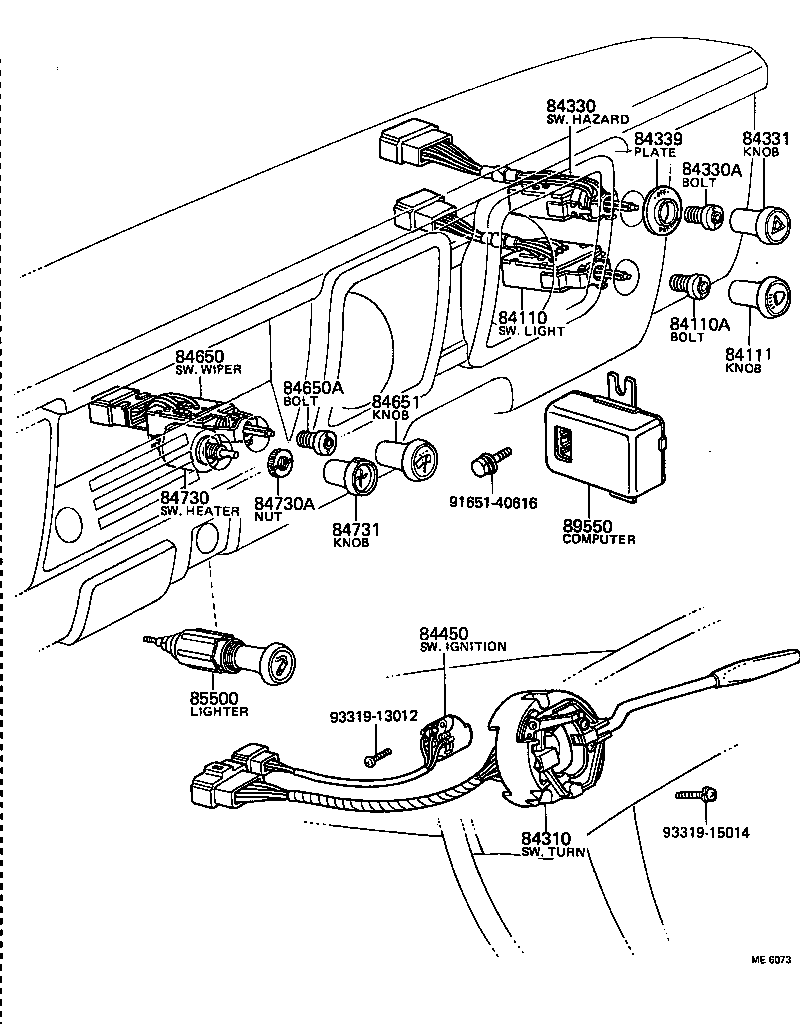

(7511-7807)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84110-89104 |
RN2# |
1 | ||
| 84112-89104 |
RN2# |
1 | ||
| 84110A - BOLT OR NUT, LIGHT CONTROL SWITCH SET | ||||
| 90984-01012 |
RN2# |
1 | ||
| 84111 - KNOB, LIGHT CONTROL SWITCH | ||||
| 84111-89103 |
RN2# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35100 |
RN2#..RHD |
1 | ||
| 84310-89109 |
RN2#..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-89108 |
RN2#..RHD |
1 | ||
| 84332-89113 |
RN2#..RHD |
1 | ||
| 84330A - BOLT OR NUT, HAZARD WARNING SIGNAL SWITCH SET | ||||
| 90984-01012 |
RN2#..RHD |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-89103 |
RN2# |
1 | ||
| 84331-20012 |
RN2# |
1 | ||
| 84339 - PLATE, PARKING LAMP SWITCH CAUTION | ||||
| 55472-89102 |
RN2#..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12021 |
RN2# |
1 | ||
| 84450-12020 |
RN2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-12020 |
RN2# |
1 | ||
| 84652-12010 |
RN2# |
1 | ||
| 84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET | ||||
| 90984-01012 |
RN2# |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-12020 |
RN2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-89103 |
RN2# |
1 | ||
| 84732-10020 |
RN2# |
1 | ||
| 84732-10020 |
RN22,27..RHD |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90179-10008 |
RN22,27..RHD |
1 | ||
| 90179-10008 |
RN2# |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-89102 |
RN2# |
1 | ||
| 84731-89102 |
RN22,27..RHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89102 |
RN2# |
1 | ||
| 85500-12020 |
RN2# |
1 | ||
| Common parts | ||||
| 91651-40616 | ||||
| 93319-13012 | ||||
| 93319-15014 | ||||
