RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

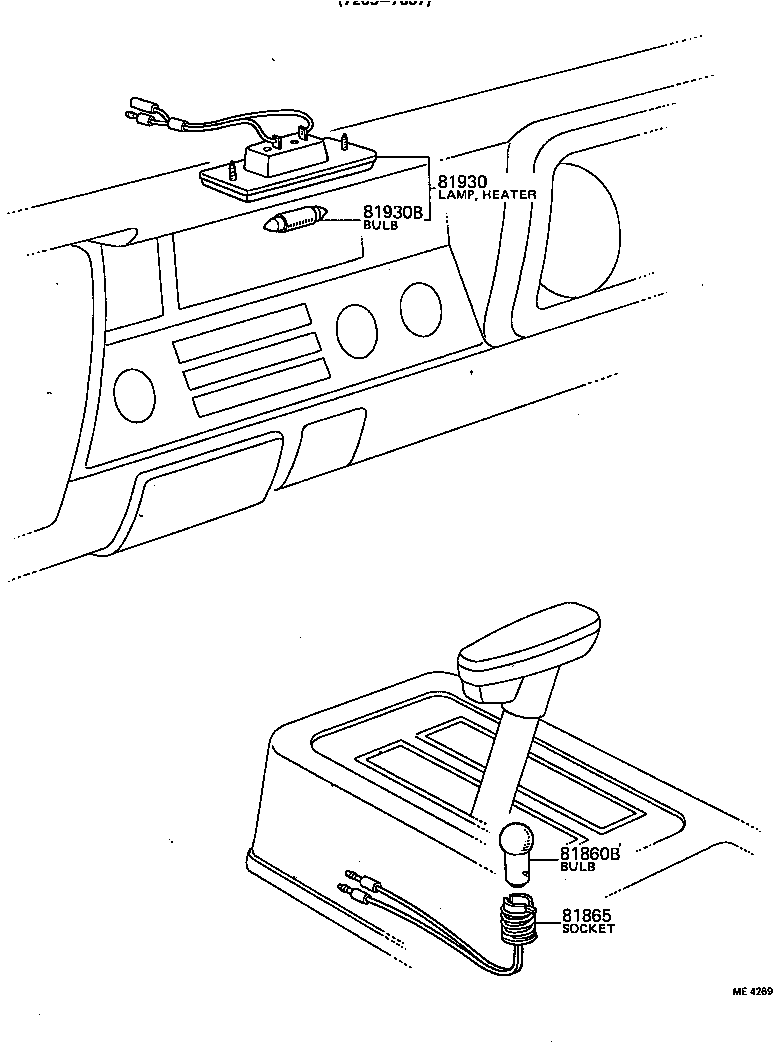

Click highlighted areas on diagram

diagram 81860B 81865 81930 81930B
Part # Description Qty Price
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-89102

RN2#

 1
81930-89104

RN2#

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11010

RN2#

12V 2W,12V 2W

 1
