RN22-JD (1975)
Toyota Hilux
Production
May 1975
-
Jul 1978
Engine
18R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

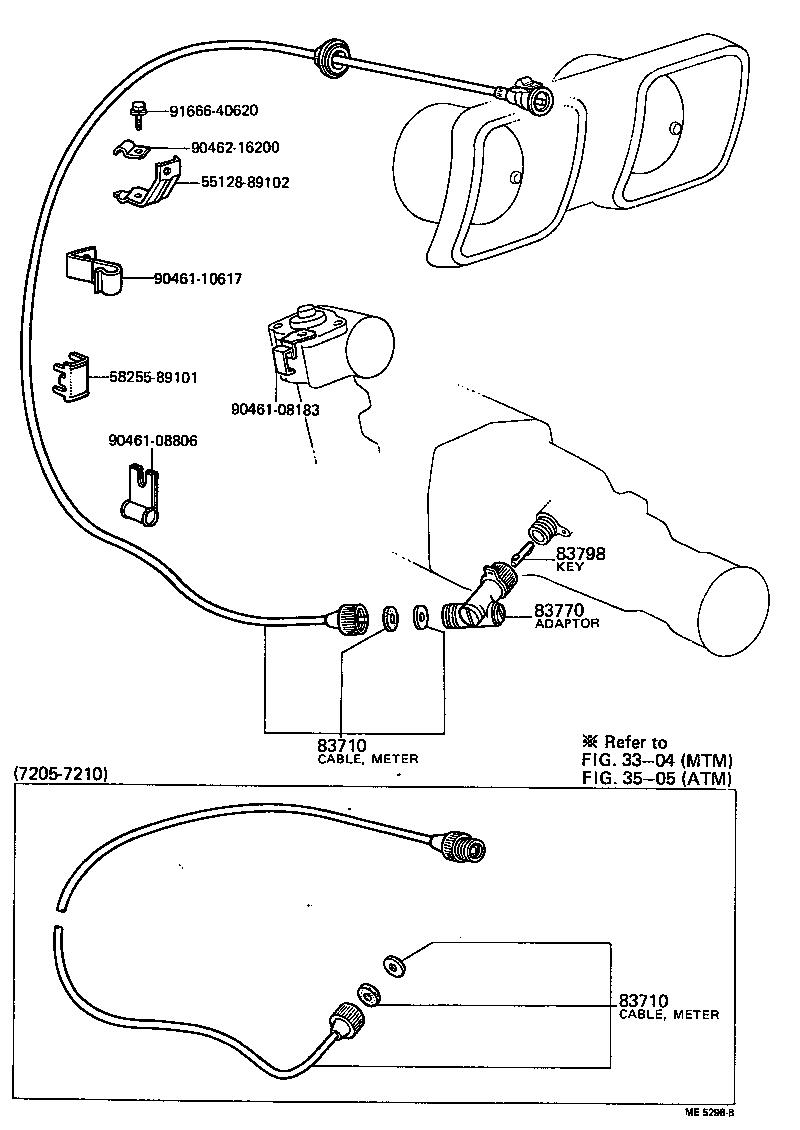

(7205-7807)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89803 |
RN2#..4H L=2000 |
1 | ||
| 83710-89805 |
RN2#..RHD..MTM L=2000 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-89803 |
RN2#..4H L=2000 |
1 | ||
| 83710-89805 |
RN2#..RHD..MTM L=2000 |
1 | ||
| Common parts | ||||
| 55128-89102 | ||||
| 58255-89101 | ||||
| 90461-08183 | ||||
| 90461-08806 | ||||
| 90461-10617 | ||||
| 90462-16200 | ||||
| 91666-40620 | ||||
| Linked diagrams | ||||
| 3304 | ||||
| 3505 | ||||

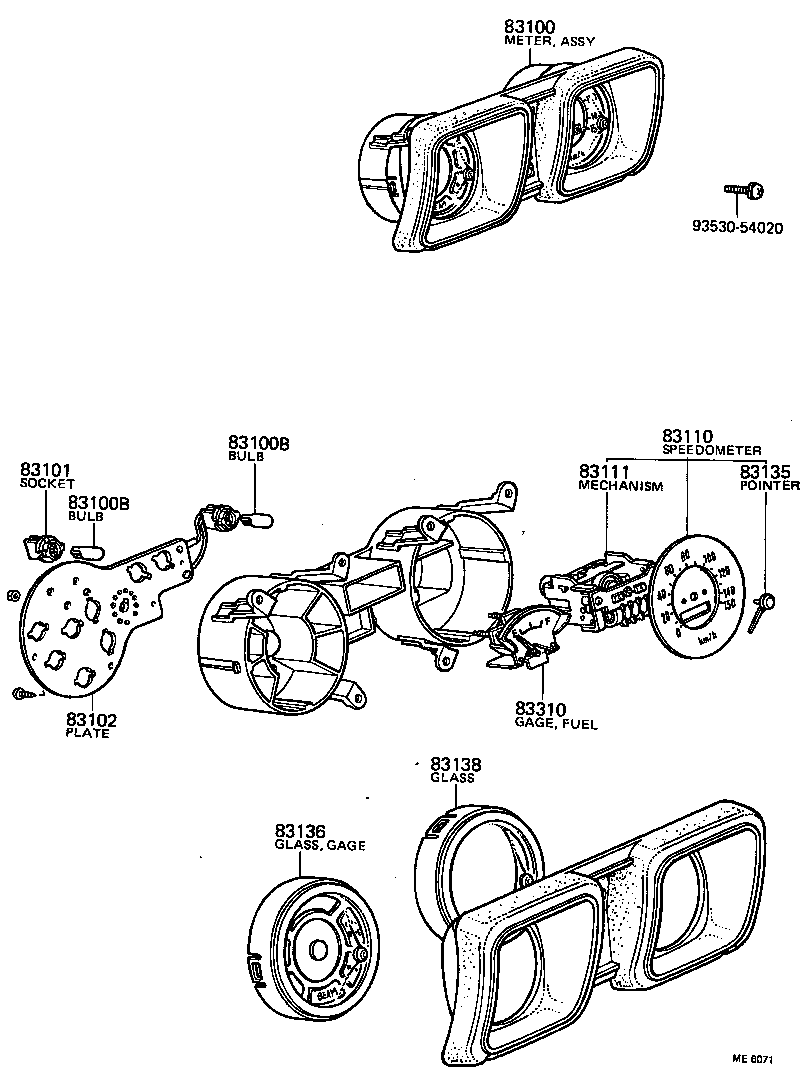

(7205-7511)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83100-89110 |
RN2# MILE |
1 | ||
| 83100-89111 |
RN2# KM. |
1 | ||
| 83100-89122 |
RN20,22,25 KM. |
1 | ||
| 83100-89122 |
RN2# KM. |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
RN2# 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
RN2# 12V 3.4W,12V 3.4W |
9 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RN2# |
8 | ||
| 83101-12010 |
RN2# |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-89103 |
RN2# |
1 | ||
| 83102-89122 |
RN2# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89106 |
RN2# KM. |
1 | ||
| 83110-89108 |
RN2# MILE |
1 | ||
| 83110-89122 |
RN20,22,25 KM. |
1 | ||
| 83110-89122 |
RN2# KM. |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83112-26014 |
RN2# KM. |
1 | ||
| 83136 - GLASS, GAGE METER | ||||
| 83141-89102 |
RN2# |
1 | ||
| 83141-89101 |
RN2# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-89102 |
RN2# |
1 | ||
| 83310-89103 |
RN2# |
1 | ||
| Common parts | ||||
| 93530-54020 | ||||

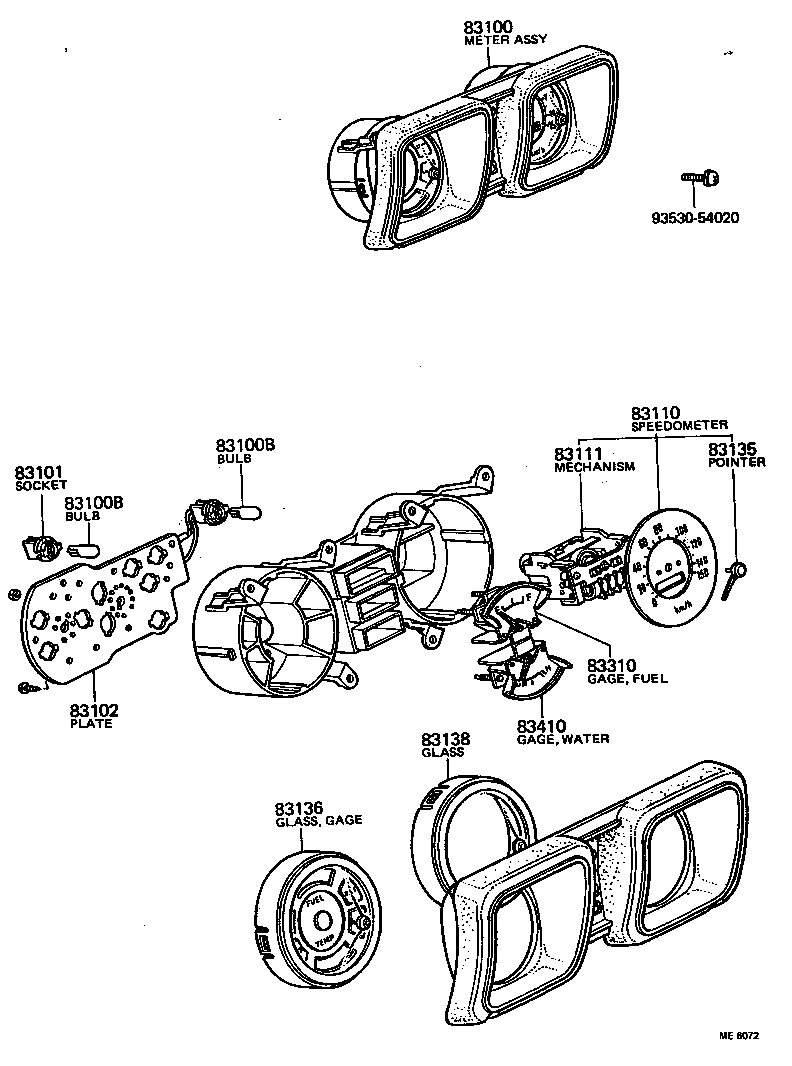

(7511-7807)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83100-89110 |
RN2# MILE |
1 | ||
| 83100-89111 |
RN2# KM. |
1 | ||
| 83100-89122 |
RN20,22,25 KM. |
1 | ||
| 83100-89122 |
RN2# KM. |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
RN2# 12V 3.4W,12V 3.4W |
9 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
RN2# 12V 3.4W,12V 3.4W |
9 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
RN2# |
8 | ||
| 83101-12010 |
RN2# |
8 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-89103 |
RN2# |
1 | ||
| 83102-89122 |
RN2# |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-89106 |
RN2# KM. |
1 | ||
| 83110-89108 |
RN2# MILE |
1 | ||
| 83110-89122 |
RN20,22,25 KM. |
1 | ||
| 83110-89122 |
RN2# KM. |
1 | ||
| 83111 - MECHANISM, SPEEDOMETER | ||||
| 83112-26014 |
RN2# KM. |
1 | ||
| 83136 - GLASS, GAGE METER | ||||
| 83141-89102 |
RN2# |
1 | ||
| 83141-89101 |
RN2# |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-89102 |
RN2# |
1 | ||
| 83310-89103 |
RN2# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-89102 |
RN2# |
1 | ||
| Common parts | ||||
| 93530-54020 | ||||
