RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

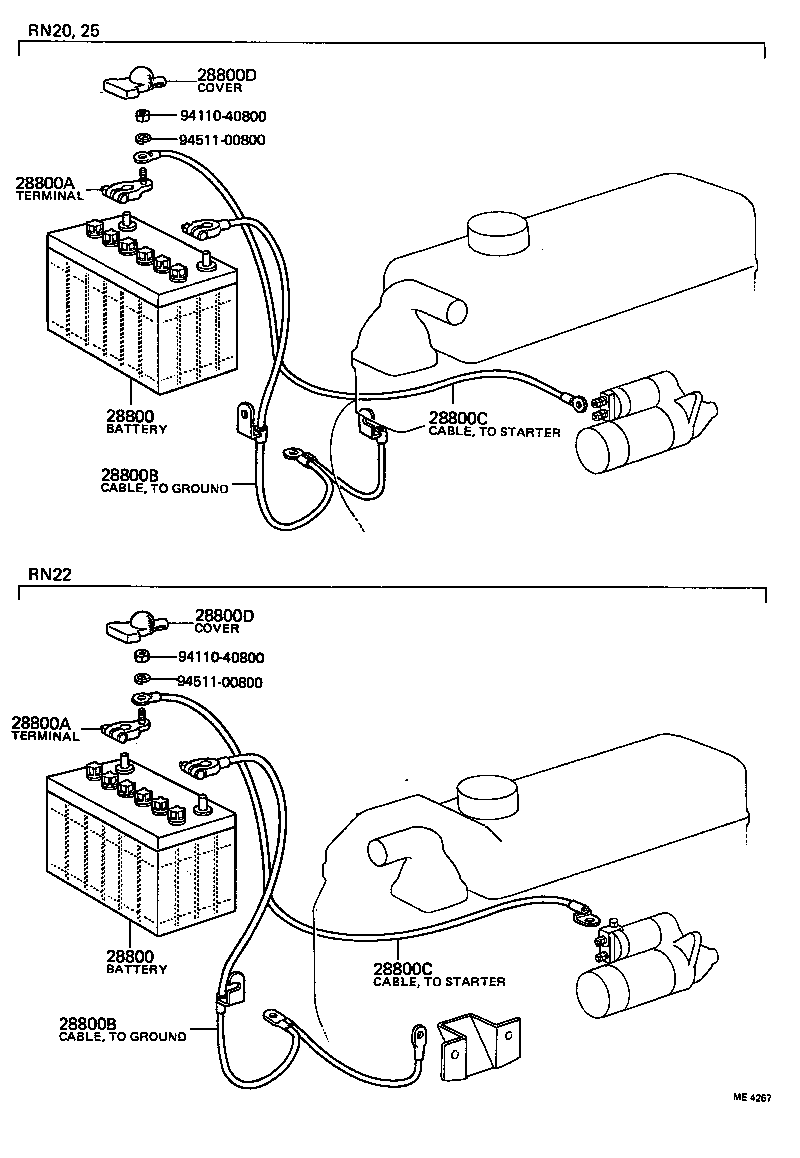

Click highlighted areas on diagram

diagram 28800 28800 28800A 28800A 28800B 28800B 28800C 28800C 28800D 28800D 9411040800 9411040800 9451100800 9451100800
Part # Description Qty Price
28800 - BATTERY
28800-30100

12R,18R..RN2#

NS40ZL,GS

 1
28800-26040

12R,18R..RN2#

34B19L,NS40ZAL,GS

 1
28800-21021

12R,18R..RN2#

NS40ZL KOBE

 1
28800 - BATTERY
28800-30100

12R,18R..RN2#

NS40ZL,GS

 1
28800-26040

12R,18R..RN2#

34B19L,NS40ZAL,GS

 1
28800-21021

12R,18R..RN2#

NS40ZL KOBE

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05006

12R,18R..RN2#

FOR NS40ZL

 1
90982-05007

12R,18R..RN2#

FOR N40L & N50ZL

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05006

12R,18R..RN2#

FOR NS40ZL

 1
90982-05007

12R,18R..RN2#

FOR N40L & N50ZL

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01149

12R,18R..RN2#

 1
90982-01254

12R#,18R..RN2#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01149

12R,18R..RN2#

 1
90982-01254

12R#,18R..RN2#

 1
Common parts
94110-40800
94511-00800
