RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

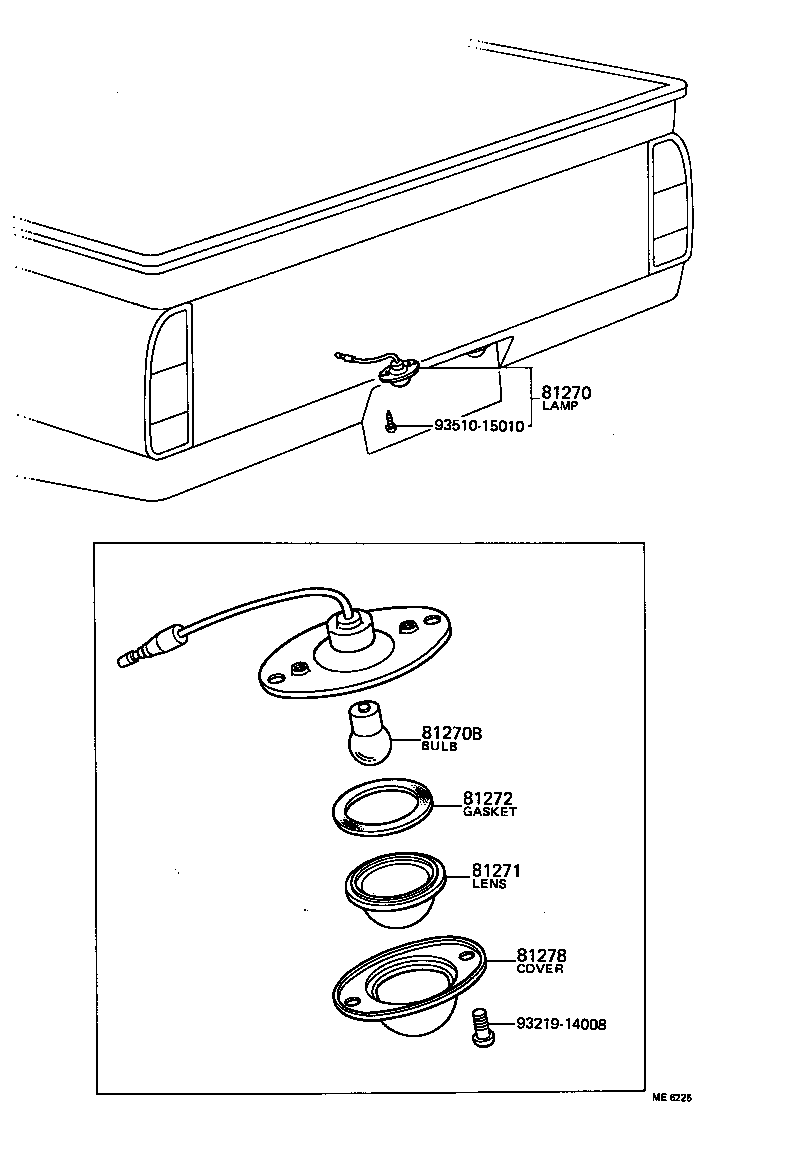

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 9321914008 9351015010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-89802

RN2#

 2
81270-89807

RN2#

 2
81270-89804

RN2#

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12005

RN2#

12V 8W,12V 8W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10010

RN2#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

RN2#

 2
81278 - COVER, LICENSE PLATE LAMP
81278-30040

RN2#

 2
Common parts
93219-14008
93510-15010
