Toyota Hilux RN22 ACCELERATOR LINK

RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978

Engine 18R

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

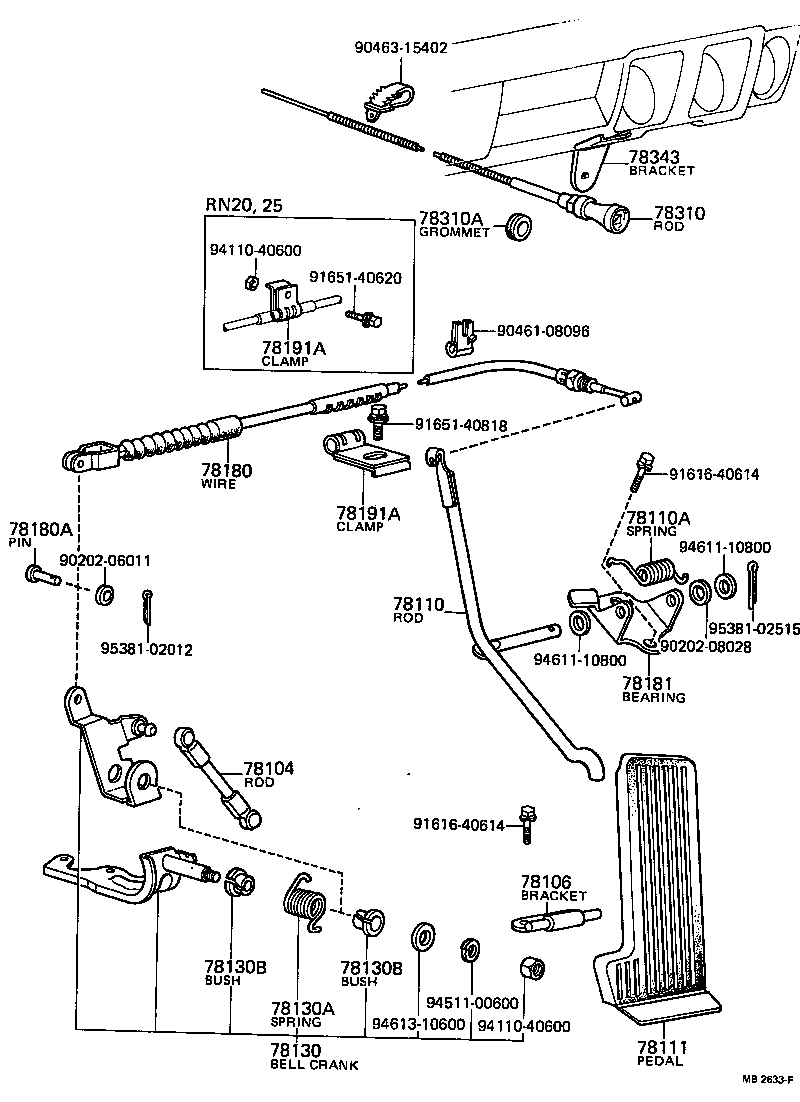

Click highlighted areas on diagram

Part #	Description	Period	Qty
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-20051	RN2#..RHD	05/1972 - 09/1973	1
78104-22010	RN22..RHD	11/1975 - 08/1977	1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78106-89103	RN2#	05/1972 - 07/1978	1
78110 - ROD ASSY, ACCELERATOR PEDAL
78101-89110	RN2#..RHD	05/1972 - 11/1975	1
78101-89114	RN2#..RHD	11/1975 - 07/1978	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-20073	RN2#	05/1972 - 09/1973	1
78111 - PEDAL, ACCELERATOR
78111-89102	RN2#	05/1972 - 07/1978	1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-89101	RN2#..RHD	05/1972 - 09/1973	1
78130-89104	RN22..MTM	11/1975 - 01/1977	1
78130-89106	RN22..RHD..MTM	01/1977 - 05/1977	1
78130-89107	RN22..RHD	05/1977 - 08/1977	1
78130A - SPRING (FOR ACCELERATOR ROD RETURN)
90508-16087	RN2#..RHD	05/1972 - 09/1973	1
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08024	RN2#..RHD	05/1972 - 11/1975	2
78130B - BUSH, ACCELERATOR BELLCRANK
90386-08024	RN2#..RHD	05/1972 - 11/1975	2
78180 - WIRE ASSY, ACCELERATOR
78180-89116	RN22,27..RHD	08/1977 - 07/1978	1
78180-89108	RN2#..RHD	05/1972 - 09/1973	1
78180A - PIN, ACCELERATOR WIRE SET
90240-05071	RN2#..RHD	05/1972 - 08/1977	1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78181-89104	RN2#..RHD	05/1972 - 11/1975	1
78181-89108	RN2#..RHD	11/1975 - 07/1978	1
Common parts
90202-06011
90202-08028
90461-08096
90463-15402
91616-40614
91651-40620
91651-40818
94110-40600
94511-00600
94611-10800
94613-10600
95381-02012
95381-02515

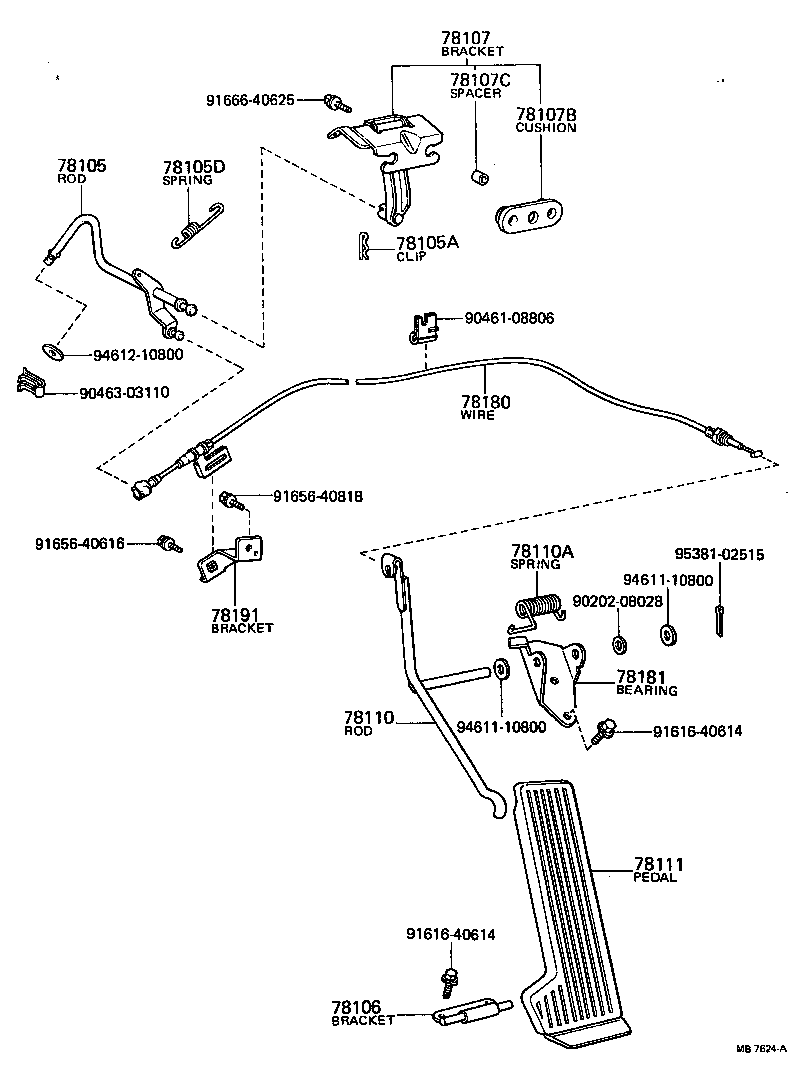

Click highlighted areas on diagram

Part #	Description	Period	Qty
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-89110	RN22,27..RHD	08/1977 - 07/1978	1
78105A - CLIP (FOR ACCELERATOR TORQUE ROD)
90468-16012	RN22,27	08/1977 - 07/1978	1
78105D - SPRING (FOR ACCELERATOR TORQUE ROD)
90506-12454	RN2#	08/1977 - 07/1978	1
78106 - BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT
78106-89103	RN2#	05/1972 - 07/1978	1
78107 - BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
78107-89106	RN22,27..RHD	08/1977 - 07/1978	1
78107B - CUSHION (FOR ACCELERATOR TORQUE ROD BRACKET)
78143-89102	RN22,27	08/1977 - 07/1978	1
78107C - SPACER (FOR ACCELERATOR TORQUE ROD BRACKET)
90560-06006	RN22,27	08/1977 - 07/1978	2
78110 - ROD ASSY, ACCELERATOR PEDAL
78101-89110	RN2#..RHD	05/1972 - 11/1975	1
78101-89114	RN2#..RHD	11/1975 - 07/1978	1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-20073	RN2#	05/1972 - 09/1973	1
78111 - PEDAL, ACCELERATOR
78111-89102	RN2#	05/1972 - 07/1978	1
78180 - WIRE ASSY, ACCELERATOR
78180-89116	RN22,27..RHD	08/1977 - 07/1978	1
78180-89108	RN2#..RHD	05/1972 - 09/1973	1
78181 - BEARING, ACCELERATOR PEDAL ROD SUPPORT
78181-89104	RN2#..RHD	05/1972 - 11/1975	1
78181-89108	RN2#..RHD	11/1975 - 07/1978	1
78191 - BRACKET, ACCELERATOR WIRE SUPPORT
78186-89102	RN22,27..RHD	08/1977 - 07/1978	1
Common parts
90202-08028
90461-08806
90463-03110
91616-40614
91656-40616
91656-40818
91666-40625
94611-10800
94612-10800
95381-02515
