RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

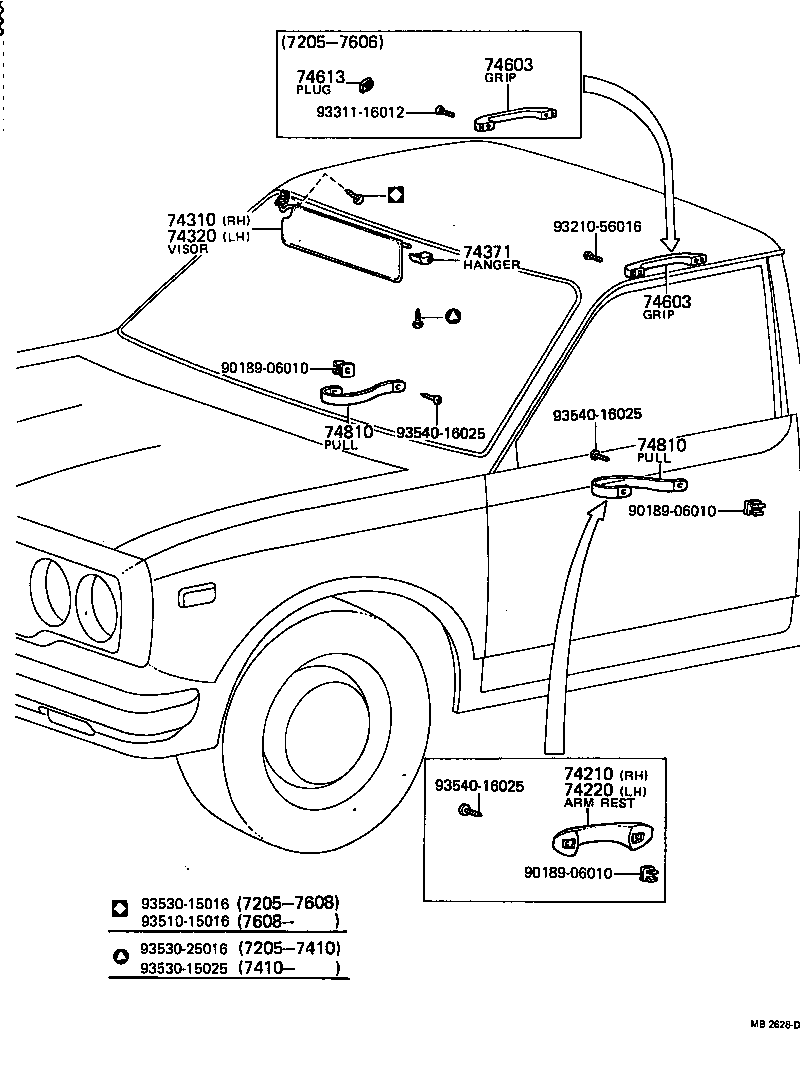

Click highlighted areas on diagram

diagram 74210 74220 74310 74320 74371 74603 74603 74613 74810 74810 9018906010 9018906010 9018906010 9321056016 9331116012 9351015016 9353015016 9353015025 9353025016 9354016025 9354016025 9354016025
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-1202001

RN2#

BLACK,BLACK

 1
74210-1202046

RN22,27..RHD

BROWN,BROWN

 1
74210-1202014

RN22,27..RHD

BLUE,BLUE

 1
74220 - ARMREST ASSY, FRONT, LH
74210-1202001

RN2#

BLACK,BLACK

 1
74210-1202046

RN22,27..RHD

BROWN,BROWN

 1
74210-1202014

RN22,27..RHD

BLUE,BLUE

 1
74310 - VISOR ASSY, RH
74310-8910403

RN2#

LIGHT GRAY,GRAY

 1
74310-89107

RN20,22,25

 1
74320 - VISOR ASSY, LH
74310-8910403

RN2#

LIGHT GRAY,GRAY

 1
74310-89107

RN20,22,25

 1
74371 - HANGER, VISOR
74371-89101

RN2#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-1001003

RN2#

GRAY,GRAY

 1
74611-89101

RN2#

GRAY

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-1001003

RN2#

GRAY,GRAY

 1
74611-89101

RN2#

GRAY

 1
74613 - PLUG, ASSIST GRIP
74613-1002003

RN2#

GRAY,GRAY

 2
Common parts
90189-06010
93210-56016
93311-16012
93510-15016
93530-15016
93530-15025
93530-25016
93540-16025
