RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

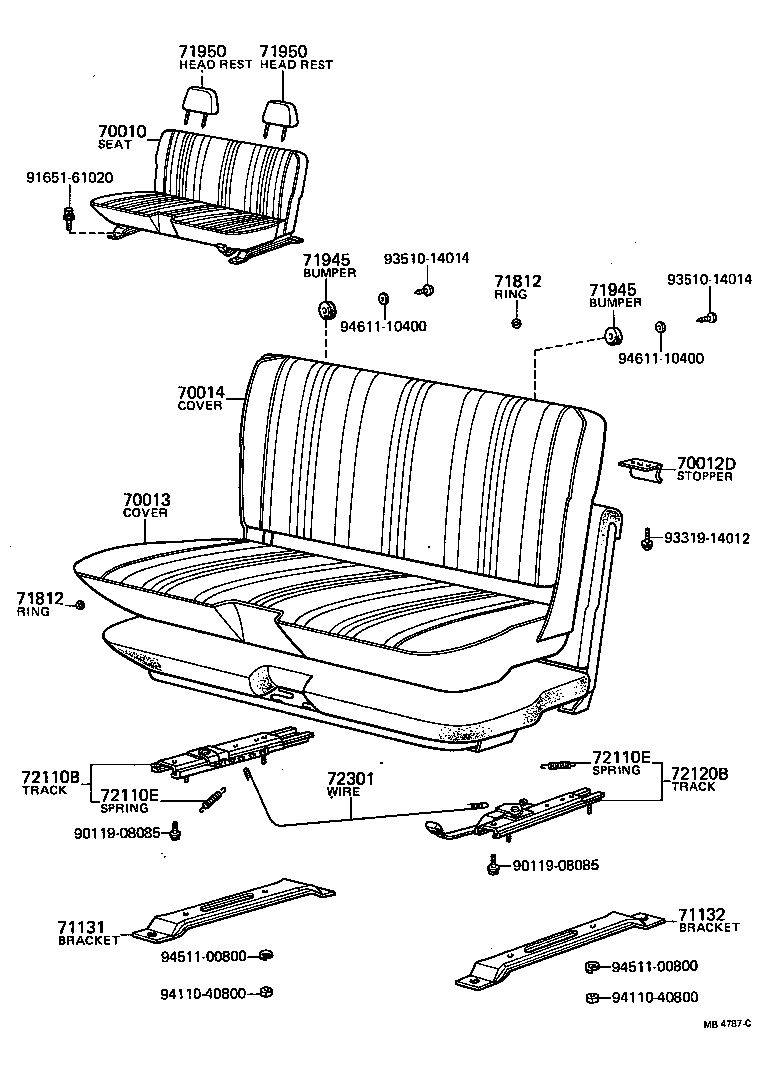

(7205-7608)RN20,25 ; (7205-7608)RN22..4H

Click highlighted areas on diagram

diagram 70010 70012D 70013 70014 71131 71132 71812 71812 71945 71945 71950 71950 72110B 72110E 72110E 72120B 72301 9011908085 9011908085 9165161020 9331914012 9351014014 9351014014 9411040800 9411040800 9451100800 9451100800 9461110400 9461110400
Part # Description Qty Price
70010 - SEAT ASSY, NO.1
71100-8911901

RN2#..4H

BLACK,BLACK

 1
71100-8916601

RN22..4H

BLACK,BLACK

 1
71100-8916606

RN22..4H

TAN,BROWN

 1
71100-8916706

RN22..4H

TAN,BROWN

 1
71100-8916701

RN22..4H

BLACK,BLACK

 1
71100-8932601

RN22..RHD..MTM

GRADE UP SEAT,RH. BLACK,BLACK

 1
71200-8913106

RN22..RHD..MTM

GRADE UP SEAT,LH. TAN,BROWN

 1
71100-8932606

RN22..RHD..MTM

GRADE UP SEAT,RH. TAN,BROWN

 1
71100-8932604

RN22..RHD..MTM

GRADE UP SEAT,RH. BLUE,BLUE

 1
71200-8913101

RN22..RHD..MTM

GRADE UP SEAT,LH. BLACK,BLACK

 1
71200-8913104

RN22..RHD..MTM

GRADE UP SEAT,LH. BLUE,BLUE

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71071-8912801

RN22..4H

BLACK,BLACK

 1
71071-8913406

RN22..4H

TAN,BROWN

 1
71071-8912806

RN22..4H

TAN,BROWN

 1
71071-8911201

RN2#

BLACK,BLACK

 1
71071-8913401

RN22..4H

BLACK,BLACK

 1
71071-8914001

RN22..4H

BLACK,BLACK

 1
71071-8914201

RN22..4H

BLACK,BLACK

 1
71071-8914206

RN22..4H

TAN,BROWN

 1
71071-8914204

RN22..4H

BLUE,BLUE

 1
71071-8914006

RN22..4H

TAN,BROWN

 1
71071-8914706

RN22..4H

GRADE UP SEAT,TAN,BROWN

 1
71071-8914701

RN22..4H

GRADE UP SEAT,BLACK,BLACK

 1
71071-8914804

RN20,22,25..RHD..MTM

GRADE UP SEAT,BLUE,BLUE

 2
71071-8914801

RN20,22,25..RHD..MTM

GRADE UP SEAT,BLACK,BLACK

 2
71071-8914806

RN20,22,25..RHD..MTM

GRADE UP SEAT,TAN,BROWN

 2
71071-8914704

RN22..4H

GRADE UP SEAT,BLUE,BLUE

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71073-8911201

RN2#

BLACK,BLACK

 1
71073-8913401

RN22..4H

BLACK,BLACK

 1
71073-8913406

RN22..4H

TAN,BROWN

 1
71073-8915206

RN22..4H

TAN,BROWN

 1
71073-8915401

RN22..4H

BLACK,BLACK

 1
71073-8915406

RN22..4H

TAN,BROWN

 1
71073-8915201

RN22..4H

BLACK,BLACK

 1
71073-8914206

RN22..4H

TAN,BROWN

 1
71073-8914201

RN22..4H

BLACK,BLACK

 1
71073-8916001

RN22..4H

FOR L/HR.,GRADE UP SEAT,BLACK,BLACK

 1
71073-8916004

RN22..4H

FOR L/HR.,GRADE UP SEAT,BLUE,BLUE

 1
71073-8915404

RN22..4H

BLUE,BLUE

 1
71073-8916206

RN22..RHD..MTM

GRADE UP SEAT,TAN,BROWN

 2
71073-8916006

RN22..4H

FOR L/HR.,GRADE UP SEAT,TAN,BROWN

 1
71073-8916204

RN22..RHD..MTM

GRADE UP SEAT,BLUE,BLUE

 2
71073-8916201

RN22..RHD..MTM

GRADE UP SEAT,BLACK,BLACK

 2
71131 - BRACKET, FRONT SEAT SET, OUTER RH
71131-89102

RN2#

 1
71131-89110

RN22..4H

 1
71131-89110

RN22..4H

 1
71132 - BRACKET, FRONT SEAT SET, OUTER LH
71132-89107

RN2#..MTM

FOR BN.

 1
71132-89101

RN2#

 1
71132-89107

RN2#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71196-89101

RN2#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71196-89101

RN2#

 1
71945 - BUMPER, SEAT BACK
71158-89103

RN2#

 2
71945 - BUMPER, SEAT BACK
71158-89103

RN2#

 2
72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72110-89118

RN22..4H

 1
72110-89105

RN2#..RHD

 1
72110-89125

RN22..4H

 1
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
72516-89102

RN2#

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
72516-89102

RN2#

 2
72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
72120-89116

RN22..4H

 1
72120-89122

RN22..4H

 1
72120-89105

RN2#..RHD

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72311-89102

RN22..4H

 1
72311-89103

RN22..4H

 1
72311-89105

RN22..4H

 1
72311-89102

RN22..4H

 1
Common parts
90119-08085
91651-61020
93319-14012
93510-14014
94110-40800
94511-00800
94611-10400

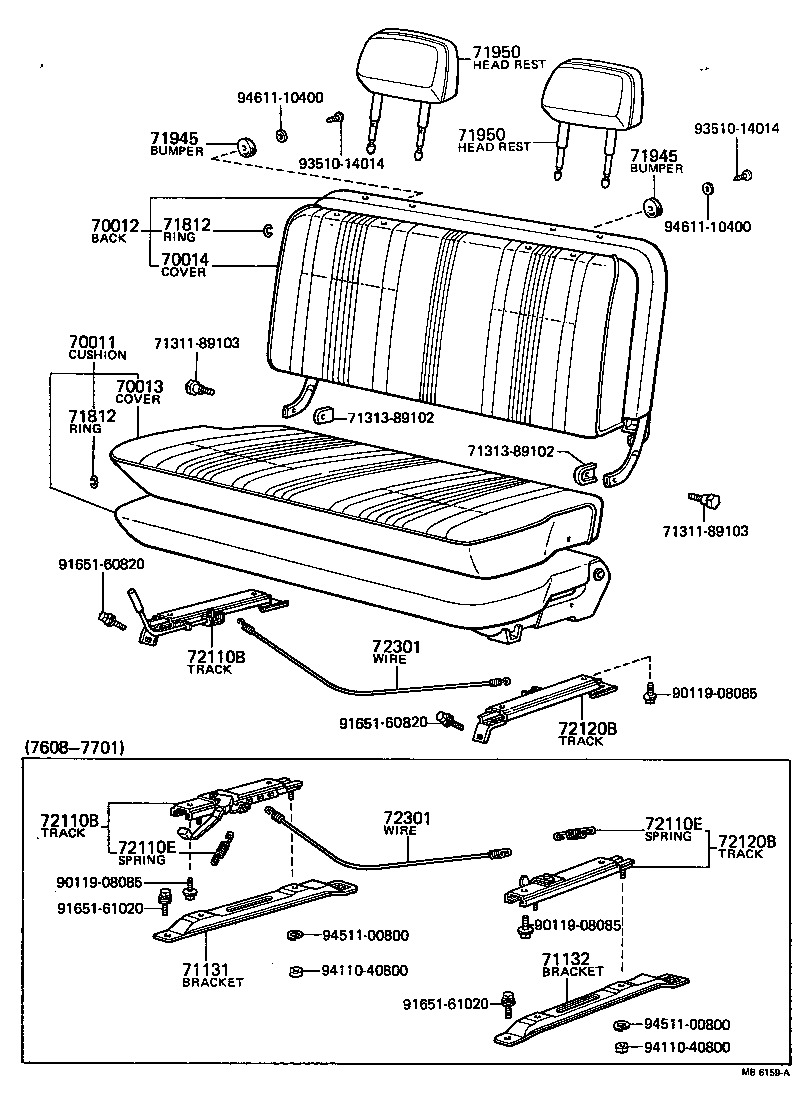

(7608-7807)RN22..4H ; (7608-7808)RN20,25

Click highlighted areas on diagram

diagram 70011 70012 70013 70014 71131 71132 7131189103 7131189103 7131389102 7131389102 71812 71812 71945 71945 71950 71950 72110B 72110B 72110E 72110E 72120B 72120B 72301 72301 9011908085 9011908085 9011908085 9165160820 9165160820 9165161020 9165161020 9351014014 9351014014 9411040800 9411040800 9451100800 9451100800 9461110400 9461110400
Part # Description Qty Price
70011 - CUSHION ASSY, NO.1 SEAT
71410-8912301

RN22..4H

BLACK,BLACK

 1
71410-8912306

RN22..4H

TAN,BROWN

 1
71410-8913001

RN22..4H

BLACK,BLACK

 1
71410-8913006

RN22..4H

TAN,BROWN

 1
71410-8913004

RN22..4H

BLUE,BLUE

 1
71410-8913304

RN22..4H

GRADE UP SEAT,BLUE,BLUE

 1
71410-8913301

RN22..4H

GRADE UP SEAT,BLACK,BLACK

 1
71410-8913306

RN22..4H

GRADE UP SEAT,TAN,BROWN

 1
70012 - BACK ASSY, NO.1 SEAT
71430-8912306

RN22..4H

TAN,BROWN

 1
71430-8912501

RN22..4H

BLACK,BLACK

 1
71430-8912504

RN22..4H

BLUE,BLUE

 1
71430-8912301

RN22..4H

BLACK,BLACK

 1
71430-8912506

RN22..4H

TAN,BROWN

 1
71430-8912906

RN22..4H

FOR L/HR.,GRADE UP SEAT,TAN,BROWN

 1
71430-8912901

RN22..4H

FOR L/HR.,GRADE UP SEAT,BLACK,BLACK

 1
71430-8912904

RN22..4H

FOR L/HR.,GRADE UP SEAT,BLUE,BLUE

 1
70013 - COVER ASSY, NO.1 SEAT CUSHION
71071-8912801

RN22..4H

BLACK,BLACK

 1
71071-8913406

RN22..4H

TAN,BROWN

 1
71071-8912806

RN22..4H

TAN,BROWN

 1
71071-8911201

RN2#

BLACK,BLACK

 1
71071-8913401

RN22..4H

BLACK,BLACK

 1
71071-8914001

RN22..4H

BLACK,BLACK

 1
71071-8914201

RN22..4H

BLACK,BLACK

 1
71071-8914206

RN22..4H

TAN,BROWN

 1
71071-8914204

RN22..4H

BLUE,BLUE

 1
71071-8914006

RN22..4H

TAN,BROWN

 1
71071-8914706

RN22..4H

GRADE UP SEAT,TAN,BROWN

 1
71071-8914701

RN22..4H

GRADE UP SEAT,BLACK,BLACK

 1
71071-8914804

RN20,22,25..RHD..MTM

GRADE UP SEAT,BLUE,BLUE

 2
71071-8914801

RN20,22,25..RHD..MTM

GRADE UP SEAT,BLACK,BLACK

 2
71071-8914806

RN20,22,25..RHD..MTM

GRADE UP SEAT,TAN,BROWN

 2
71071-8914704

RN22..4H

GRADE UP SEAT,BLUE,BLUE

 1
70014 - COVER ASSY, NO.1 SEAT BACK
71073-8911201

RN2#

BLACK,BLACK

 1
71073-8913401

RN22..4H

BLACK,BLACK

 1
71073-8913406

RN22..4H

TAN,BROWN

 1
71073-8915206

RN22..4H

TAN,BROWN

 1
71073-8915401

RN22..4H

BLACK,BLACK

 1
71073-8915406

RN22..4H

TAN,BROWN

 1
71073-8915201

RN22..4H

BLACK,BLACK

 1
71073-8914206

RN22..4H

TAN,BROWN

 1
71073-8914201

RN22..4H

BLACK,BLACK

 1
71073-8916001

RN22..4H

FOR L/HR.,GRADE UP SEAT,BLACK,BLACK

 1
71073-8916004

RN22..4H

FOR L/HR.,GRADE UP SEAT,BLUE,BLUE

 1
71073-8915404

RN22..4H

BLUE,BLUE

 1
71073-8916206

RN22..RHD..MTM

GRADE UP SEAT,TAN,BROWN

 2
71073-8916006

RN22..4H

FOR L/HR.,GRADE UP SEAT,TAN,BROWN

 1
71073-8916204

RN22..RHD..MTM

GRADE UP SEAT,BLUE,BLUE

 2
71073-8916201

RN22..RHD..MTM

GRADE UP SEAT,BLACK,BLACK

 2
71131 - BRACKET, FRONT SEAT SET, OUTER RH
71131-89102

RN2#

 1
71131-89110

RN22..4H

 1
71131-89110

RN22..4H

 1
71132 - BRACKET, FRONT SEAT SET, OUTER LH
71132-89107

RN2#..MTM

FOR BN.

 1
71132-89101

RN2#

 1
71132-89107

RN2#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71196-89101

RN2#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
71196-89101

RN2#

 1
71945 - BUMPER, SEAT BACK
71158-89103

RN2#

 2
71945 - BUMPER, SEAT BACK
71158-89103

RN2#

 2
72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72110-89118

RN22..4H

 1
72110-89105

RN2#..RHD

 1
72110-89125

RN22..4H

 1
72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72110-89118

RN22..4H

 1
72110-89105

RN2#..RHD

 1
72110-89125

RN22..4H

 1
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
72516-89102

RN2#

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
72516-89102

RN2#

 2
72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
72120-89116

RN22..4H

 1
72120-89122

RN22..4H

 1
72120-89105

RN2#..RHD

 1
72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
72120-89116

RN22..4H

 1
72120-89122

RN22..4H

 1
72120-89105

RN2#..RHD

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72311-89102

RN22..4H

 1
72311-89103

RN22..4H

 1
72311-89105

RN22..4H

 1
72311-89102

RN22..4H

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72311-89102

RN22..4H

 1
72311-89103

RN22..4H

 1
72311-89105

RN22..4H

 1
72311-89102

RN22..4H

 1
Common parts
71311-89103
71313-89102
90119-08085
91651-60820
91651-61020
93510-14014
94110-40800
94511-00800
94611-10400
