RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

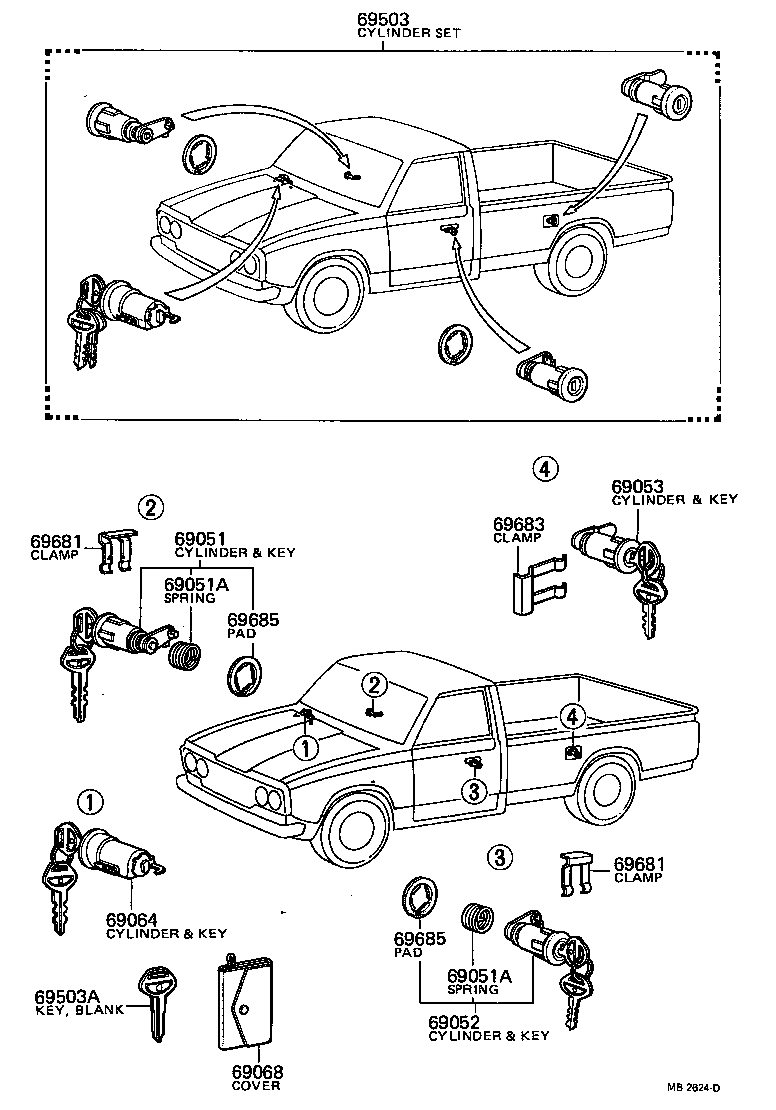

Click highlighted areas on diagram

diagram 69051 69051A 69051A 69052 69053 69064 69068 69503 69503A 69681 69681 69683 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-89803

RN2#

 1
69051-19015

RN2#

 1
69051A - SPRING, DOOR LOCK CYLINDER
90508-09279

RN2#

 2
69051A - SPRING, DOOR LOCK CYLINDER
90508-09279

RN2#

 2
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-19015

RN2#

 1
69052-89803

RN2#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69064-89102

RN22,27..RHD

FOR W/STEERING LOCK

 1
69068 - COVER SUB-ASSY, KEY
84041-89102

RN2#

 1
69503A - KEY, BLANK
90999-00054

RN2#

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

RN2#

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20010

RN2#

 2
69685 - PAD, LOCK CYLINDER
69685-12010

RN2#

 2
69685 - PAD, LOCK CYLINDER
69685-12010

RN2#

 2
