RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7609-7807)

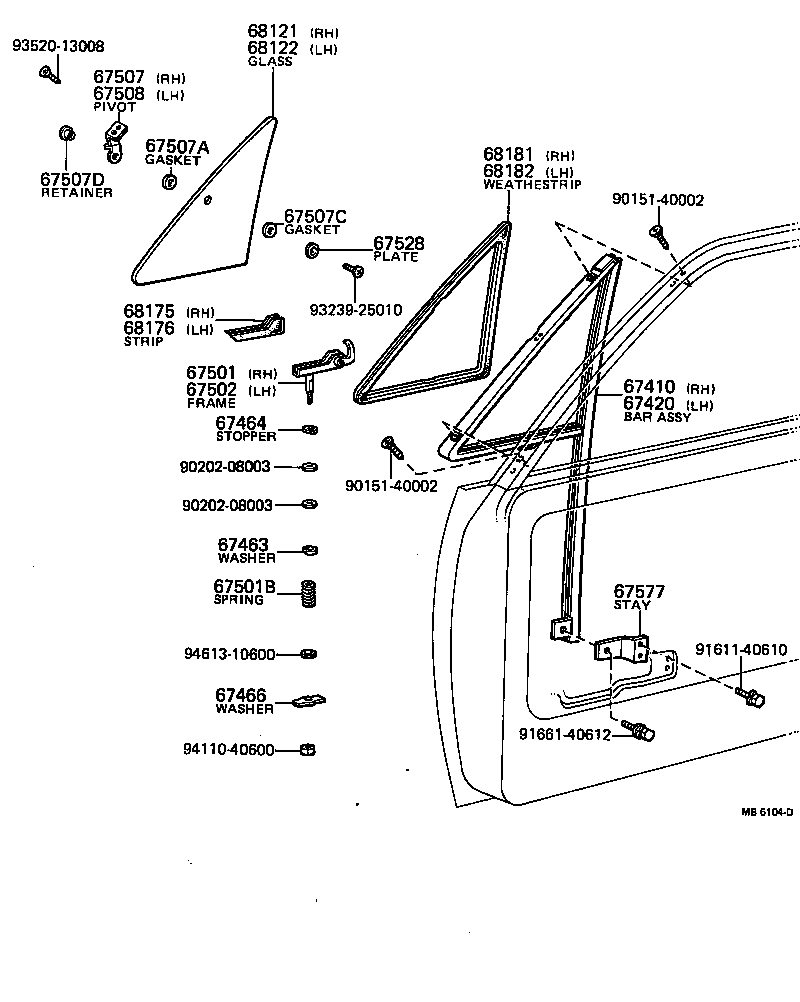

Click highlighted areas on diagram

diagram 67410 67420 67463 67464 67466 67501 67501B 67502 67507 67507A 67507C 67507D 67508 67528 67577 68121 68122 68175 68176 68181 68182 9015140002 9015140002 9020208003 9020208003 9161140610 9166140612 9323925010 9352013008 9411040600 9461310600
Part # Description Qty Price
67410 - BAR ASSY, FRONT DOOR WINDOW DIVISION, RH
67401-89103

RN2#

 1
67420 - BAR ASSY, FRONT DOOR WINDOW DIVISION, LH
67402-89103

RN2#

 1
67463 - WASHER, FRONT DOOR VENTILATING WIHDOW LOWER PIVOT
67463-20010

RN2#

 2
67464 - STOPPER, FRONT DOOR VENTILATING WINDOW OPENING
67464-89102

RN2#

 2
67466 - WASHER, LOCK(FOR VENT WINDOW GLASS FRAME)
67466-89101

RN2#

 2
67501 - FRAME SUB-ASSY, VENT WINDOW GLASS, RH
67505-89101

RN2#

 1
67502 - FRAME SUB-ASSY, VENT WINDOW GLASS, LH
67506-89101

RN2#

 1
67507 - PIVOT SUB-ASSY, VENT WINDOW, UPPER RH
67507-89101

RN2#

 1
67507A - GASKET, VENT WINDOW PIVOT, UPPER NO.1
90430-07001

RN2#

 2
67507C - GASKET, VENT WINDOW PIVOT, UPPER NO.2
90430-04003

RN2#

 2
67507D - RETAINER, VENT WINDOW PIVOT, UPPER
62735-89101

RN2#

 2
67508 - PIVOT SUB-ASSY, VENT WINDOW, UPPER LH
67508-89101

RN2#

 1
67528 - PLATE, VENT WINDOW UPPER PIVOT
67528-89101

RN2#

 2
67577 - STAY, VENT WINDOW CHANNEL, LOWER
67576-89101

RN2#

 2
68121 - GLASS, VENT WINDOW, RH
68121-89106

RN2#

 1
68122 - GLASS, VENT WINDOW, LH
68122-89104

RN2#

 1
68175 - WEATHERSTRIP, VENT WINDOW FRAME, RH
68175-89102

RN2#

 1
68176 - WEATHERSTRIP, VENT WINDOW FRAME, LH
68175-89103

RN2#

 1
68181 - WEATHERSTRIP, VENT WINDOW, NO.1 RH
68181-89103

RN2#

 1
68182 - WEATHERSTRIP, VENT WINDOW, NO.1 LH
68182-89103

RN2#

 1
Common parts
90151-40002
90202-08003
91611-40610
91661-40612
93239-25010
93520-13008
94110-40600
94613-10600
