RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

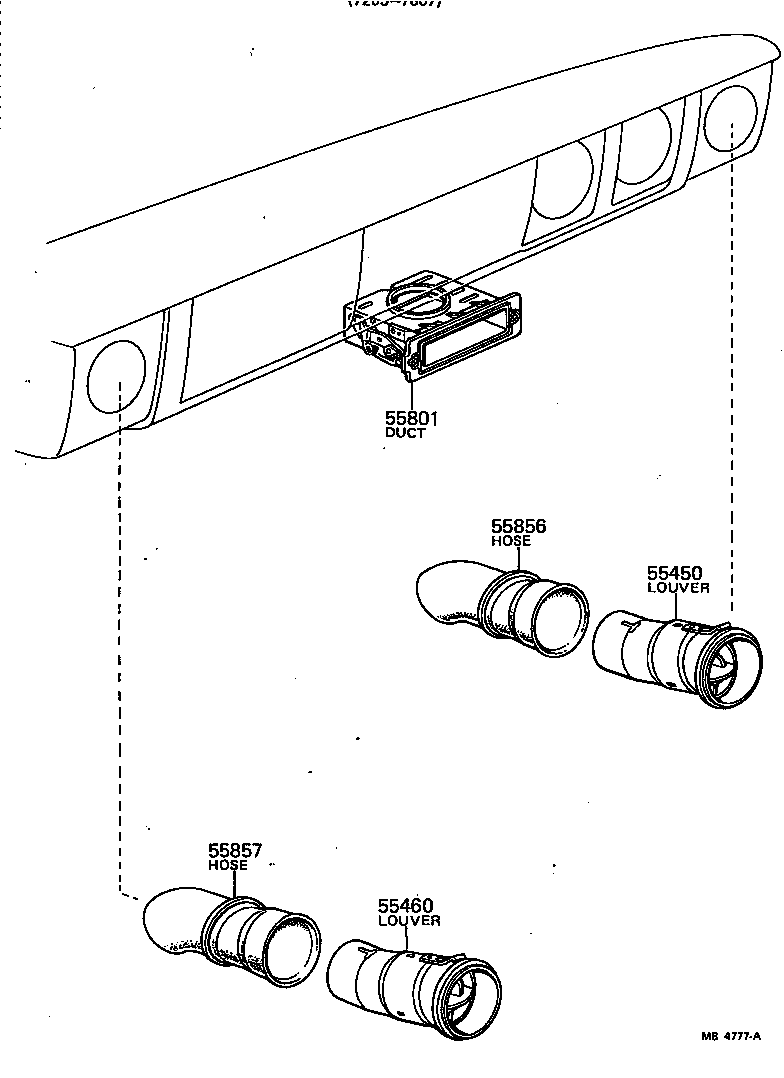

Click highlighted areas on diagram

diagram 55450 55460 55801 55856 55857
Part # Description Qty Price
55450 - LOUVER ASSY, SIDE VENTILATOR, RH
55402-89101

RN2#

 1
55460 - LOUVER ASSY, SIDE VENTILATOR, LH
55402-89101

RN2#

 1
55801 - DUCT ASSY, COWL VENTILATOR
55810-89112

RN2#

 1
55856 - HOSE, COWL VENTILATOR DUCT, RH
55856-89101

RN2#

 1
55857 - HOSE, COWL VENTILATOR DUCT, LH
55856-89101

RN2#

 1
