RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)RHD

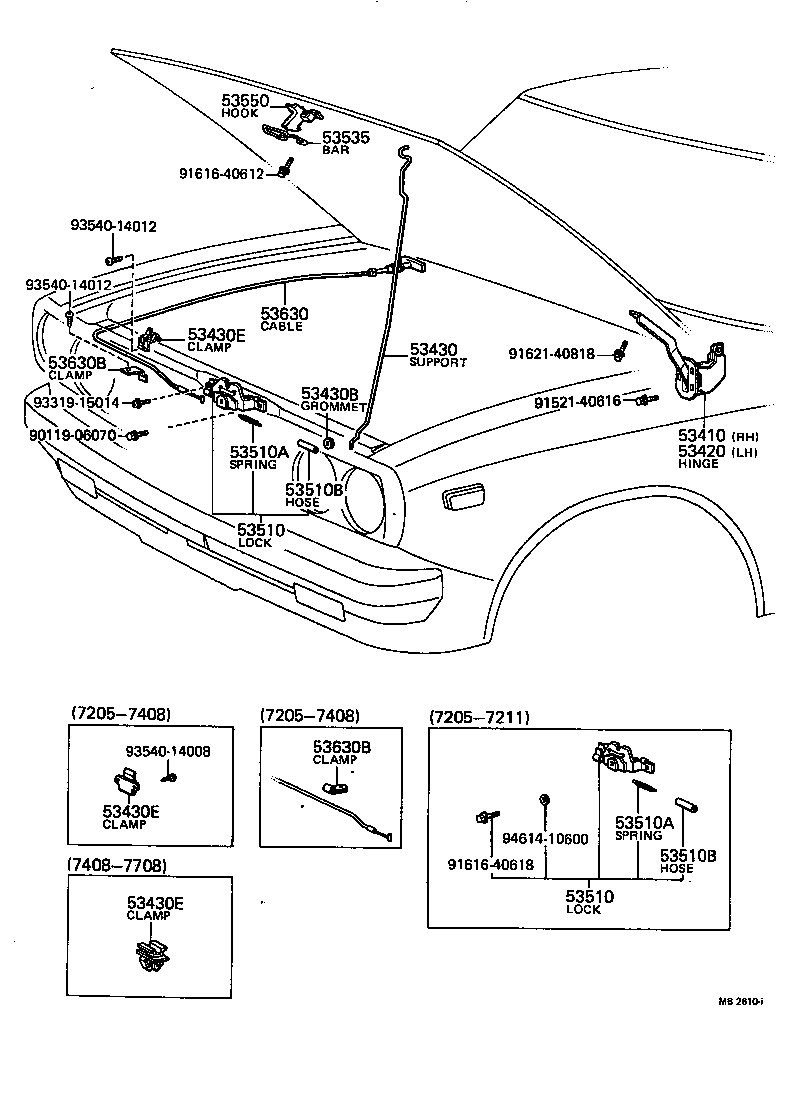

Click highlighted areas on diagram

diagram 53410 53420 53430 53430B 53430E 53430E 53430E 53510 53510 53510A 53510A 53510B 53510B 53535 53550 53630 53630B 53630B 9011906070 9152140616 9161640612 9161640618 9162140818 9331915014 9354014008 9354014012 9354014012 9461410600
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-89103

RN2#

 1
53420 - HINGE ASSY, HOOD, LH
53420-89102

RN2#

 1
53430 - SUPPORT ASSY, HOOD
53431-89103

RN2#

 1
53430B - GROMMET(FOR HOOD SUPPORT)
90480-15296

RN2#

 1
53430E - CLAMP, HOOD SUPPORT
53455-89101

RN2#

 1
53439-20011

RN2#

 1
53430E - CLAMP, HOOD SUPPORT
53455-89101

RN2#

 1
53439-20011

RN2#

 1
53430E - CLAMP, HOOD SUPPORT
53455-89101

RN2#

 1
53439-20011

RN2#

 1
53510 - LOCK ASSY, HOOD
53510-29015

RN2#..4H

 1
53510 - LOCK ASSY, HOOD
53510-29015

RN2#..4H

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-10196

RN2#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-10196

RN2#

 1
53510B - HOSE(FOR HOOD LOCK)
90446-12209

RN2#

 1
53510B - HOSE(FOR HOOD LOCK)
90446-12209

RN2#

 1
53535 - BAR, HOOD LIFT TORSION
53535-89101

RN2#

 1
53550 - HOOK ASSY, HOOD AUXILIARY CATCH
53550-89101

RN2#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-89104

RN2#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90463-10335

RN2#

 2
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90463-10335

RN2#

 2
Common parts
90119-06070
91521-40616
91616-40612
91616-40618
91621-40818
93319-15014
93540-14008
93540-14012
94614-10600
