RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

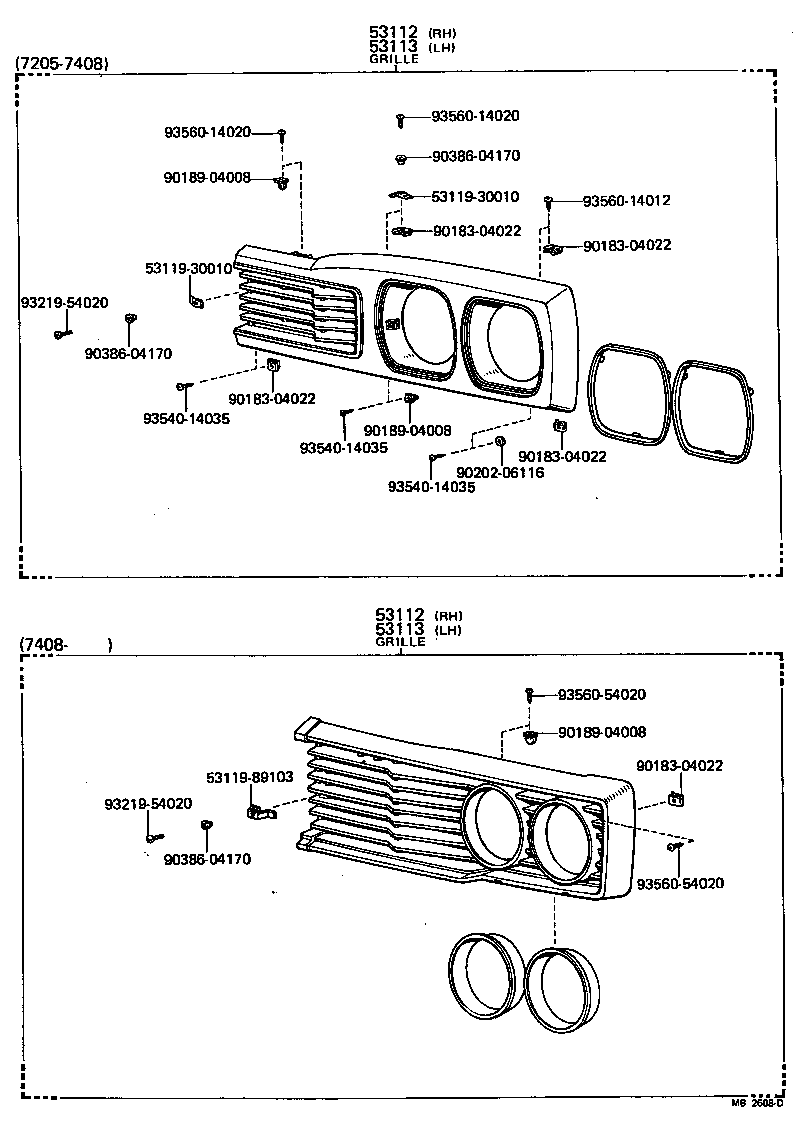

Click highlighted areas on diagram

diagram 53112 53112 53113 53113 5311930010 5311930010 5311989103 9018304022 9018304022 9018304022 9018304022 9018304022 9018904008 9018904008 9018904008 9020206116 9038604170 9038604170 9038604170 9321954020 9321954020 9354014035 9354014035 9354014035 9356014012 9356014020 9356014020 9356054020 9356054020
Part # Description Qty Price
53112 - GRILLE, RADIATOR, RH OR UPPER
53102-89801

RN2#

W/HEADLAMPRIM

 1
53112 - GRILLE, RADIATOR, RH OR UPPER
53102-89801

RN2#

W/HEADLAMPRIM

 1
53113 - GRILLE, RADIATOR, LH OR LOWER
53103-89801

RN2#

W/HEADLAMPRIM

 1
53113 - GRILLE, RADIATOR, LH OR LOWER
53103-89801

RN2#

W/HEADLAMPRIM

 1
Common parts
53119-30010
53119-89103
90183-04022
90189-04008
90202-06116
90386-04170
93219-54020
93540-14035
93560-14012
93560-14020
93560-54020
