RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7704-7807)

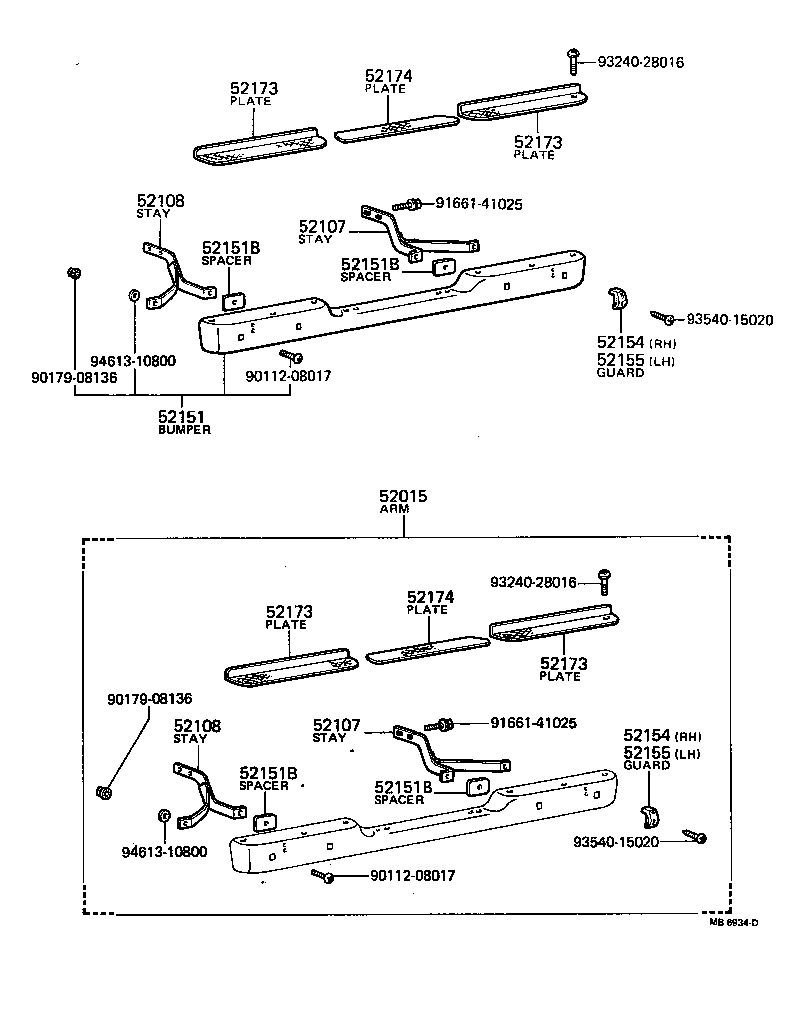

Click highlighted areas on diagram

diagram 52015 52107 52107 52108 52108 52151 52151B 52151B 52151B 52151B 52154 52154 52155 52155 52173 52173 52173 52173 52174 52174 9011208017 9011208017 9017908136 9017908136 9166141025 9166141025 9324028016 9324028016 9354015020 9354015020 9461310800 9461310800
Part # Description Qty Price
Common parts
90112-08017
90179-08136
91661-41025
93240-28016
93540-15020
94613-10800
