RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

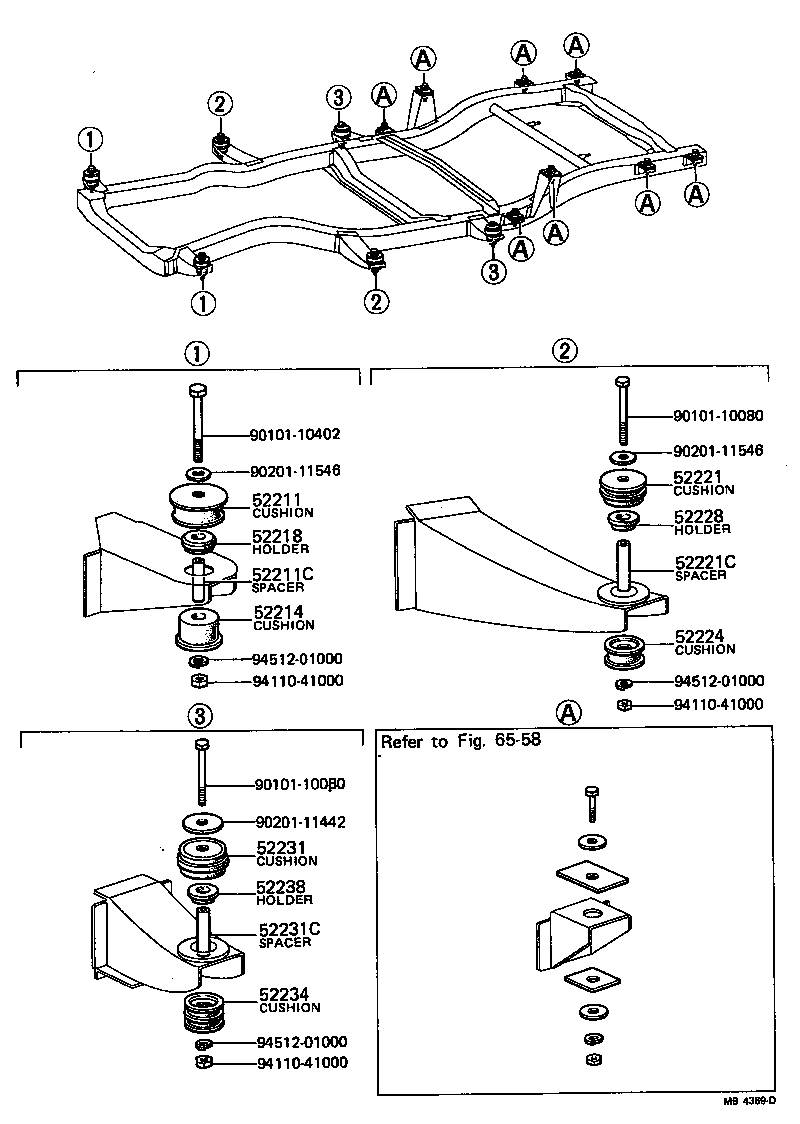

Click highlighted areas on diagram

diagram 52211 52211C 52214 52218 52221 52221C 52224 52228 52231 52231C 52234 52238 6558 9010110080 9010110080 9010110402 9020111442 9020111546 9020111546 9411041000 9411041000 9411041000 9451201000 9451201000 9451201000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-35010

RN2#

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
90440-16134

RN2#

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-35010

RN2#

 2
52218 - HOLDER, BODY MOUNT BOLT SPACER, NO.1
52228-35010

RN2#

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52021-35010

RN2#

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90440-17135

RN2#

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52022-35010

RN2#

 2
52228 - HOLDER, BODY MOUNT BOLT SPACER, NO.2
52228-22010

RN2#

 2
52231 - CUSHION, BODY MOUNT, NO.3 UPPER
52203-35020

RN2#

 2
52231C - SPACER(FOR BODY MOUNT NO.3 CUSHION)
90440-17135

RN2#

 2
52234 - CUSHION, BODY MOUNT, NO.3 LOWER
52204-35020

RN2#

 2
52238 - HOLDER, BODY MOUNT BOLT SPACER, NO.3
52229-35010

RN2#

 2
Common parts
90101-10080
90101-10402
90201-11442
90201-11546
94110-41000
94512-01000
Linked diagrams
6558
