RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

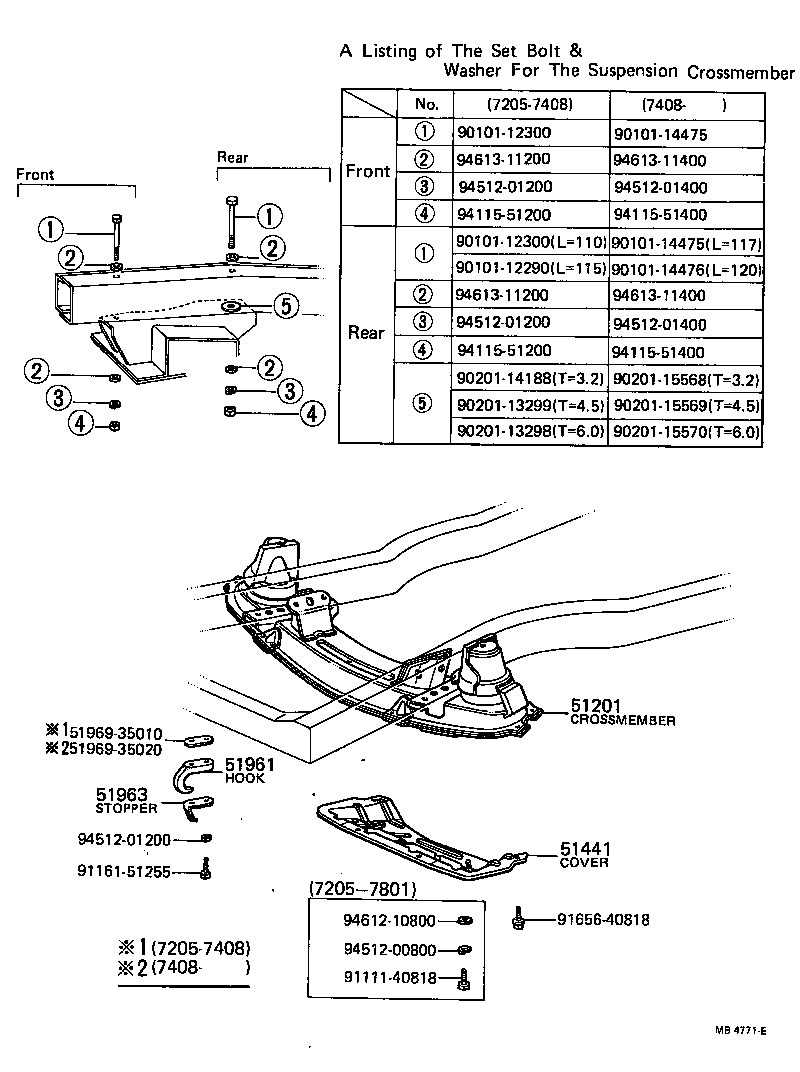

Click highlighted areas on diagram

diagram 51201 51441 51961 51963 5196935010 5196935020 9010112290 9010112300 9010112300 9010114475 9010114475 9010114476 9020113298 9020113299 9020114188 9020115568 9020115569 9020115570 9111140818 9116151255 9165640818 9411551200 9411551200 9411551400 9411551400 9451200800 9451201200 9451201200 9451201200 9451201400 9451201400 9461210800 9461311200 9461311200 9461311400 9461311400
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-35030

RN2#

 1
Common parts
51969-35010
51969-35020
90101-12290
90101-12300
90101-14475
90101-14476
90201-13298
90201-13299
90201-14188
90201-15568
90201-15569
90201-15570
91111-40818
91161-51255
91656-40818
94115-51200
94115-51400
94512-00800
94512-01200
94512-01400
94612-10800
94613-11200
94613-11400
