RN22-JD (1975)
Toyota Hilux
Production
May 1975
-
Jul 1978
Engine
18R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)

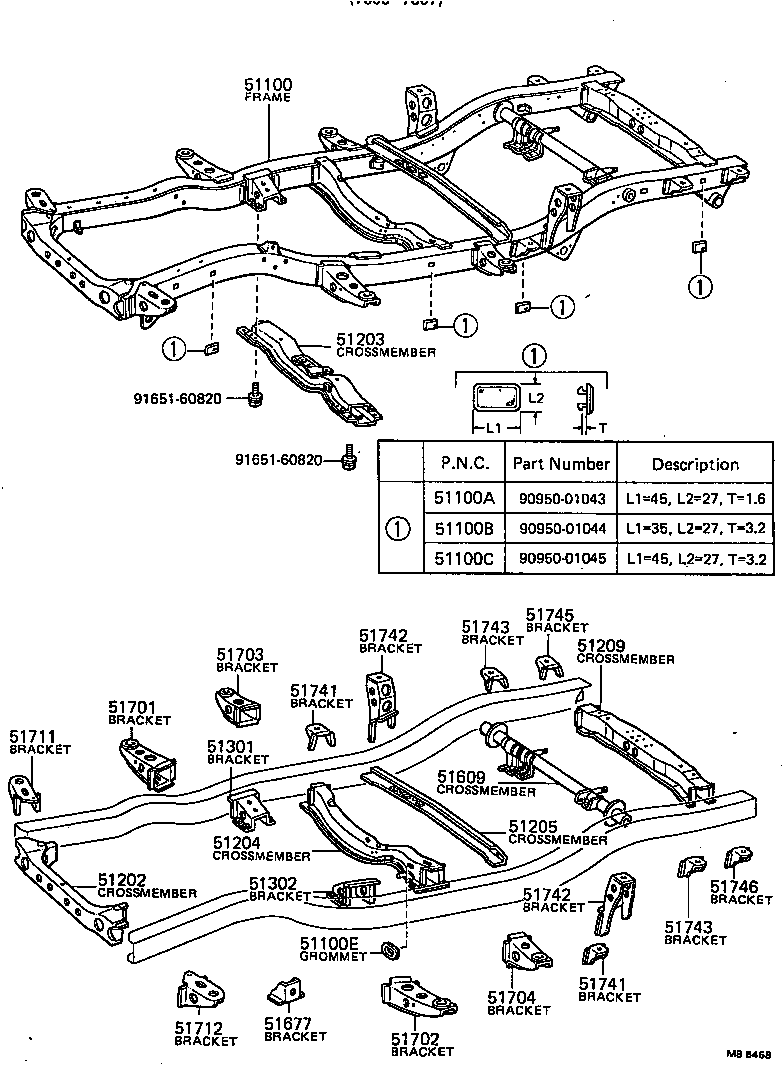

(7605-7807)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100 - FRAME ASSY | ||||
| 51001-35542 |
RN22..RHD |
1 | ||
| 51001-35541 |
RN22 |
1 | ||
| 51001-35542 |
RN22..RHD..MTM |
1 | ||
| 51100A - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01043 |
RN2# 45X27,FOR RAIL T=1.6 |
2 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01044 |
RN2# 35X27,FOR RAIL T=3.2 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01045 |
RN2# 45X27,FOR RAIL T=3.2 |
2 | ||
| 51100E - GROMMET(FOR FRAME) | ||||
| 90480-01019 |
RN2# |
2 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-35050 |
RN2# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51203-35101 |
RN2#..RHD..MTM |
1 | ||
| 51203-35060 |
RN2#..RHD..MTM |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51204-35101 |
RN22..RHD |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51291-35061 |
RN2# |
1 | ||
| 51301 - BRACKET, FRAME NO.2 CROSSMEMBER, RH | ||||
| 51331-35041 |
RN22..RHD |
1 | ||
| 51331-35040 |
RN2# |
1 | ||
| 51331-35041 |
RN22..RHD |
1 | ||
| 51302 - BRACKET, FRAME NO.2 CROSSMEMBER, LH | ||||
| 51332-35041 |
RN22..RHD |
1 | ||
| 51332-35040 |
RN2# |
1 | ||
| 51332-35041 |
RN22..RHD |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51205-35071 |
RN22..RHD |
1 | ||
| 51205-35041 |
RN22..RHD |
1 | ||
| 51205-35072 |
RN22..RHD |
1 | ||
| 51677 - BRACKET, STEERING GEAR BOX | ||||
| 51677-35021 |
RN2# |
1 | ||
| 51677-35010 |
RN2# |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-35040 |
RN2# |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-35040 |
RN2# |
1 | ||
| 51702-35050 |
RN2# |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51704-35030 |
RN2# |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-35030 |
RN2# |
1 | ||
| 51711 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH | ||||
| 51711-35040 |
RN2# |
1 | ||
| 51712 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, LH | ||||
| 51711-35040 |
RN2# |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
RN2# |
2 | ||
| 51741-35040 |
RN2# |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
RN2# |
2 | ||
| 51741-35040 |
RN2# |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51742-35021 |
RN20,22,25 FOR RH. |
1 | ||
| 51743-35041 |
RN20,22,25 FOR LH. |
1 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51742-35021 |
RN20,22,25 FOR RH. |
1 | ||
| 51743-35041 |
RN20,22,25 FOR LH. |
1 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-35040 |
RN2# |
2 | ||
| 51741-35050 |
RN2# |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-35040 |
RN2# |
2 | ||
| 51741-35050 |
RN2# |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51741-35040 |
RN2# |
1 | ||
| 51741-35050 |
RN2# |
1 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51741-35040 |
RN2# |
1 | ||
| 51741-35050 |
RN2# |
1 | ||
| Common parts | ||||
| 90950-01043 | ||||
| 90950-01044 | ||||
| 90950-01045 | ||||
| 91651-60820 | ||||

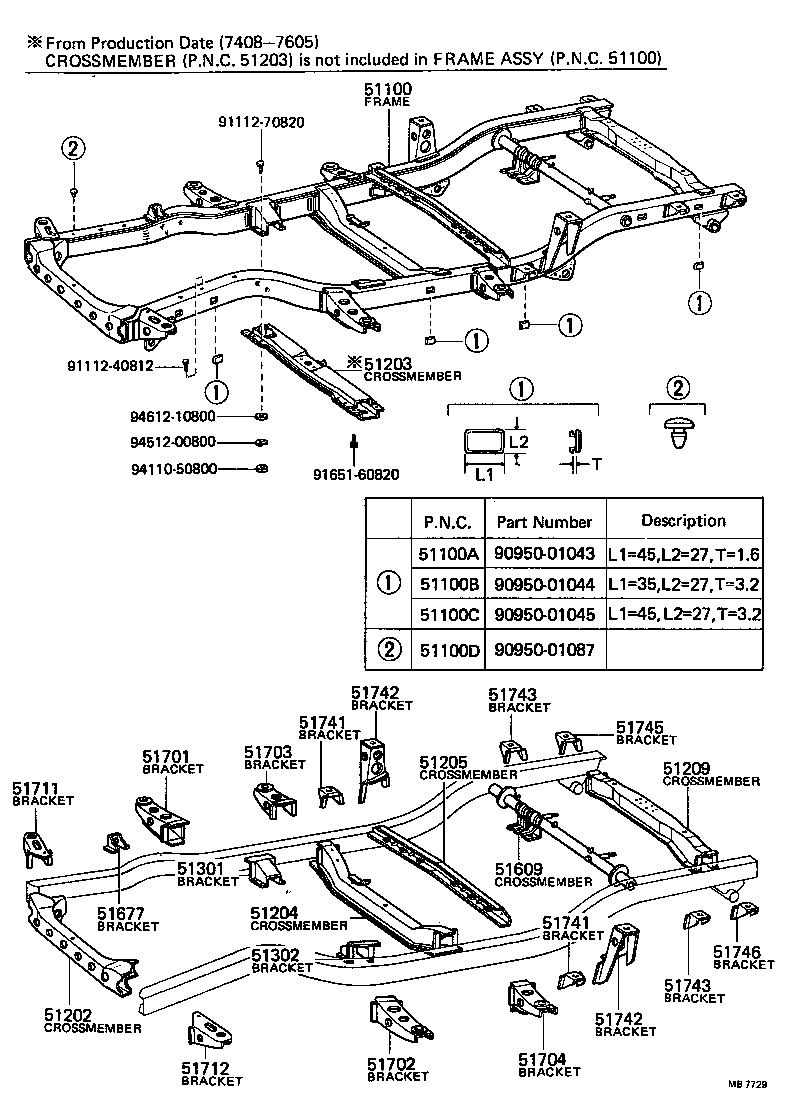

(7205-7605)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100 - FRAME ASSY | ||||
| 51001-35542 |
RN22..RHD |
1 | ||
| 51001-35541 |
RN22 |
1 | ||
| 51001-35542 |
RN22..RHD..MTM |
1 | ||
| 51100A - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01043 |
RN2# 45X27,FOR RAIL T=1.6 |
2 | ||
| 51100B - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01044 |
RN2# 35X27,FOR RAIL T=3.2 |
6 | ||
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01045 |
RN2# 45X27,FOR RAIL T=3.2 |
2 | ||
| 51100D - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01087 |
RN2# |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-35050 |
RN2# |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51203-35101 |
RN2#..RHD..MTM |
1 | ||
| 51203-35060 |
RN2#..RHD..MTM |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51204-35101 |
RN22..RHD |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51291-35061 |
RN2# |
1 | ||
| 51301 - BRACKET, FRAME NO.2 CROSSMEMBER, RH | ||||
| 51331-35041 |
RN22..RHD |
1 | ||
| 51331-35040 |
RN2# |
1 | ||
| 51331-35041 |
RN22..RHD |
1 | ||
| 51302 - BRACKET, FRAME NO.2 CROSSMEMBER, LH | ||||
| 51332-35041 |
RN22..RHD |
1 | ||
| 51332-35040 |
RN2# |
1 | ||
| 51332-35041 |
RN22..RHD |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51205-35071 |
RN22..RHD |
1 | ||
| 51205-35041 |
RN22..RHD |
1 | ||
| 51205-35072 |
RN22..RHD |
1 | ||
| 51677 - BRACKET, STEERING GEAR BOX | ||||
| 51677-35021 |
RN2# |
1 | ||
| 51677-35010 |
RN2# |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-35040 |
RN2# |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51702-35040 |
RN2# |
1 | ||
| 51702-35050 |
RN2# |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51704-35030 |
RN2# |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-35030 |
RN2# |
1 | ||
| 51711 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, RH | ||||
| 51711-35040 |
RN2# |
1 | ||
| 51712 - BRACKET, FRONT BODY SUPPORT OR MOUNTING, LH | ||||
| 51711-35040 |
RN2# |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
RN2# |
2 | ||
| 51741-35040 |
RN2# |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-35050 |
RN2# |
2 | ||
| 51741-35040 |
RN2# |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51742-35021 |
RN20,22,25 FOR RH. |
1 | ||
| 51743-35041 |
RN20,22,25 FOR LH. |
1 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51742-35021 |
RN20,22,25 FOR RH. |
1 | ||
| 51743-35041 |
RN20,22,25 FOR LH. |
1 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-35040 |
RN2# |
2 | ||
| 51741-35050 |
RN2# |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-35040 |
RN2# |
2 | ||
| 51741-35050 |
RN2# |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51741-35040 |
RN2# |
1 | ||
| 51741-35050 |
RN2# |
1 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51741-35040 |
RN2# |
1 | ||
| 51741-35050 |
RN2# |
1 | ||
| Common parts | ||||
| 90950-01043 | ||||
| 90950-01044 | ||||
| 90950-01045 | ||||
| 90950-01087 | ||||
| 91112-40812 | ||||
| 91112-70820 | ||||
| 91651-60820 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
