RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

Click highlighted areas on diagram

diagram 48046 48046 48046A 48046A 48047 48047 48210A 48210A 48210B 48210B 48210G 48210G 48210K 48210L 48306 48382 48401 48402 48404 48405 48530 48530A 48530A 48530A 48530A 48530B 48530C 48530D 48530E 48540 9161140816 9161140822 9161141020 9161141020 9411041400 9411051300 9411051300 9411541400 9414641200 9414641200 9451201300 9451201300 9451201400 9451201400 9538103025 9538103025
Part # Description Qty Price
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48047-26021

RN2#

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48047-26021

RN2#

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-13103

RN20,22,25

 4
48046A - BOLT, U(FOR REAR SPRING)
90118-13103

RN20,22,25

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-26021

RN2#

 1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48046-26021

RN2#

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

RN2#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18046

RN2#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

RN20,22,25

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18046

RN20,22,25

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

RN2#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18046

RN2#

 4
48210K - SHACKLE KIT, REAR SPRING
04483-26010

RN2#

 2
48210L - PIN KIT, REAR SPRING
04484-27010

RN2#

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-35011

RN2#

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-35030

RN2#

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48415-35020

RN2#

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-35031

RN2#

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48416-35031

RN2#

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-39077

RN20,25;RN22..RHD

SOFT TYPE

 1
48531-39256

RN20,22,25

HARD TYPE

 1
48531-39075

RN2#

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

RN2#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

RN2#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

RN2#

 8
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16007

RN2#

 8
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03004

RN2#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03003

RN2#

 2
90948-03012

RN20,22,25

 2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003

RN2#

 2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004

RN2#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-39077

RN20,25;RN22..RHD

SOFT TYPE

 1
48531-39256

RN20,22,25

HARD TYPE

 1
48531-39075

RN2#

 1
Common parts
91611-40816
91611-40822
91611-41020
94110-41400
94110-51300
94115-41400
94146-41200
94512-01300
94512-01400
95381-03025

(7205-7807)RN20,22,25

Click highlighted areas on diagram

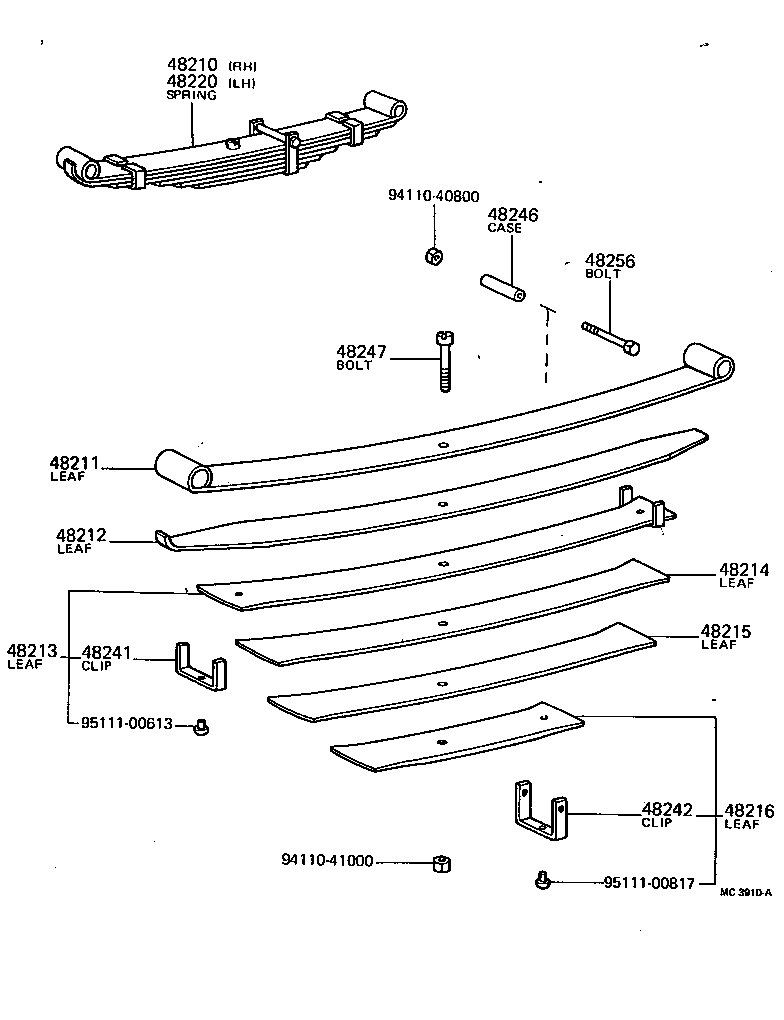

diagram 48210 48211 48212 48213 48214 48215 48216 48220 48241 48242 48246 48247 48256 9411040800 9411041000 9511100613 9511100817
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-35040

RN22..RHD

LIGHT DUTY

 1
48211 - LEAF, REAR SPRING, NO.1
48211-35040

RN22..RHD

LIGHT DUTY

 2
48212 - LEAF, REAR SPRING, NO.2
48212-35040

RN22..RHD

LIGHT DUTY

 2
48213 - LEAF, REAR SPRING, NO.3
48202-35040

RN22..RHD

LIGHT DUTY

 2
48214 - LEAF, REAR SPRING, NO.4
48214-35040

RN22..RHD

LIGHT DUTY

 2
48215 - LEAF, REAR SPRING, NO.5
48215-35041

RN22..RHD

LIGHT DUTY

 2
48216 - LEAF, REAR SPRING, NO.6
48203-35041

RN22..RHD

LIGHT DUTY

 2
48220 - SPRING ASSY, REAR LH
48210-35040

RN22..RHD

LIGHT DUTY

 1
48241 - CLIP, REAR SPRING, NO.1
48241-35041

RN20,22,25

 4
48242 - CLIP, REAR SPRING, NO.2
48242-35041

RN22..RHD

LIGHT DUTY

 2
48246 - CASE, REAR SPRING CLIP BOLT
48246-35041

RN20,22,25

 2
48247 - BOLT, REAR SPRING, CENTER
48247-35040

RN20,22,25

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-35040

RN2#

 2
Common parts
94110-40800
94110-41000
95111-00613
95111-00817
