RN22-JD (1975)
Toyota Hilux
Production
May 1975
-
Jul 1978
Engine
18R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)

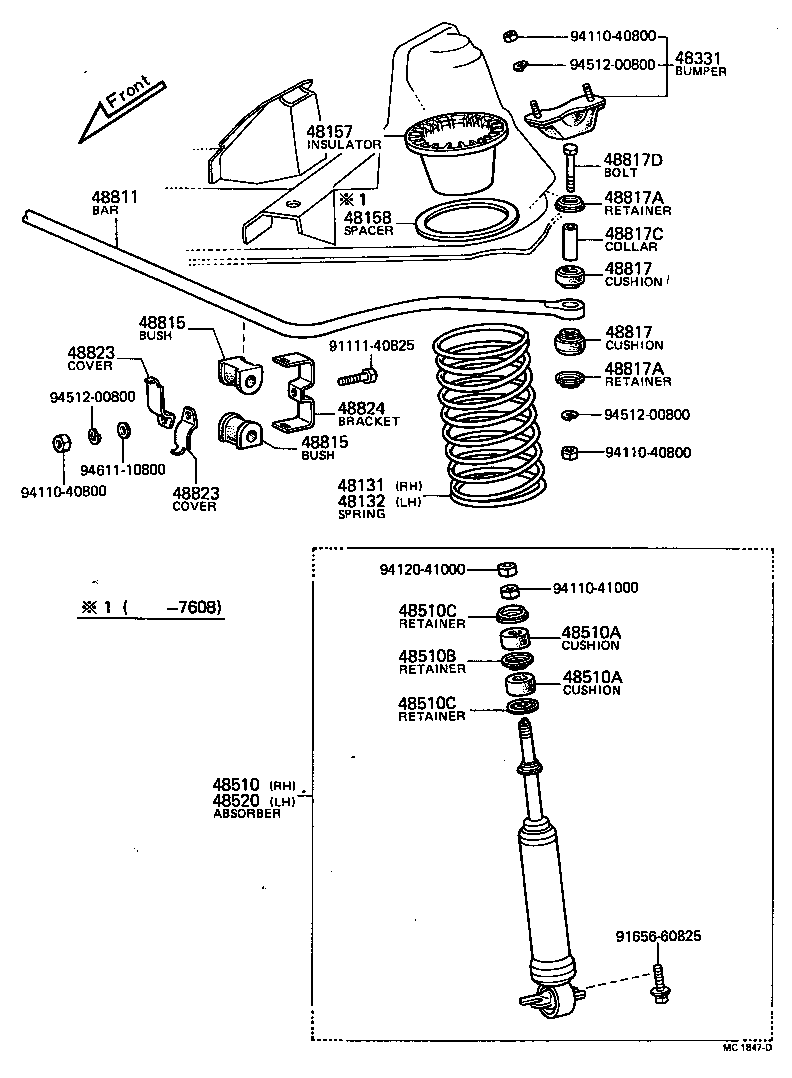

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-35050 |
RN22,25..4H WD=14.8,HEAVY DUTY |
1 | ||
| 48131-35041 |
RN20,25;RN22..RHD WD=15,FOR COOLER |
1 | ||
| 48131-35040 |
RN2# WD=15,FOR COOLER |
1 | ||
| 48131-35090 |
RN22..RHD WD=14.8 SOUTH AFRICA SPEC |
1 | ||
| 48131-35031 |
RN2# WD=14.8 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-35031 |
RN2# WD=14.8 |
1 | ||
| 48131-35050 |
RN22,25..4H WD=14.8,HEAVY DUTY |
1 | ||
| 48131-35041 |
RN20,25;RN22..RHD WD=15,FOR COOLER |
1 | ||
| 48131-35040 |
RN2# WD=15,FOR COOLER |
1 | ||
| 48131-35090 |
RN22..RHD WD=14.8 SOUTH AFRICA SPEC |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-20010 |
RN2# |
2 | ||
| 48158 - SPACER, FRONT COIL SPRING | ||||
| 48158-20010 |
RN2# |
1 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-39035 |
RN2# |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-39206 |
RN20,22,25 |
1 | ||
| 48511-39135 |
RN2# |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01002 |
RN2# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01002 |
RN2# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02005 |
RN2# T=1.0 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02004 |
RN2# T=1.6 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02004 |
RN2# T=1.6 |
4 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-39135 |
RN2# |
1 | ||
| 48511-39206 |
RN20,22,25 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-35040 |
RN2# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20020 |
RN20,22,25 ID=17 |
4 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-20020 |
RN20,22,25 ID=17 |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20010 |
RN2# |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-20010 |
RN2# |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02010 |
RN2# ID=8.3 |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02010 |
RN2# ID=8.3 |
4 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90387-08027 |
RN2# |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 91111-70856 |
RN2# |
2 | ||
| 91111-70855 |
RN2# |
2 | ||
| 48823 - COVER, STABILIZER LINK(FOR FRONT) | ||||
| 48823-30020 |
RN2# |
4 | ||
| 48823 - COVER, STABILIZER LINK(FOR FRONT) | ||||
| 48823-30020 |
RN2# |
4 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48821-30010 |
RN2# |
2 | ||
| Common parts | ||||
| 91111-40825 | ||||
| 91656-60825 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94611-10800 | ||||
