RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

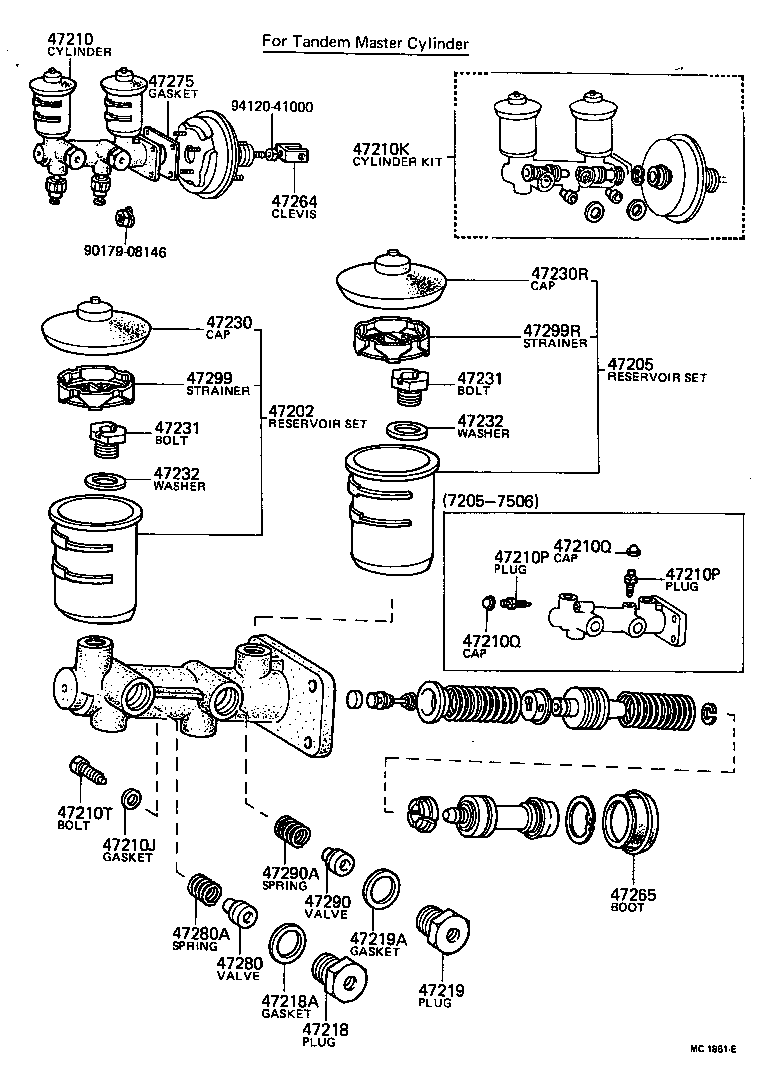

Click highlighted areas on diagram

diagram 47202 47205 47210 47210J 47210K 47210P 47210P 47210Q 47210Q 47210T 47218 47218A 47219 47219A 47230 47230R 47231 47231 47232 47232 47264 47265 47275 47280 47280A 47290 47290A 47299 47299R 9017908146 9412041000
Part # Description Qty Price
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-22071

RN2#

FOR TANDEM MASTER CYLINDER

 1
47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
47202-22071

RN2#

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-35020

RN2#

FOR TANDEM MASTER CYLINDER

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

RN2#

 1
47210K - CYLINDER KIT, BRAKE MASTER
04493-35020

RN2#

FOR TANDEM MASTER CYLINDER

 1
47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER)
47547-30020

RN2#

 2
47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER)
47547-30020

RN2#

 2
47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER)
47548-20010

RN2#

 2
47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER)
47548-20010

RN2#

 2
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06055

RN2#

 1
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-30010

RN2#

FOR TANDEM MASTER CYLINDER

 1
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-20018

RN2#

 1
47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)
47218-30010

RN2#

 1
47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
90430-20018

RN2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12030

RN2#

FOR TANDEM MASTER CYLINDER

 1
47230-20040

RN2#

FOR TANDEM MASTER CYLINDER

 1
47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
47230-12030

RN2#

 1
47230-20040

RN2#

 1
47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47231-35010

RN2#

 2
47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET
47231-35010

RN2#

 2
47232 - WASHER, BRAKE RESERVOIR SET BOLT
47232-35010

RN2#

 2
47232 - WASHER, BRAKE RESERVOIR SET BOLT
47232-35010

RN2#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
31453-30020

RN2#

 1
47265 - BOOT, MASTER CYLINDER
47265-35020

RN2#

FOR TANDEM MASTER CYLINDER

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-35010

RN2#

FOR TANDEM MASTER CYLINDER

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-12010

RN2#

FOR TANDEM MASTER CYLINDER

 1
47280A - SPRING, COMPRESSION
90501-10074

RN2#

 1
47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
47280-12010

RN2#

 1
47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)
90501-10074

RN2#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-22010

RN2#

FOR TANDEM MASTER CYLINDER

 1
47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR
47299-22010

RN2#

 1
Common parts
90179-08146
94120-41000
