RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)RHD

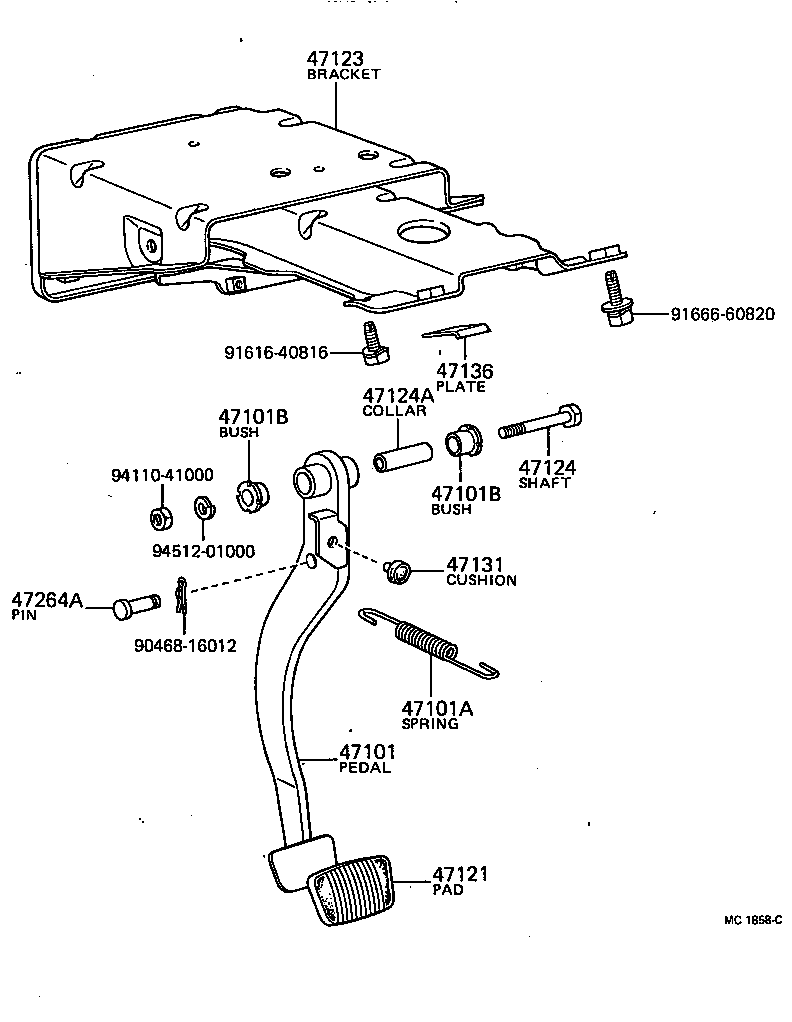

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47136 47264A 9046816012 9161640816 9166660820 9411041000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-35060

RN2#..RHD..MTM

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-16386

RN2#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

RN2#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

RN2#

 2
47121 - PAD, BRAKE PEDAL
31321-20020

RN2#..MTM

 1
47123 - BRACKET, BRAKE PEDAL
55106-89105

RN2#..RHD

 1
47124 - SHAFT, BRAKE PEDAL
91121-51060

RN2#..RHD

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

RN2#..RHD

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

RN2#

 1
47136 - PLATE, BRAKE PEDAL BRACKET
55159-89101

RN22

 1
47264A - PIN(FOR PUSH ROD)
90249-10048

RN2#

 1
Common parts
90468-16012
91616-40816
91666-60820
94110-41000
94512-01000
