RN22-JD (1975)
Toyota Hilux
Production
May 1975
-
Jul 1978
Engine
18R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)

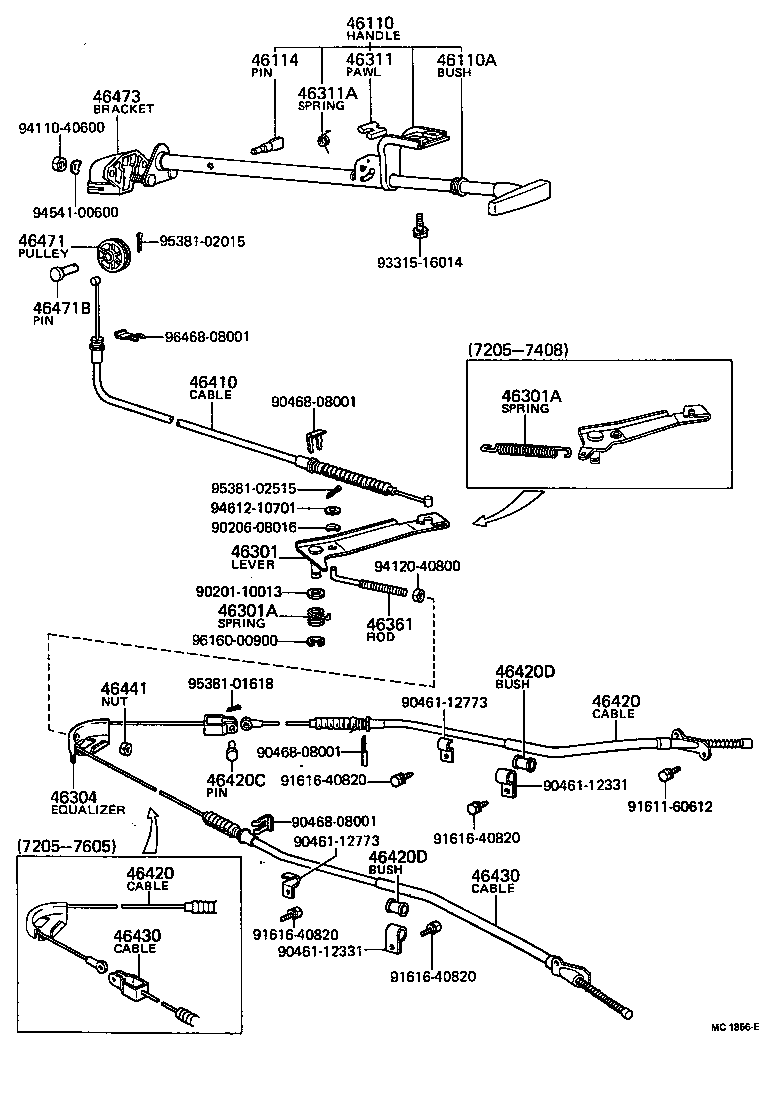

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46110-35070 |
RN2#..RHD |
1 | ||
| 46110-35071 |
RN2#..RHD |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
RN2# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30020 |
RN2# |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-35030 |
RN2#..RHD |
1 | ||
| 46301-35051 |
RN2#..RHD |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-18210 |
RN2# |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-18210 |
RN2# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-35010 |
RN2# |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-30030 |
RN2# |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-07040 |
RN2# |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-35010 |
RN2# |
1 | ||
| 46361-35031 |
RN2# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-35090 |
RN2#..4H |
1 | ||
| 46410-35092 |
RN2#..RHD |
1 | ||
| 46410-35092 |
RN20,22,25..RHD..MTM |
1 | ||
| 46410-35140 |
RN22,27..MTM |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-35041 |
RN20,22 |
1 | ||
| 46420-35040 |
RN20,22 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-35041 |
RN20,22 |
1 | ||
| 46420-35040 |
RN20,22 |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-06032 |
RN2# |
1 | ||
| 46420D - GROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90385-13051 |
RN2# |
2 | ||
| 46420D - GROMMET OR BUSH(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90385-13051 |
RN2# |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-35030 |
RN20,22 |
1 | ||
| 46430-35031 |
RN22..RHD..MTM |
1 | ||
| 46430-35031 |
RN22..RHD |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-35030 |
RN20,22 |
1 | ||
| 46430-35031 |
RN22..RHD..MTM |
1 | ||
| 46430-35031 |
RN22..RHD |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90179-08020 |
RN2# |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
RN2# |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08070 |
RN2# |
1 | ||
| 46473 - BRACKET, PULLEY | ||||
| 46473-35010 |
RN2# |
1 | ||
| Common parts | ||||
| 90201-10013 | ||||
| 90206-08016 | ||||
| 90461-12331 | ||||
| 90461-12773 | ||||
| 90468-08001 | ||||
| 91611-60612 | ||||
| 91616-40820 | ||||
| 93315-16014 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94541-00600 | ||||
| 94612-10701 | ||||
| 95381-01618 | ||||
| 95381-02015 | ||||
| 95381-02515 | ||||
| 96160-00900 | ||||
| 96468-08001 | ||||
