RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

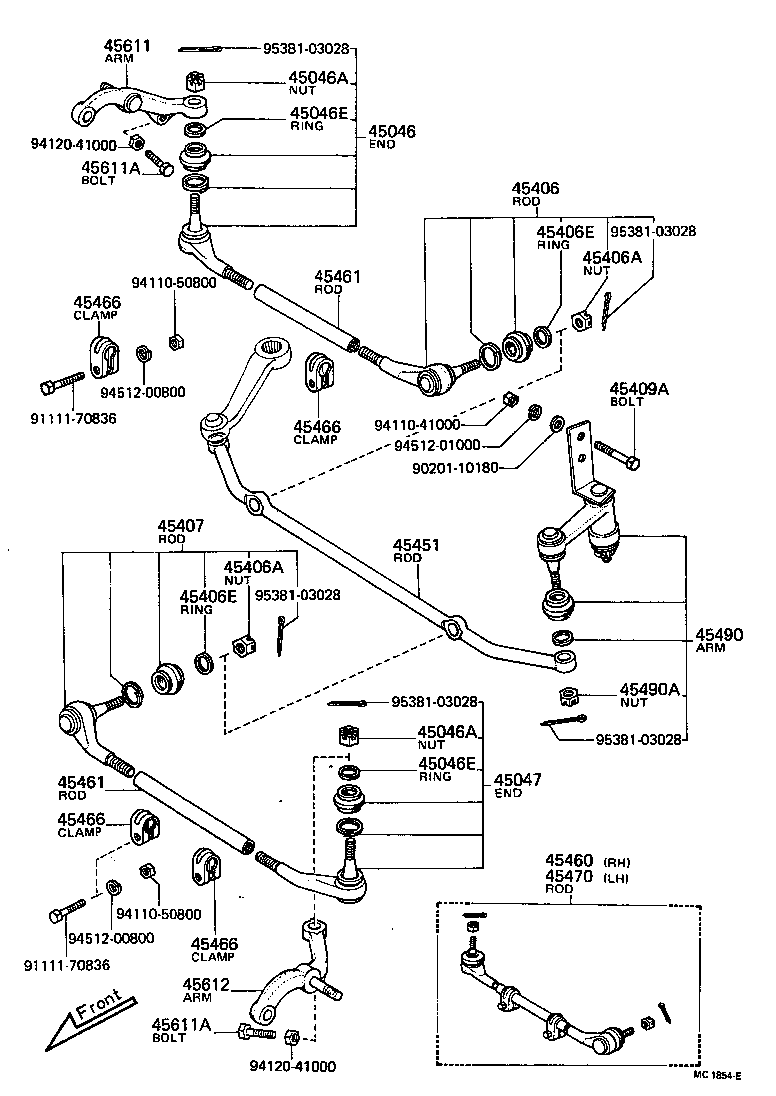

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45046E 45046E 45047 45406 45406A 45406A 45406E 45406E 45407 45409A 45451 45460 45461 45461 45466 45466 45466 45466 45470 45490 45490A 45611 45611A 45611A 45612 9020110180 9111170836 9111170836 9411041000 9411050800 9411050800 9412041000 9412041000 9451200800 9451200800 9451201000 9538103028 9538103028 9538103028 9538103028 9538103028
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-39085

RN2#

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

RN2#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

RN2#

 2
45046E - RING, O(FOR TIE ROD END DUST SEAL)
90562-16107

RN2#

 2
45046E - RING, O(FOR TIE ROD END DUST SEAL)
90562-16107

RN2#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-39055

RN2#

 1
45406 - ROD SUB-ASSY, TIE, RH
45406-39065

RN2#

 1
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

RN2#

 2
45406A - NUT, CASTLE(FOR TIE ROD)
90171-14042

RN2#

 2
45406E - RING, O(FOR TIE ROD DUST SEAL)
90562-16107

RN2#

 2
45406E - RING, O(FOR TIE ROD DUST SEAL)
90562-16107

RN2#

 2
45407 - ROD SUB-ASSY, TIE, LH
45406-39065

RN2#

 1
45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)
91112-51090

RN2#

 2
91112-51090

RN2#

 2
45451 - ROD, STEERING RELAY
45451-35050

RN2#

 1
45460 - ROD ASSY, TIE, RH
45460-39065

RN2#

 1
45461 - ROD, STEERING TIE
45465-35010

RN2#

 2
45461 - ROD, STEERING TIE
45465-35010

RN2#

 2
45466 - CLAMP, TIE ROD END
45466-30020

RN2#

 4
45466 - CLAMP, TIE ROD END
45466-30020

RN2#

 4
45466 - CLAMP, TIE ROD END
45466-30020

RN2#

 4
45466 - CLAMP, TIE ROD END
45466-30020

RN2#

 4
45470 - ROD ASSY, TIE, LH
45470-39035

RN2#

 1
45490 - ARM ASSY, STEERING IDLER
45490-39095

RN2#..RHD

 1
45490A - NUT, CASTLE(FOR IDLER ARM)
90171-14042

RN2#

 1
45611 - ARM, STEERING KNUCKLE, RH
45601-35040

RN2#

 1
45611A - BOLT, KNUCKLE STOPPER
90106-10032

RN2#

 2
45611A - BOLT, KNUCKLE STOPPER
90106-10032

RN2#

 2
45612 - ARM, STEERING KNUCKLE, LH
45606-35020

RN2#

 1
Common parts
90201-10180
91111-70836
94110-41000
94110-50800
94120-41000
94512-00800
94512-01000
95381-03028
