RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

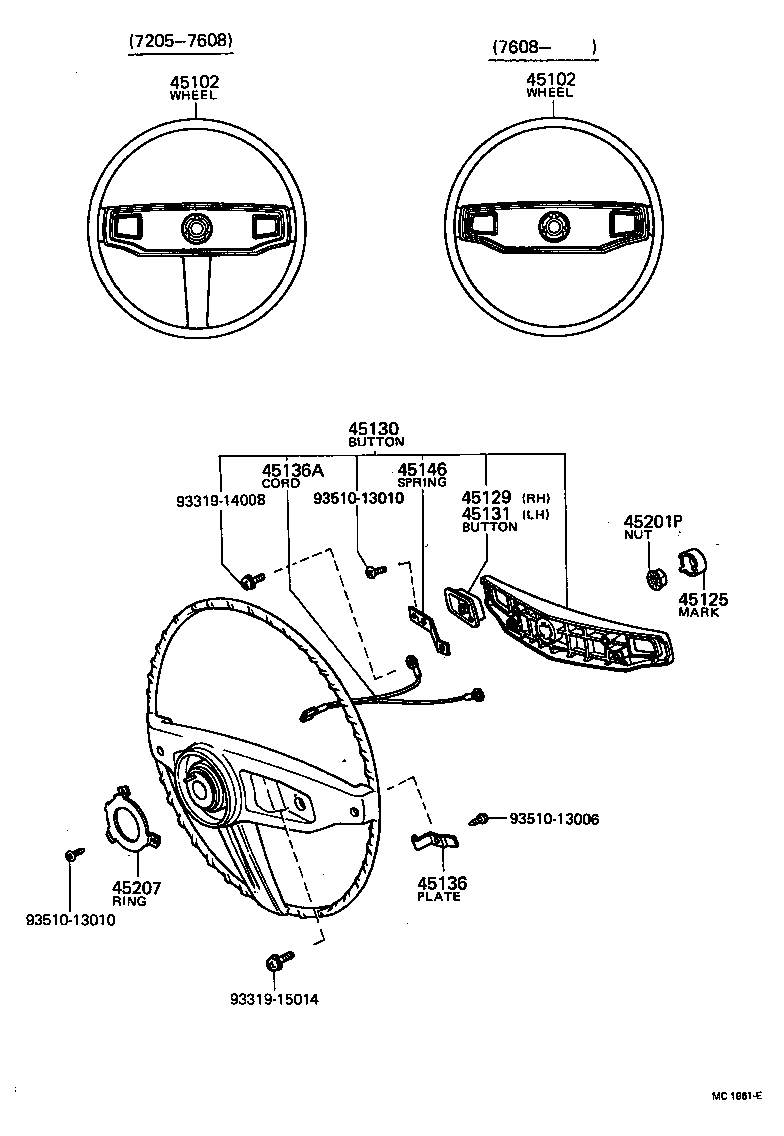

Click highlighted areas on diagram

diagram 45102 45102 45125 45129 45130 45131 45136 45136A 45146 45201P 45207 9331914008 9331915014 9351013006 9351013010 9351013010
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45100-35080

RN2#..RHD

 1
45100-35121

RN2#..RHD

 1
45102 - WHEEL SUB-ASSY, STEERING
45100-35080

RN2#..RHD

 1
45100-35121

RN2#..RHD

 1
45125 - MARK, STEERING WHEEL PAD
45125-35020

RN2#

 1
45129 - BUTTON, HORN, NO.2
45131-35050

RN2#

 1
45130 - BUTTON ASSY, HORN
45130-35060

RN2#

 1
45131 - BUTTON, HORN, NO.1
45131-35050

RN2#

 1
45136 - PLATE, HORN BUTTON CONTACT
45136-35020

RN2#

 2
45137-35020

RN2#

FOR LH.

 1
45136-35021

RN2#

FOR RH.

 1
45136A - CORD(FOR HORN CONTACT RING)
90945-02013

RN2#

 1
45146 - SPRING, HORN BUTTON CONTACT
45146-35020

RN2#

 2
45201P - NUT, STEERING WHEEL SET
90179-12086

RN2#

 1
45207 - RING, HORN CONTACT
45176-35010

RN2#

 1
Common parts
93319-14008
93319-15014
93510-13006
93510-13010

(0507-0808) ; (0808-0810)KUN2#..DCB,SCB,THSCB,XTR..5F ; (0808- )4FC ; (0808-
