RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978
Engine 18R
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

Click highlighted areas on diagram

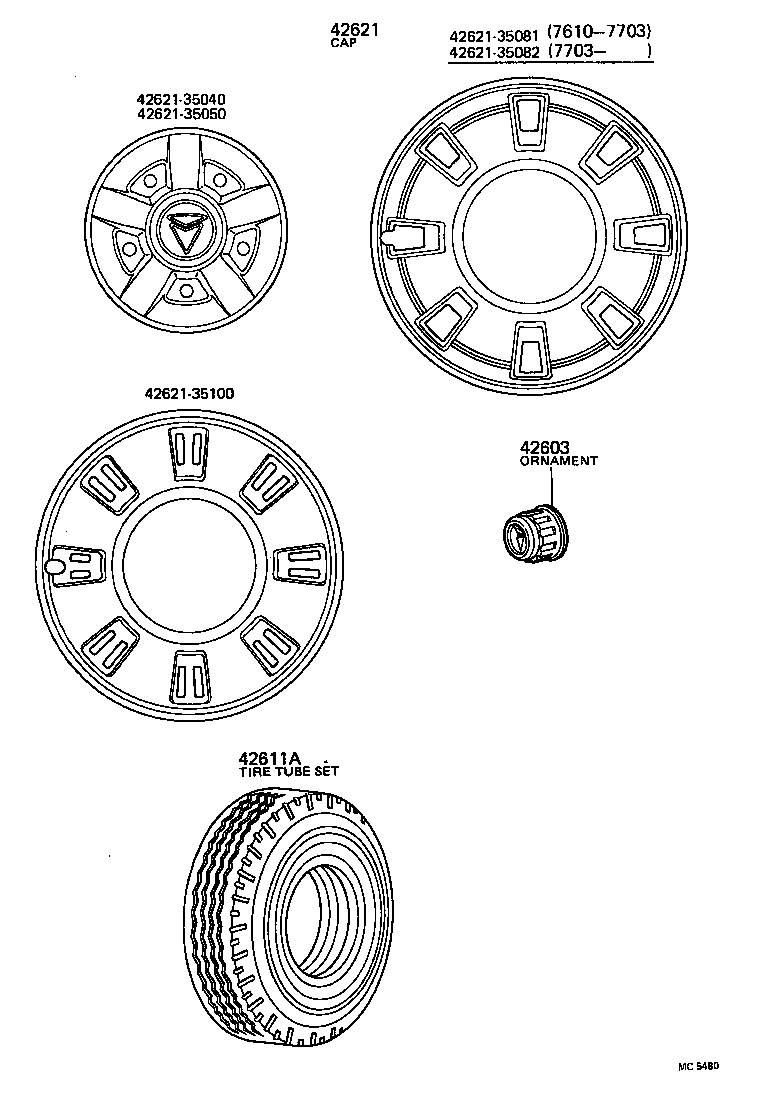

diagram 42603 42611A 42621 4262135040 4262135050 4262135081 4262135082 4262135100
Part # Description Qty Price
42611A - TIRE TUBE SET OR TUBELESS TIRE
98061-65144

RN20,22,25

6.50-14-8,BLACK, FOR REAR

 5
98063-60144

RN20,22,25

6.00-14-8,WSW.,FOR REAR

 5
98061-60143

RN20,22,25

6.00-14-6,BLACK,FOR FRONT

 5
98064-60144

RN20,22,25

6.00-14-8,SNOW,FOR REAR

 5
98061-60144

RN20,22,25

6.00-14-8,BLACK,FOR REAR

 5
98063-60143

RN20,22,25

6.00-14-6,WSW.,FOR FRONT

 5
98064-60143

RN20,22,25

6.00-14-6,SNOW,FOR FRONT

 5
98063-65144

RN20,22,25

6.50-14-8,WSW.,FOR REAR

 5
42621 - CAP, WHEEL
42621-35050

RN22..RHD

CHROME PLATED

 4
Common parts
42621-35040
42621-35050
42621-35081
42621-35082
42621-35100
