Toyota Hilux RN22 CONTROL SHAFT & CROSSSHAFT

Manufacturers Home
Toyota
EU
HILUX
RN22-JD (1975)
3311 - CONTROL SHAFT & CROSSSHAFT

RN22-JD (1975)

Toyota Hilux

Production May 1975 - Jul 1978

Engine 18R

Transmission 4H MTM

Displacement 2500cc

Power 168 HP (125 kW)

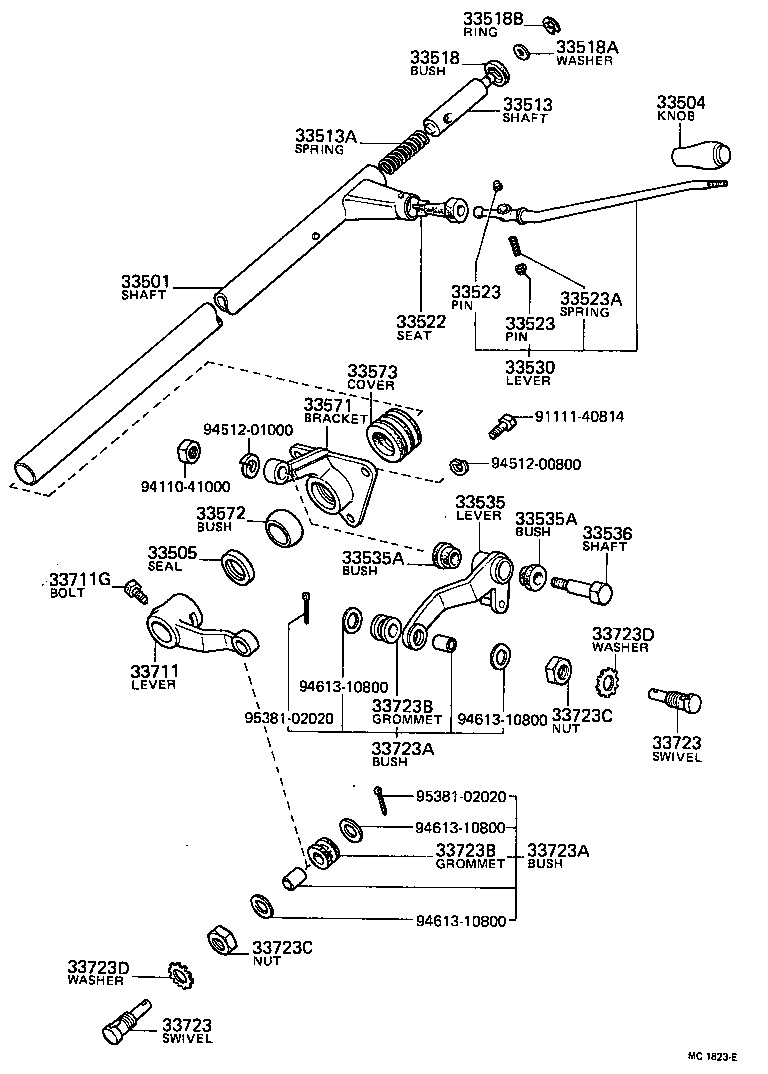

(7205-7807)4H

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33504-30110	RN20,22,25..4H	05/1972 - 07/1978	1
33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33505-30010	RN20,22,25..4H	05/1972 - 07/1978	1
33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER
33513-35030	RN20,22,25..4H	05/1972 - 07/1978	1
33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
90501-14244	RN2#..4H	05/1972 - 10/1972	1
33518 - BUSH, UPPER CONTROL SHAFT PIECE
33518-30040	RN20,22,25..4H	05/1972 - 07/1978	1
33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
90201-08056	RN20,22,25..4H	05/1972 - 07/1978	1
33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
90523-06019	RN20,22,25..4H	05/1972 - 07/1978	1
33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33522-30030	RN20,22,25..4H	05/1972 - 07/1978	1
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523-30010	RN20,22,25..4H	05/1972 - 07/1978	2
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523-30010	RN20,22,25..4H	05/1972 - 07/1978	2
33523A - SPRING, COMPRESSION
90501-04062	RN20,22,25..4H	05/1972 - 07/1978	1
33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33541-39065	RN20,22,25..4H	05/1972 - 07/1978	1
33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535-35060	RN20,22,25..4H	05/1972 - 07/1978	1
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007	RN20,22,25..4H	05/1972 - 07/1978	2
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007	RN20,22,25..4H	05/1972 - 07/1978	2
33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33536-25010	RN20,22,25..4H	05/1972 - 07/1978	1
33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33571-35060	RN20,22,25..4H	05/1972 - 07/1978	1
33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33572-35020	RN20,22,25..4H	05/1972 - 07/1978	1
33573 - COVER, CONTROL SHAFT DUST, LOWER
33577-35010	RN20,22,25..4H	05/1972 - 07/1978	1
33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33527-35060	RN20,22,25..4H	05/1972 - 07/1978	1
33711G - BOLT, CONTROL SHAFT LEVER LOCK
33218-35010	RN20,22,25..4H	05/1972 - 07/1978	1
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-30020	RN20,22,25..4H	05/1972 - 07/1978	2
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-30020	RN20,22,25..4H	05/1972 - 07/1978	2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90999-99017	RN20,22,25..4H	05/1972 - 07/1978	2
33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT)
90999-99017	RN20,22,25..4H	05/1972 - 07/1978	2
33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT)
90480-17177	RN20,22,25..4H	05/1972 - 07/1978	2
33723B - GROMMET (FOR COLUMN SHIFT CONTROL SHAFT)
90480-17177	RN20,22,25..4H	05/1972 - 07/1978	2
33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING)
90170-17141	RN20,22,25..4H	05/1972 - 07/1978	2
33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING)
90170-17141	RN20,22,25..4H	05/1972 - 07/1978	2
33723D - WASHER, TOOTHED (FOR CONTROL ROD SETTING)
90205-17001	RN20,22,25..4H	05/1972 - 07/1978	2
33723D - WASHER, TOOTHED (FOR CONTROL ROD SETTING)
90205-17001	RN20,22,25..4H	05/1972 - 07/1978	2
Common parts
91111-40814
94110-41000
94512-00800
94512-01000
94613-10800
95381-02020

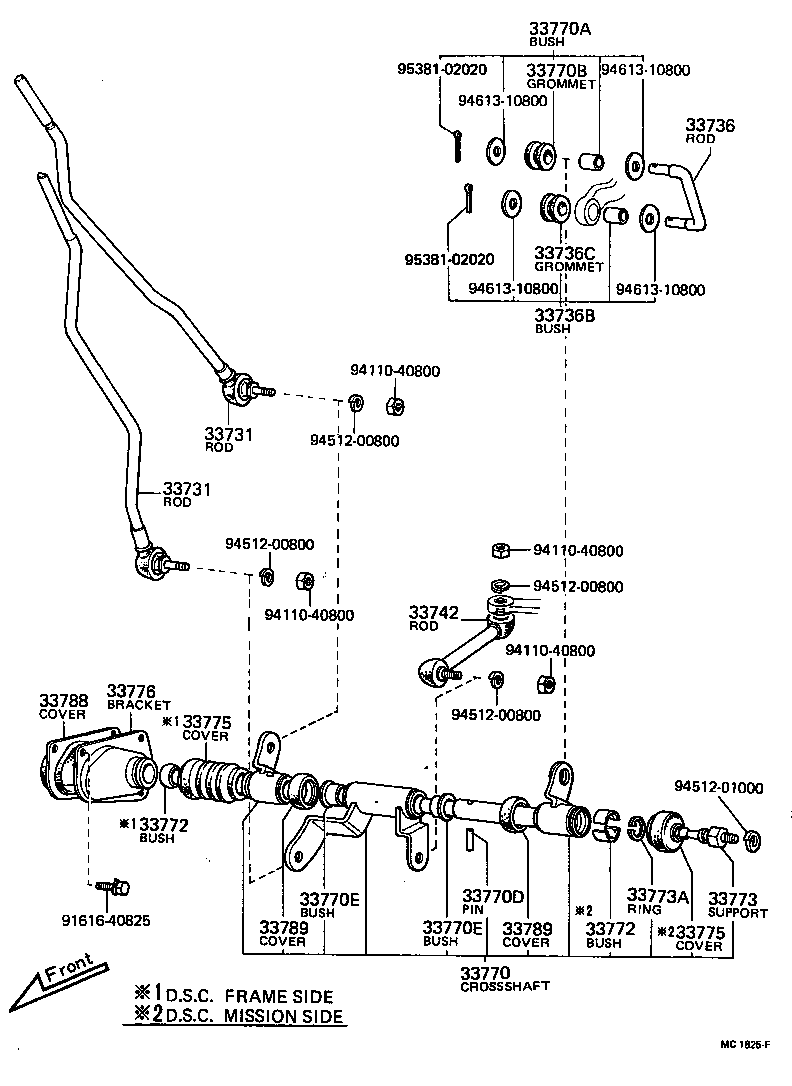

(7205-7807)RN22..4H

Click highlighted areas on diagram

Part #	Description	Period	Qty
33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33720-35080	RN22..4H	05/1975 - 07/1978	1
33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33720-35080	RN22..4H	05/1975 - 07/1978	1
33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33777-35010	RN22..4H	05/1975 - 07/1978	1
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90999-99017	RN20,22,25..4H	05/1972 - 07/1978	1
33736C - GROMMET(FOR GEAR SELECTING ROD, NO.2)
90480-17177	RN20,22,25..4H	05/1972 - 07/1978	1
33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)
33702-20010	RN20,22,25..4H	05/1972 - 07/1978	1
33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT)
33770-35040	RN22..4H	05/1975 - 07/1978	1
33770A - BUSH (FOR CROSS SHAFT)
90999-99017	RN20,22,25..4H	05/1972 - 07/1978	1
33770B - GROMET (FOR COLUMN SHIFT CROSS SHAFT)
90480-17177	RN20,22,25..4H	05/1972 - 07/1978	1
33770D - PIN (FOR CROSS SHAFT)
90256-06001	RN22..4H	05/1975 - 07/1978	1
33770E - BUSH (FOR CROSS SHAFT)
90386-13007	RN22..4H	05/1975 - 07/1978	1
33770E - BUSH (FOR CROSS SHAFT)
90386-13007	RN22..4H	05/1975 - 07/1978	1
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-35011	RN20,22,25..4H FRAME SIDE	05/1972 - 07/1978	2
33772-20010	RN20,22,25..4H MISSION SIDE	05/1972 - 07/1978	4
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-35011	RN20,22,25..4H FRAME SIDE	05/1972 - 07/1978	2
33772-20010	RN20,22,25..4H MISSION SIDE	05/1972 - 07/1978	4
33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)
33773-20011	RN20,22,25..4H	05/1972 - 07/1978	2
33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP)
96151-01600	RN20,22,25..4H	05/1972 - 07/1978	2
33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)
33775-35020	RN22..4H FRAME SIDE	05/1975 - 07/1978	1
33775-20020	RN20,22,25..4H MISSION SIDE	05/1972 - 07/1978	2
33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)
33775-35020	RN22..4H FRAME SIDE	05/1975 - 07/1978	1
33775-20020	RN20,22,25..4H MISSION SIDE	05/1972 - 07/1978	2
33776 - BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)
33776-35040	RN22..4H	05/1975 - 07/1978	1
33788 - COVER, CROSS SHAFT(FOR COLUMN SHIFT)
33788-35020	RN20,22,25..4H	05/1972 - 07/1978	1
33789 - COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT)
33789-12010	RN22..4H	05/1975 - 07/1978	1
33789 - COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT)
33789-12010	RN22..4H	05/1975 - 07/1978	1
Common parts
91616-40825
94110-40800
94512-00800
94512-01000
94613-10800
95381-02020

RN22-JD (1975)

(7205-7807)4H

(7205-7807)RN22..4H
