RN22-JD (1975)
Toyota Hilux
Production
May 1975
-
Jul 1978
Engine
18R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)MTM

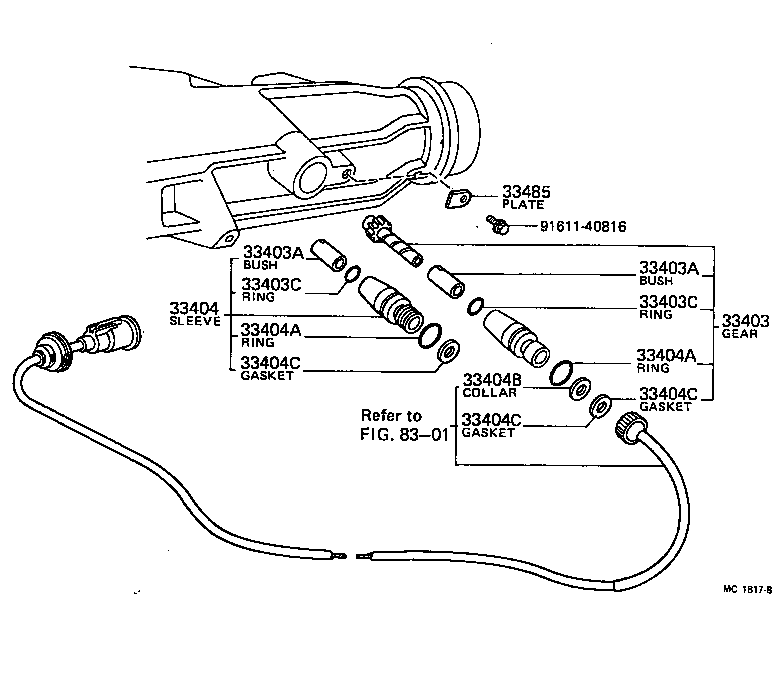

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE) | ||||
| 90386-09078 |
RN2#..MTM |
1 | ||
| 33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE) | ||||
| 90386-09078 |
RN2#..MTM |
1 | ||
| 33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT) | ||||
| 90301-09017 |
RN2#..MTM |
1 | ||
| 33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT) | ||||
| 90301-09017 |
RN2#..MTM |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-39016 |
RN2#..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
RN2#..MTM |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90301-18018 |
RN2#..MTM |
1 | ||
| 33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM) | ||||
| 90201-07069 |
RN2#..MTM |
1 | ||
| 33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM) | ||||
| 90303-06017 |
RN2#..MTM |
1 | ||
| 33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM) | ||||
| 90303-06017 |
RN2#..MTM |
1 | ||
| 33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM) | ||||
| 90303-06017 |
RN2#..MTM |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30010 |
RN2#..MTM |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| Linked diagrams | ||||
| 8301 | ||||
