RN22-JD (1975)
Toyota Hilux
Production
May 1975
-
Jul 1978
Engine
18R
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)

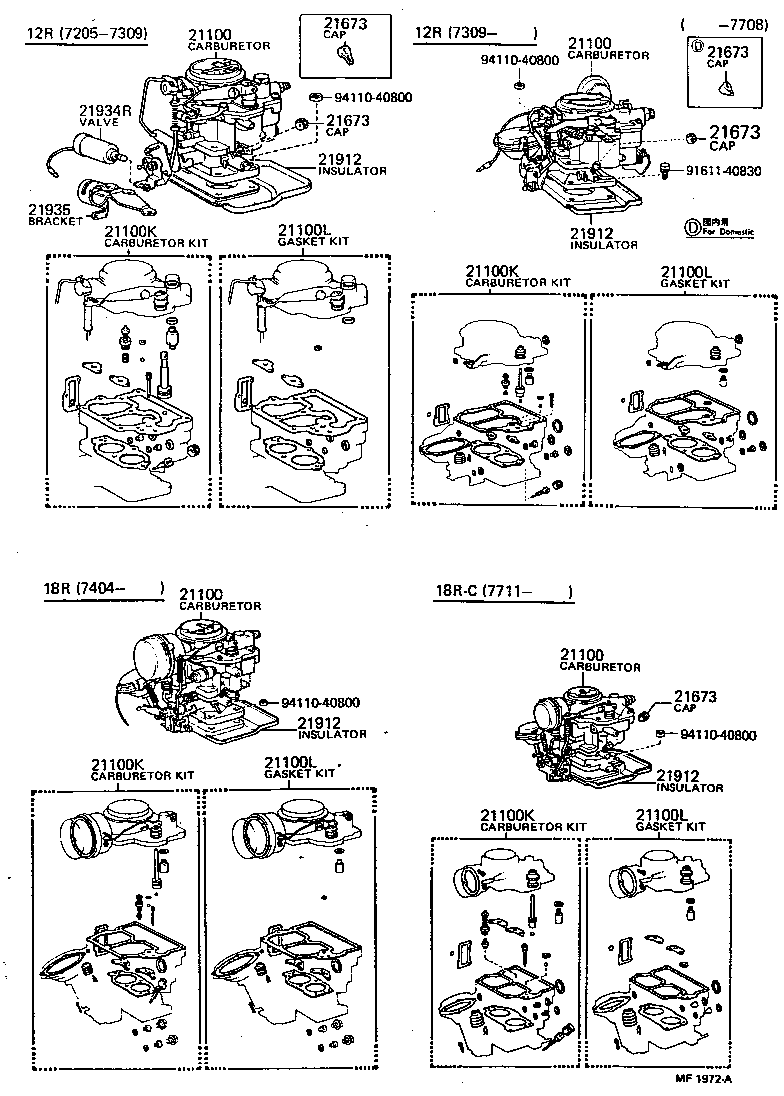

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21100 - CARBURETOR ASSY | ||||
| 21100-34311 |
18R..RN22 |
1 | ||
| 21100-34460 |
18R..RN22..RHD |
1 | ||
| 21100-34430 |
18R..RN22,27 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-34311 |
18R..RN22 |
1 | ||
| 21100-34460 |
18R..RN22..RHD |
1 | ||
| 21100-34430 |
18R..RN22,27 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-34311 |
18R..RN22 |
1 | ||
| 21100-34460 |
18R..RN22..RHD |
1 | ||
| 21100-34430 |
18R..RN22,27 |
1 | ||
| 21100 - CARBURETOR ASSY | ||||
| 21100-34311 |
18R..RN22 |
1 | ||
| 21100-34460 |
18R..RN22..RHD |
1 | ||
| 21100-34430 |
18R..RN22,27 |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-34210 |
18R..RN22,27 |
1 | ||
| 04211-34130 |
18R..RN22 |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-34210 |
18R..RN22,27 |
1 | ||
| 04211-34130 |
18R..RN22 |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-34210 |
18R..RN22,27 |
1 | ||
| 04211-34130 |
18R..RN22 |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-34210 |
18R..RN22,27 |
1 | ||
| 04211-34130 |
18R..RN22 |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-36010 |
18R..RN22,27 |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-36010 |
18R..RN22,27 |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-36010 |
18R..RN22,27 |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-36010 |
18R..RN22,27 |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-34062 |
18R..RN22,27 |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-34062 |
18R..RN22,27 |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-34062 |
18R..RN22,27 |
1 | ||
| 21912 - INSULATOR, CARBURETOR HEAT | ||||
| 21912-34062 |
18R..RN22,27 |
1 | ||
| Common parts | ||||
| 91611-40830 | ||||
| 94110-40800 | ||||
