RN22-HD (1974)

Toyota Hilux

Production Apr 1974 - Jul 1978
Engine 18R
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

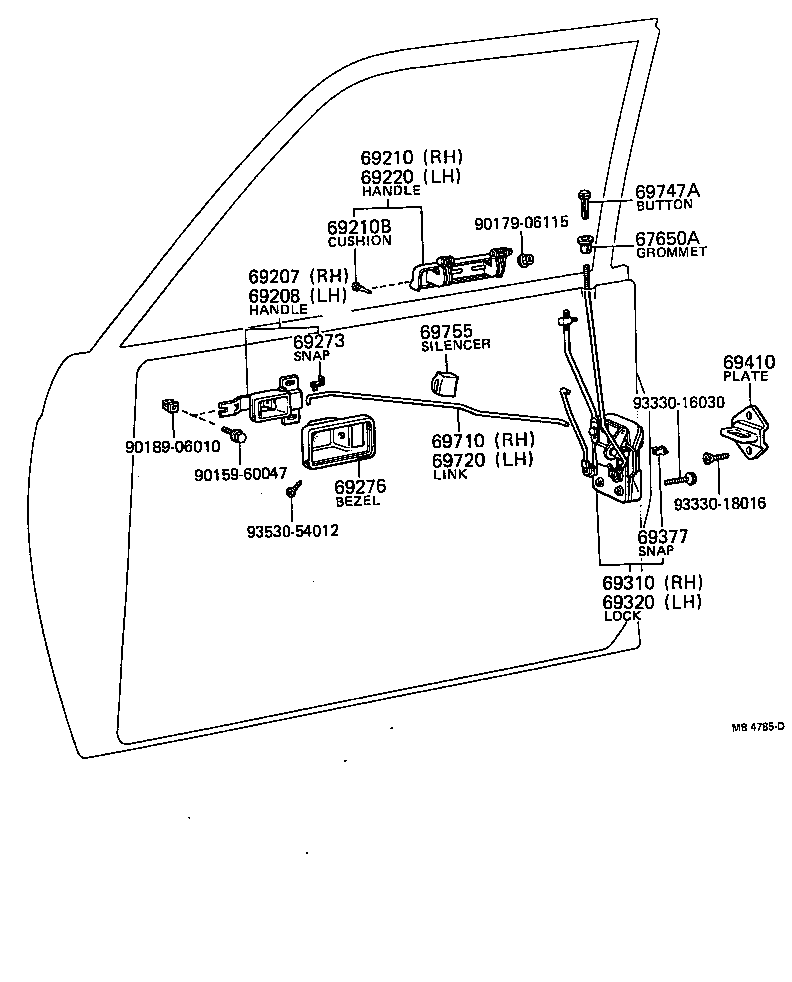

Click highlighted areas on diagram

diagram 67650A 69207 69208 69210 69210B 69220 69273 69276 69310 69320 69377 69410 69710 69720 69747A 69755 9015960047 9017906115 9018906010 9333016030 9333018016 9353054012
Part # Description Qty Price
67650A - GROMMET(FOR DOOR PANEL LOCK BUTTON)
90480-10102

RN2#

 2
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1204001

RN2#

BLACK,BLACK

 1
69207-20030

RN2#

 1
69205-1204006

RN2#

BROWN,BROWN

 1
69207-22020

RN2#

 1
69205-8910304

RN2#

BLUE,BLUE

 1
69205-8910301

RN2#

BLACK,BLACK

 1
69205-8910306

RN2#

BROWN,BROWN

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69208-22020

RN2#

 1
69206-1204006

RN2#

BROWN,BROWN

 1
69206-1204001

RN2#

BLACK,BLACK

 1
69206-8910304

RN2#

BLUE,BLUE

 1
69208-20020

RN2#

 1
69206-8910301

RN2#

BLACK,BLACK

 1
69206-8910306

RN2#

BROWN,BROWN

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-89104

RN20,22,25

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03062

RN2#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-89104

RN20,22,25

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69273-30020

RN2#

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69276-22020

RN2#

 2
69276-1001201

RN2#

BLACK,BLACK

 2
69276-1001206

RN2#

BROWN,BROWN

 2
69276-1001204

RN2#

BLUE,BLUE

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-89106

RN2#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-89106

RN2#

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

RN2#

 6
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-12020

RN2#

 2
69410-89102

RN2#

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69715-89104

RN2#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69716-89104

RN2#

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69747-30012

RN2#

 2
69747-20020

RN2#

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-89101

RN2#

 2
69759-12011

RN2#

 2
69759-20010

RN2#

 2
Common parts
90159-60047
90179-06115
90189-06010
93330-16030
93330-18016
93530-54012
