RN22-HD (1974)
Toyota Hilux
Production
Apr 1974
-
Jul 1978
Engine
18R
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)RHD

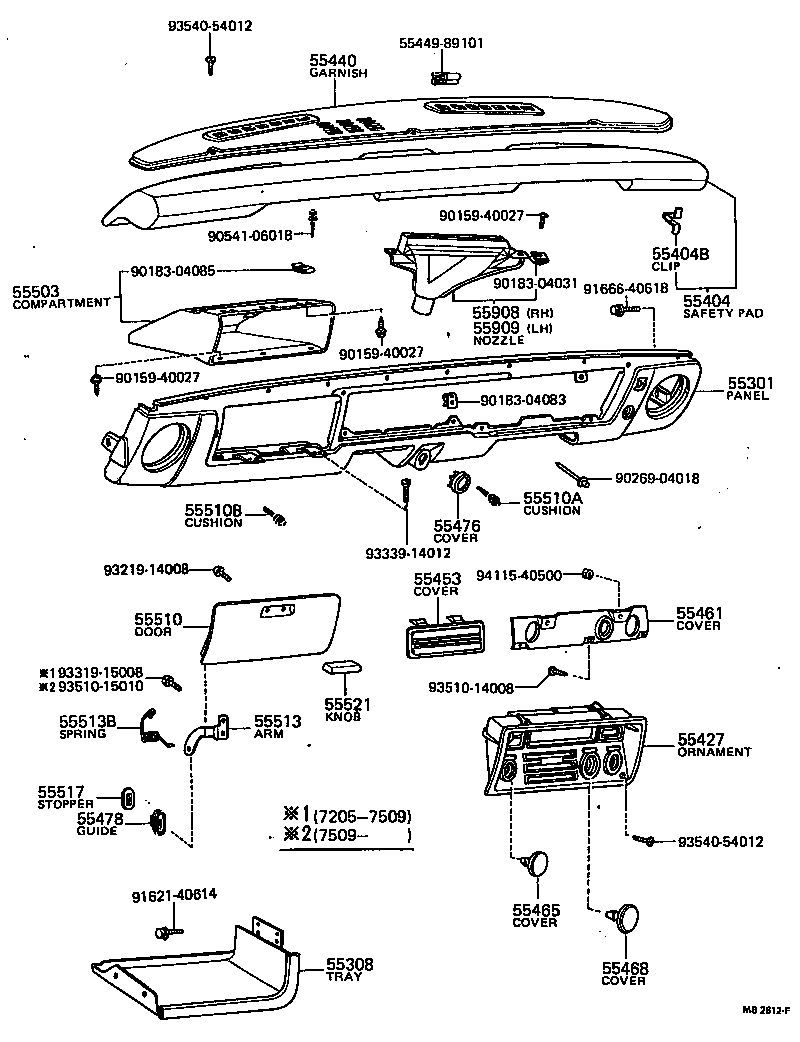

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-89107 |
RN2#..RHD |
1 | ||
| 55301-89109 |
RN2#..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55308-89104 |
RN2#..RHD |
1 | ||
| 55308-89102 |
RN2#..RHD |
1 | ||
| 55308-89106 |
RN22,27..RHD |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-8910706 |
RN2# BROWN,BROWN |
1 | ||
| 55404-8910704 |
RN2# BLUE,BLUE |
1 | ||
| 55404-8910701 |
RN2# BLACK,BLACK |
1 | ||
| 55404B - CLIP, SAFETY PAD SET | ||||
| 75395-30010 |
RN2# |
10 | ||
| 75395-30010 |
RN2# |
6 | ||
| 55427 - ORNAMENT, INSTRUMENT PANEL, CENTER | ||||
| 55416-89102 |
RN2# FOR W/HEATER |
1 | ||
| 55416-89106 |
RN22,27..RHD FOR W/HEATER |
1 | ||
| 55440 - GARNISH, INSTRUMENT PANEL, CENTER | ||||
| 55443-89101 |
RN2# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-89103 |
RN22..RHD |
1 | ||
| 55465 - COVER, INSTRUMENT HOLE | ||||
| 55465-89101 |
RN2# |
1 | ||
| 55478 - GUIDE, GLOVE COMPARTMENT DOOR CHECK ARM HOLE | ||||
| 55478-12011 |
RN2# |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55503-89102 |
RN2# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55501-89103 |
RN2# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05080 |
RN2# |
1 | ||
| 55510B - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-06108 |
RN2# |
1 | ||
| 55513 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55513-89103 |
RN2#..RHD |
1 | ||
| 55513B - SPRING, TORSION(FOR GLOVE COMPARTMENT DOOR CHECK ARM) | ||||
| 90508-29348 |
RN2#..RHD |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-20010 |
RN2# |
1 | ||
| 55521 - KNOB, GLOVE COMPARTMENT DOOR | ||||
| 55521-12012 |
RN2# |
1 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55951-89102 |
RN22,27..RHD |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55952-89102 |
RN22,27..RHD |
1 | ||
| Common parts | ||||
| 55449-89101 | ||||
| 90159-40027 | ||||
| 90183-04031 | ||||
| 90183-04083 | ||||
| 90183-04085 | ||||
| 90269-04018 | ||||
| 90541-06018 | ||||
| 91621-40614 | ||||
| 91666-40618 | ||||
| 93219-14008 | ||||
| 93319-15008 | ||||
| 93339-14012 | ||||
| 93510-14008 | ||||
| 93510-15010 | ||||
| 93540-54012 | ||||
| 94115-40500 | ||||
